SUNGMUN SDR-10S-TR 10mm x 10mm Rotary DIP Switch - IP67 Waterproof, 4-16 Position

Here's a clear breakdown of the key specifications and ordering information for the SUNGMUN SDR-10S-TR Rotary DIP Switch based on the provided data:

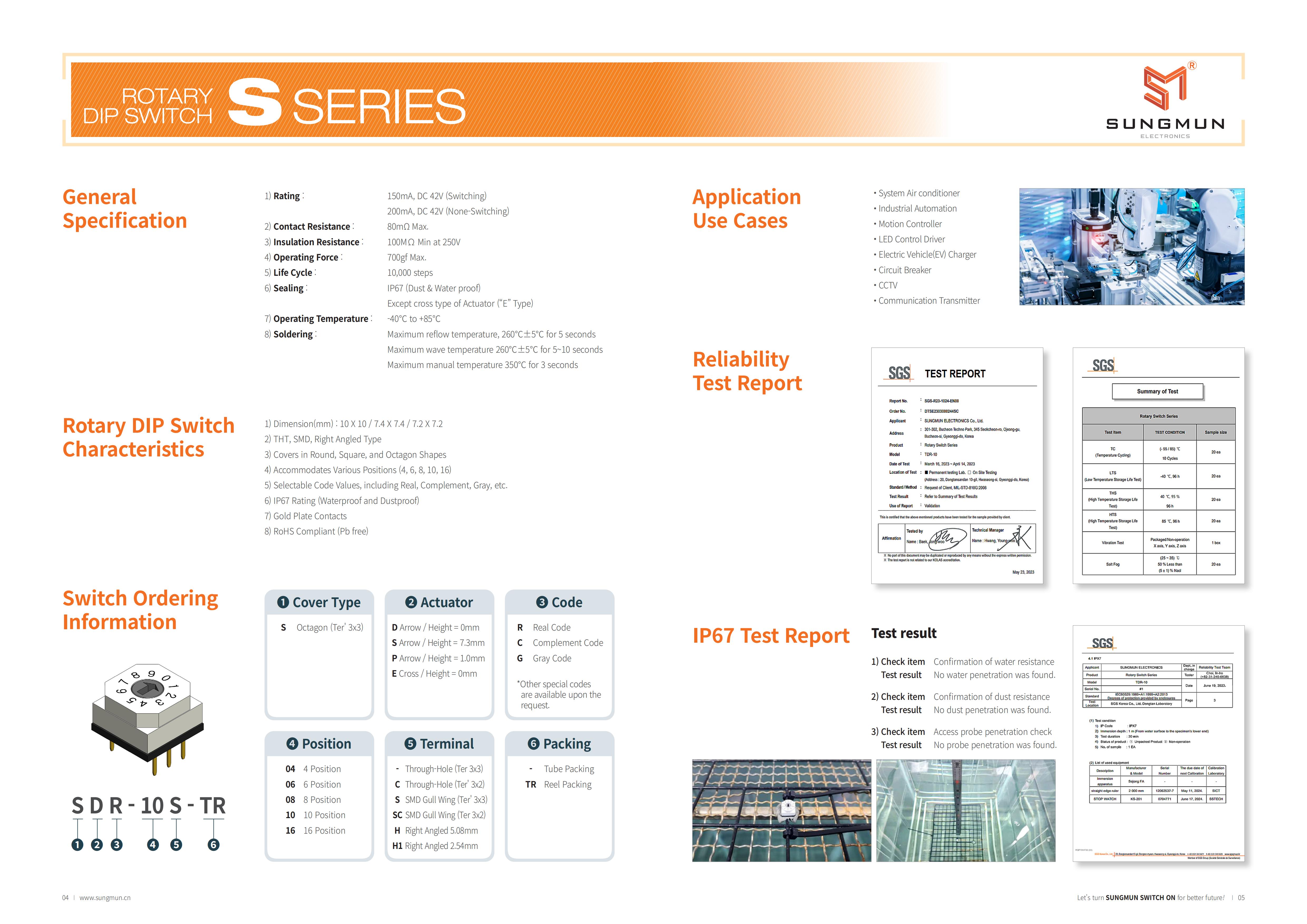

Key Specifications (SDR-10S-TR)

Size: 10mm x 10mm (Body: 7.4mm x 7.4mm, Actuator Area: 7.2mm x 7.2m

Electrical Rating:

Switching: 150mA @ DC 42V

Non-Switching: 200mA @ DC 42V

Contact Resistance: 80mΩ Max.

Insulation Resistance: 100MΩ Min. @ 250V DC

Operating Force: 700gf Max.

Life Cycle: 10,000 steps

Sealing (IP Rating): IP67 (Dustproof & Waterproof) *(Except "E" Cross Actuator Type)*

Operating Temperature: -40°C to +85°C

Soldering Specifications:

Max Reflow Temp: 260°C ±5°C for 5 sec

Max Wave Temp: 260°C ±5°C for 5-10 sec

Max Manual Temp: 350°C for 3 sec

Contact Material: Gold Plated

Compliance: RoHS Compliant (Pb-Free)

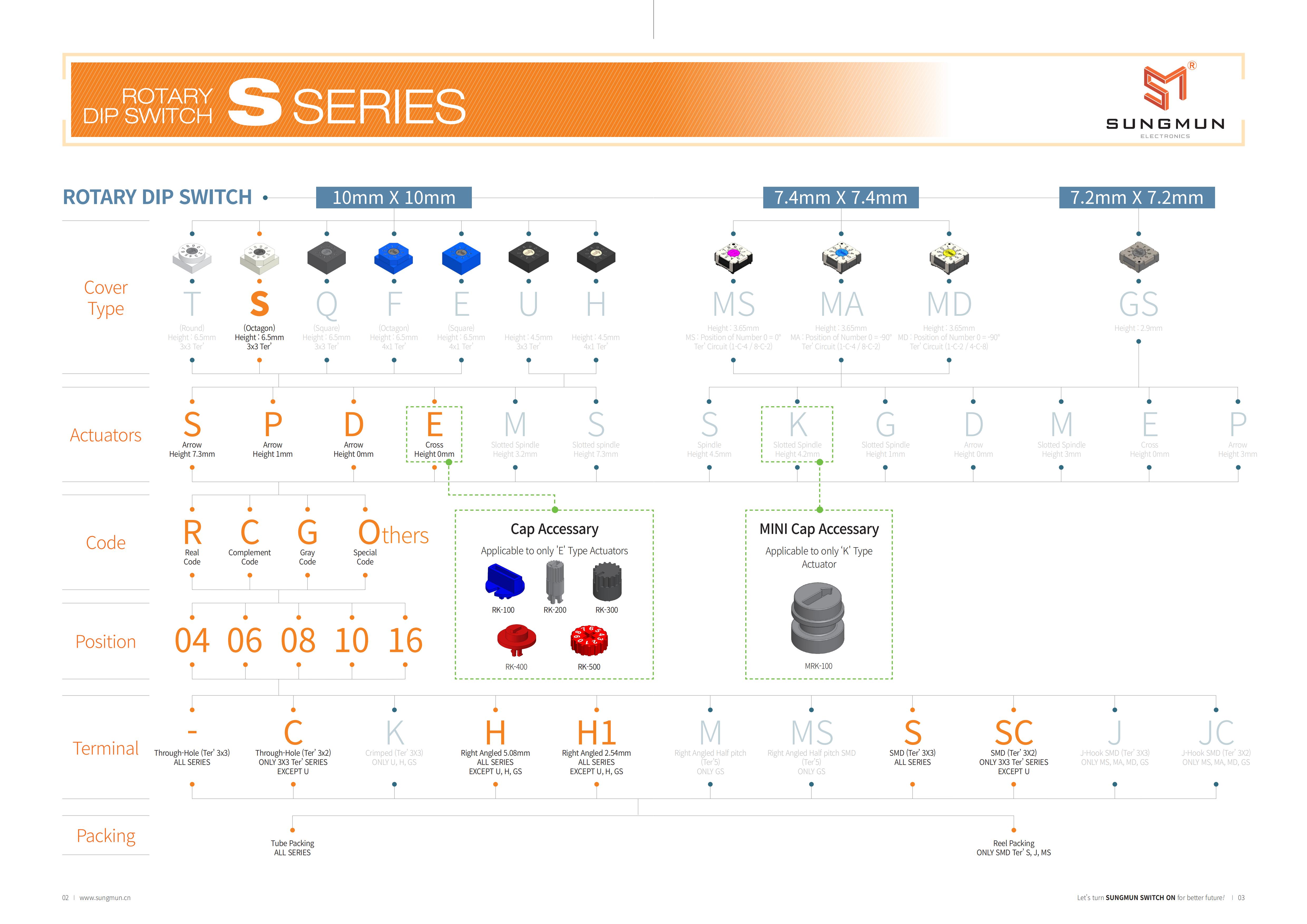

Ordering Information (Selectable Options)

Number of Positions: 4, 6, 8, 10, 16

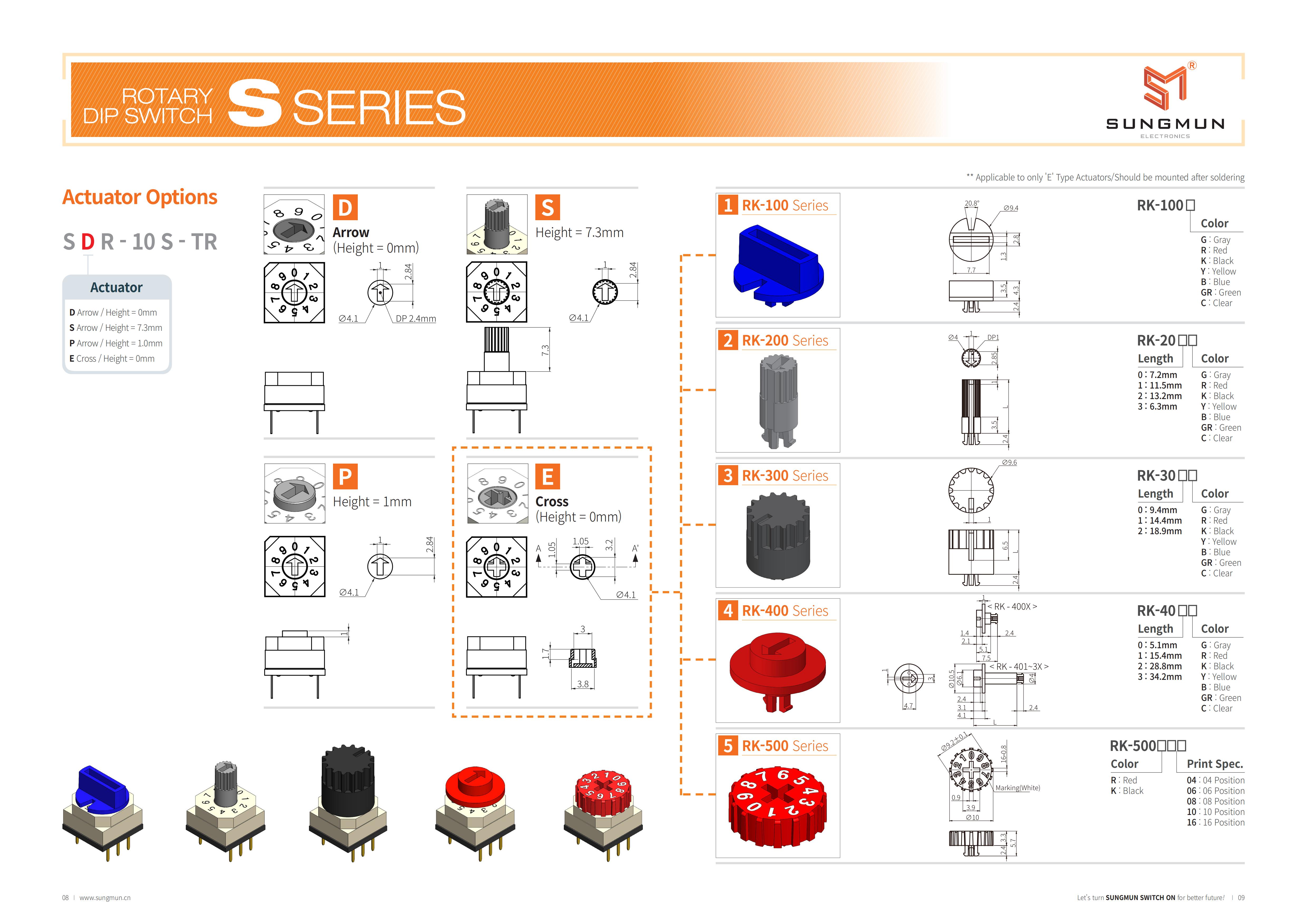

Actuator Type & Height:

D: Arrow / Height = 0.0mm

S: Arrow / Height = 7.3mm

P: Arrow / Height = 1.0mm

E: Cross / Height = 0.0mm *(Not IP67 Rated)*

Cover Shape: Round, Square, Octagon

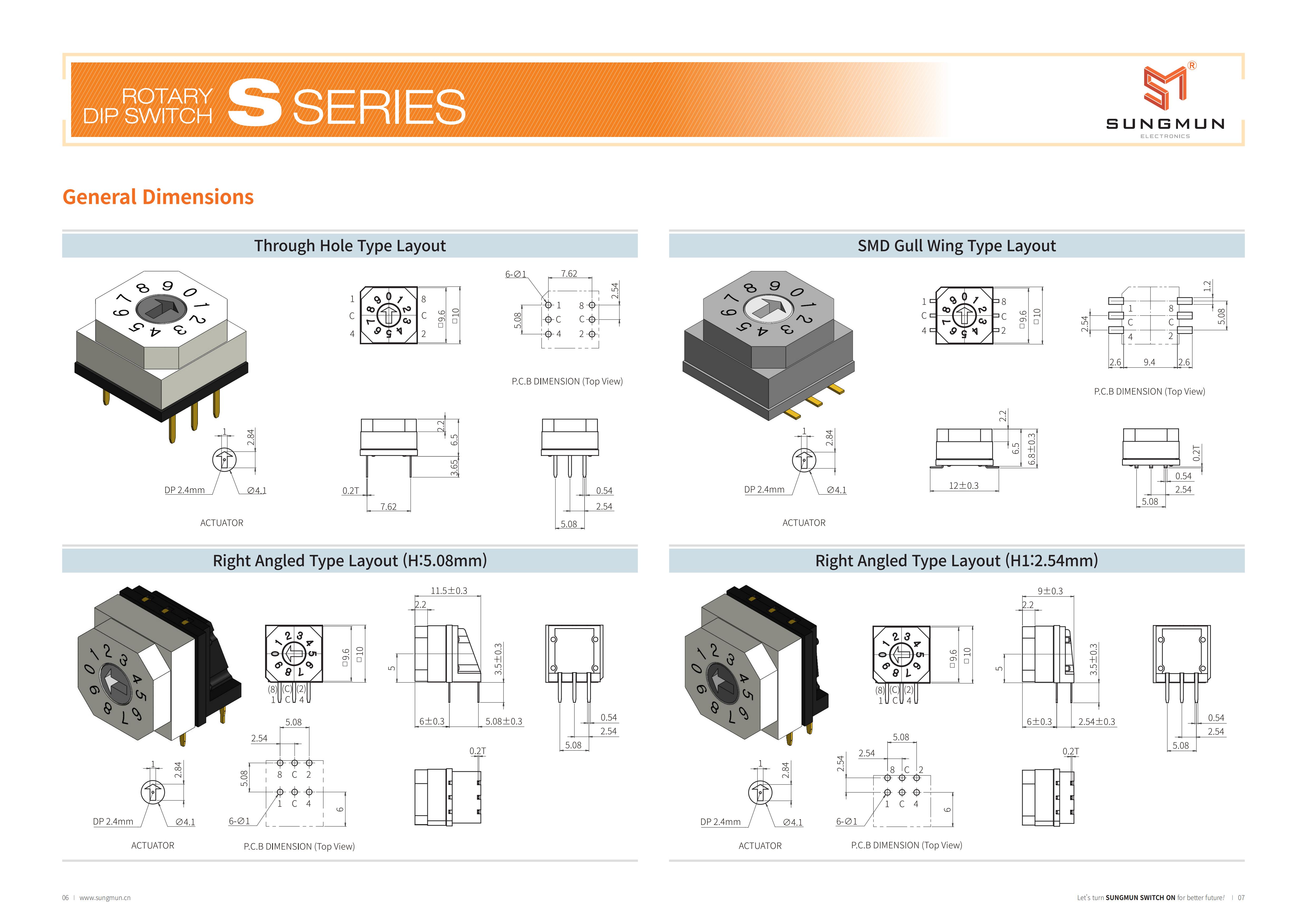

Terminal Type:

C: Through-Hole (3x2 Terminal Grid)

(Blank): Through-Hole (3x3 Terminal Grid) *[Implied by SDR-10S-TR structure]*

S: SMD Gull Wing (3x3 Terminal Grid)

SC: SMD Gull Wing (3x2 Terminal Grid)

H: Right Angled (5.08mm Pitch Height)

H1: Right Angled (2.54mm Pitch Height)

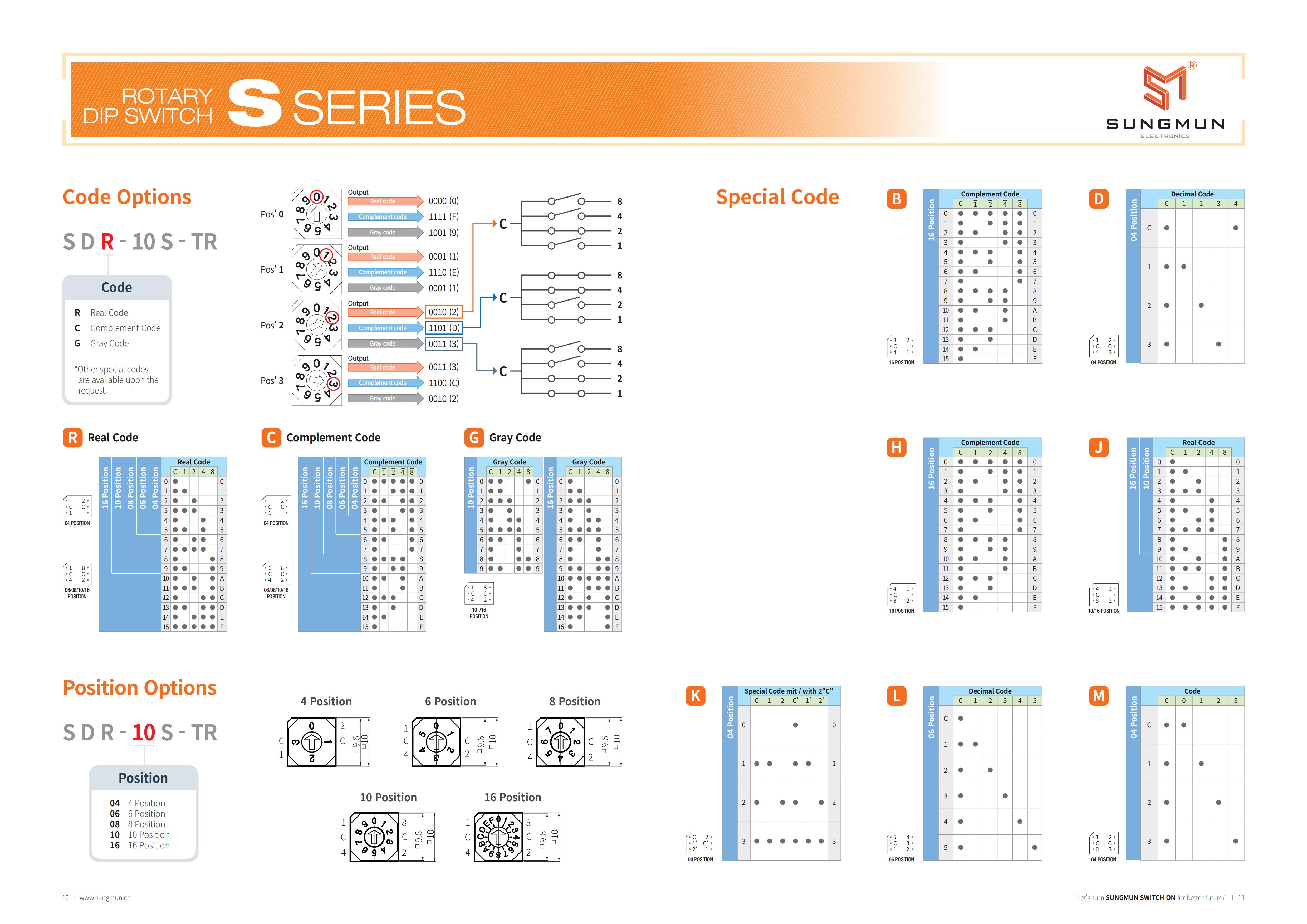

Encoding Code: Real (R), Complement (C), Gray (G), Others (On Request)

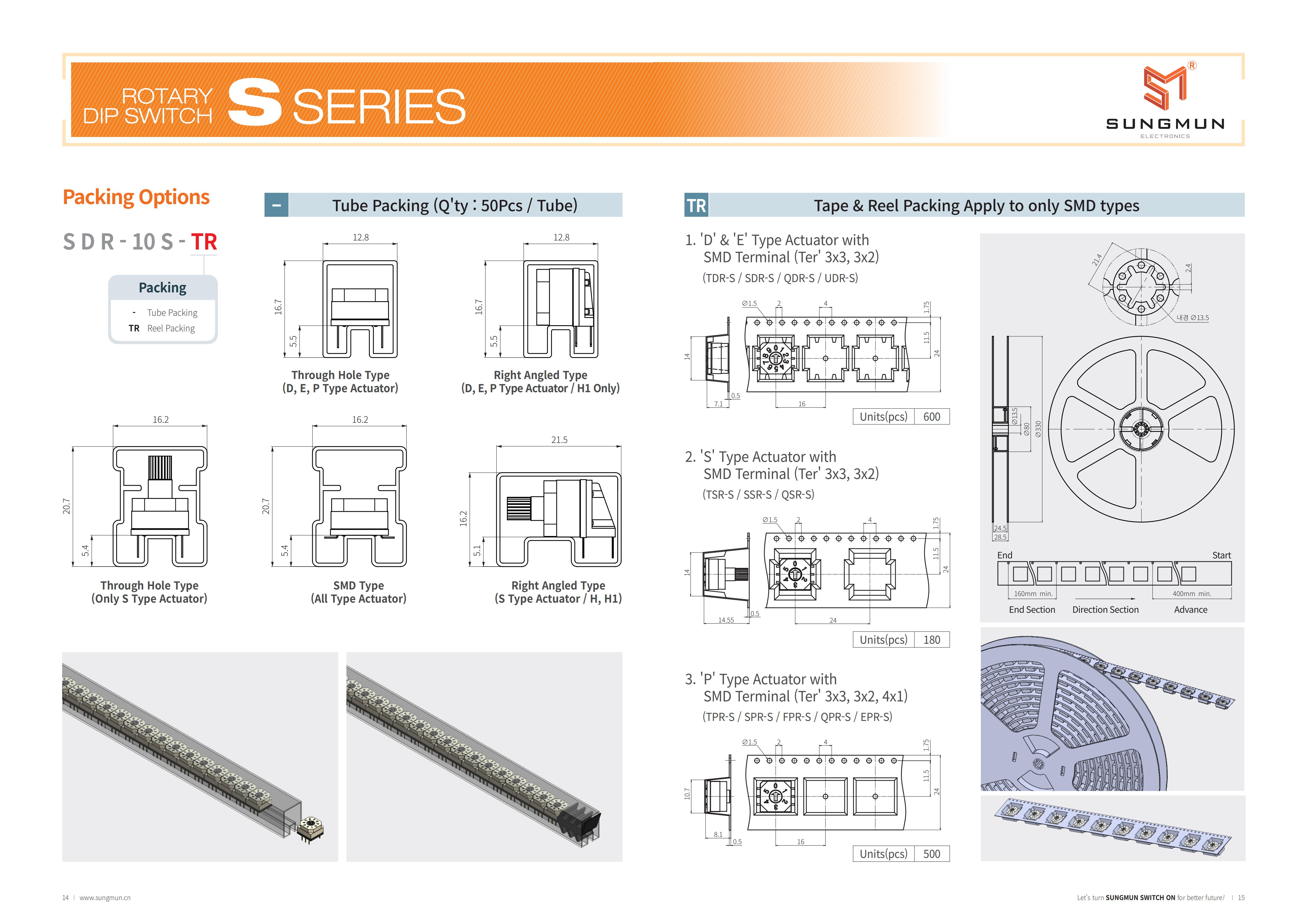

Packing:

(Blank): Tube Packing

TR: Reel Packing (Tape & Reel)

Key Features

Compact Size: 10x10mm footprint.

High Reliability: Gold contacts, 10,000 cycle life.

Robust Environmental Protection: IP67 rated (except Cross actuator).

Versatile Mounting: THT, SMD (Gull Wing), Right-Angle THT options.

Multiple Configurations: Choice of positions (4-16), actuator styles/heights, cover shapes, and encoding codes.

Lead-Free Manufacturing Compatible: Withstands standard reflow/wave profiles.

Confirmed IP67 Test Results

Water Resistance: No water penetration found.

Dust Resistance: No dust penetration found.

Access Probe Penetration Check: No probe penetration found (verifies solid object protection).

Typical Applications

System Air Conditioning

Industrial Automation

Motion Controllers

LED Control Drivers

Electric Vehicle (EV) Chargers

Circuit Breakers

CCTV Systems

Communication Transmitters
