Product application portfolio in the field of industrial automation

Thank you for your continued support and trust in our company's products.

To further enhance market coverage and enrich the diversity of our product offerings, we are now rolling out a cross-selling strategy. In the field of industrial automation, several of our products can be applied in synergy, including:

• Rotary DIP switches

• Slide switches

• Push-button switches

This application portfolio is provided for your reference during customer negotiations. This combined solution can help customers achieve efficient control and an optimized operational experience in equipment design or system integration. You are welcome to utilize this content for online promotions or offline recommendations, making it easier to quickly associate suitable products when engaging with relevant customers and jointly explore new business opportunities.

This application portfolio is provided for your reference during customer negotiations. This combined solution can help customers achieve efficient control and an optimized operational experience in equipment design or system integration. You are welcome to utilize this content for online promotions or offline recommendations, making it easier to quickly associate suitable products when engaging with relevant customers and jointly explore new business opportunities.

This application portfolio is provided for your reference during customer negotiations. The combined solution helps customers achieve efficient control and an optimized operational experience in equipment design or system integration. You are welcome to use this content for online promotions or offline recommendations, making it easier to quickly associate suitable products when engaging with relevant customers and jointly explore new business opportunities.

Modern industrial automation systems are evolving toward greater flexibility and intelligence. As the "nerve endings" of these systems, the reliability, diversity, and synergy of physical switches directly determine the operational efficiency and safety level of equipment. SUNGMUN Electronics, an established South Korean electronic component manufacturer, offers a comprehensive and diverse portfolio of switches, providing a solid foundation for engineers to build modular human-machine interfaces.

SUNGMUN’s rotary encoder switch series (such as MSDR, MSSR, MSKR, MADR, MDDR, TDR, and FDR) are ideal for digital input and fine parameter adjustment.

Application Examples:

PLC and I/O Node Address Setting: Use 16-bit encoder switches (e.g., TDR-16 or FDR-16) to assign unique device identifiers in complex distributed I/O systems, preventing communication conflicts.

Motion Controller Parameter Presets: In multi-axis motion control, employ MADR series encoder switches to preset parameters such as speed, acceleration, or position offset.

Robot Drive Unit Code Input: Facilitate manual input of program numbers or fault codes for on-site debugging and maintenance.

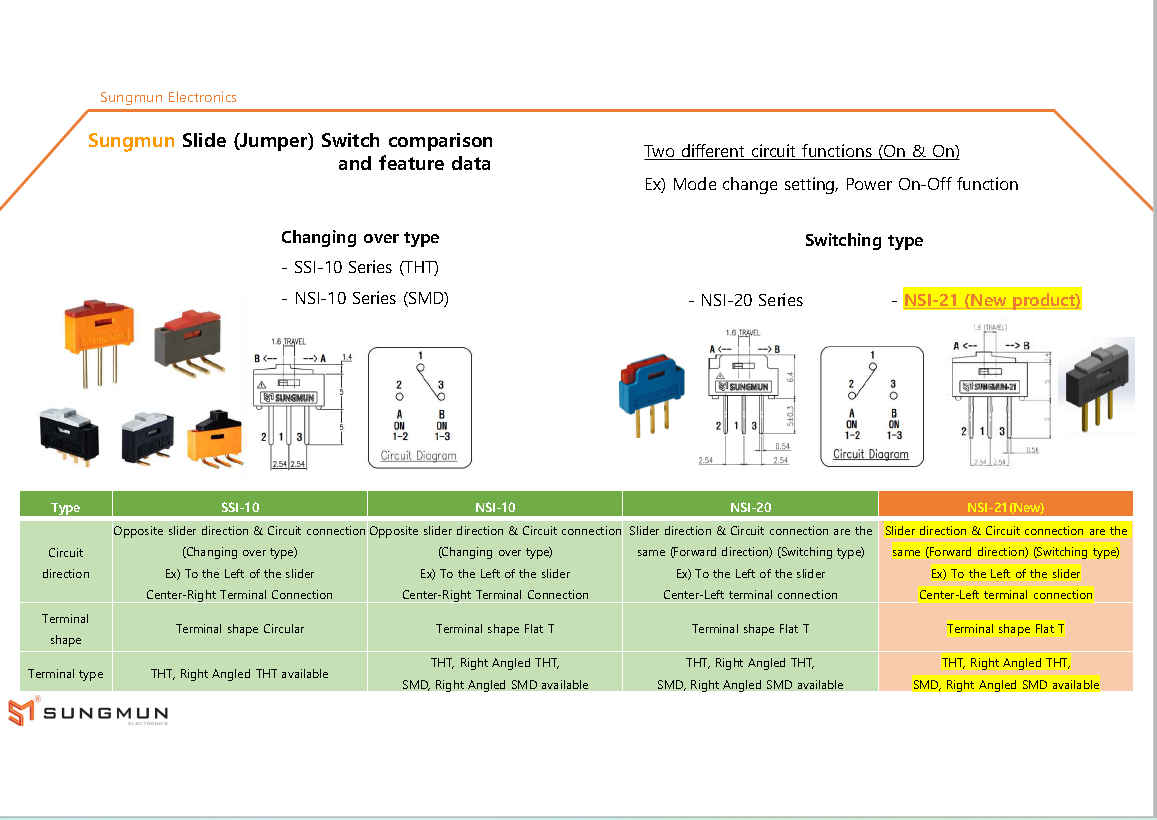

SUNGMUN’s slide switches (e.g., SSI-10, NSI-10, NSI-20, NSI-21) deliver clear status indication and an operation experience designed to prevent accidental activation.

The SSI and NSI series may differ in rated current, dimensions, and terminal types. For example, the NSI-20/21 models likely feature a DPDT (Double-Pole Double-Throw) configuration, offering more complex circuit switching capabilities.

Synergistic Applications of SUNGMUN Electronics' Full Switch Series in Industrial Automation

Q: How to set the I/O node address for a PLC?

A: We recommend using TDR-16 or FDR-16 rotary encoder switches. The 16-bit binary encoding is sufficient for addressing requirements in most fieldbus systems. For enhanced noise immunity, models with an "H" suffix (e.g., TDR-16H) are available—these typically offer higher torque and help prevent accidental actuation.

Q: How to reliably switch equipment operation modes?

A: The NSI-20 or NSI-21 slide switches are recommended. These models are typically configured as DPDT switches, allowing simultaneous switching of control signals and indicator circuits. This enables complete and safe mode transitions, such as "Local/Remote" or "Auto/Manual".

Q: Which switch is suitable for frequently adjusted speed parameters?

A: The MSDR-10S or MSSR-10 series rotary encoder switches are ideal. With 10-bit resolution, they support speed setting values from 0 to 1023 and provide smooth operation, making them well-suited for frequent adjustments.

Q: What button is recommended for emergency stop reset and manual testing?

A: The SP series miniature push-button switches are suggested. Red buttons can be used for emergency stop reset, while green or black buttons are suitable for manual triggering/testing functions. Their versatile mounting options make them ideal for high-density panel layouts.

     SUNGMUN Electronics provides a complete series of switch solutions covering everything from setting and switching to operation. Understanding the characteristics of each model will help you quickly select the most suitable switch for automation equipment, enhancing both device stability and operability. For detailed specification documents, please search the "SUNGMUN official website" or contact our domestic distributor, Shen Zigeng.

       For this market application portfolio, we have specially designed an application diagram for customer reference during design. This integrated solution helps customers achieve efficient control and an optimized operational experience in equipment design or system integration.

       You are welcome to use this content in your design recommendations, making it easier to quickly associate suitable products when engaging with relevant customers and jointly explore new business opportunities. Should you have any questions or require support, please feel free to contact us at any time.
