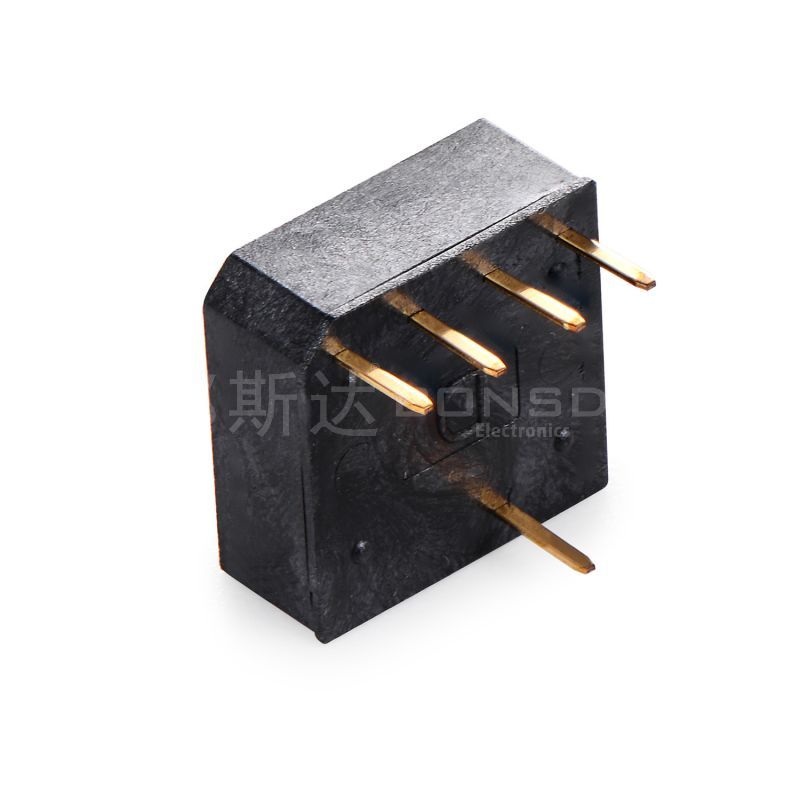

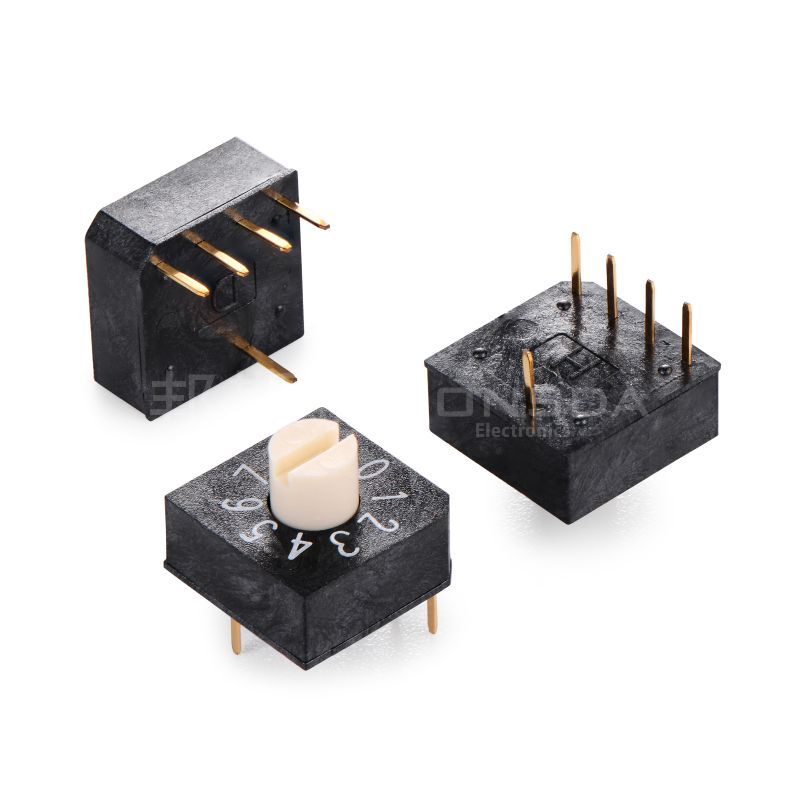

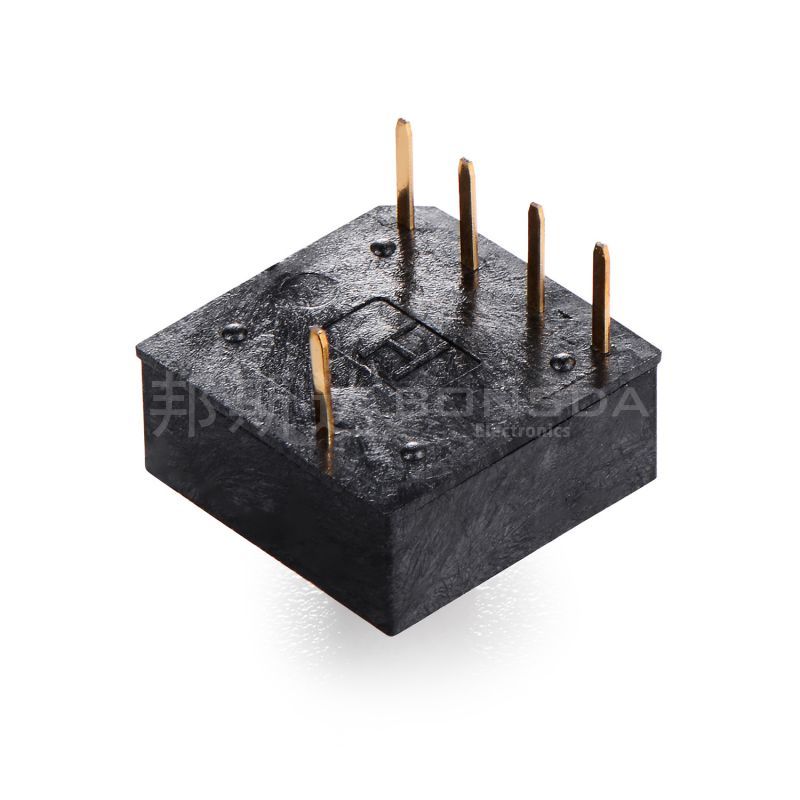

10 * 10 Rotating Encoding Switch Black Base 4 * 1 Vertical Plug in Authorization Zigeng Agent
-Ultra thin size high-density installation
-4, 10, 16 various gears
-THT, SMD, Angled various foot types
-IP67 (waterproof, dustproof)
-Compliant with RoHS standards
-High reliability gold-plated contacts
1. Model: HAMR-10
2. Gear: 0-9 gears

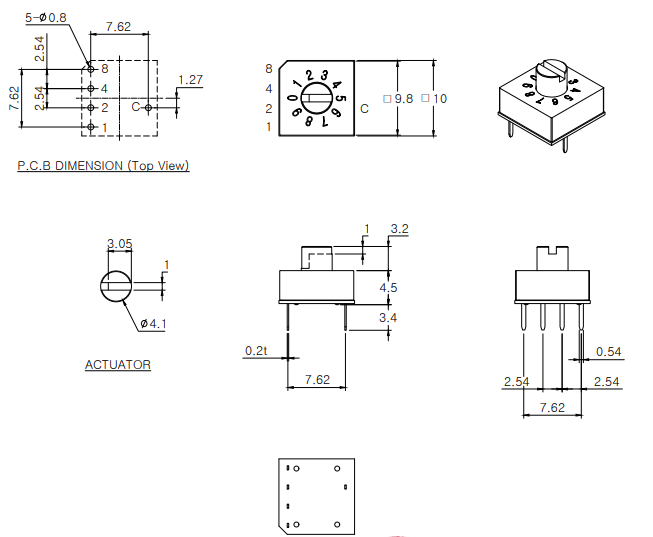

3. Specification: 10mm * 10mm
4. Spacing: 2.54mm
5. Foot position: 4 * 1
6. Packaging: Vertical plug-in with handle 3.2mm and notch
7. Origin: Authorized agent of SUNGMUN brand in South Korea.
8. Lifespan: 10000 cycles.
9. Function: HAMR-10 rotary switch, users can rotate the shaft handle to the desired end position, which can reflect the output value of BCD coding.
Application scope: Mainly used for most industrial equipment such as facial recognition temperature measurement all-in-one machine, AI computing box, digital sentry, USB camera, wireless keyboard with touchpad, etc.
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10mm*10mm |  |
25mA,Dc 12v 25mA,Dc24v | 100mΩ | 10000 steps | 700gf |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
