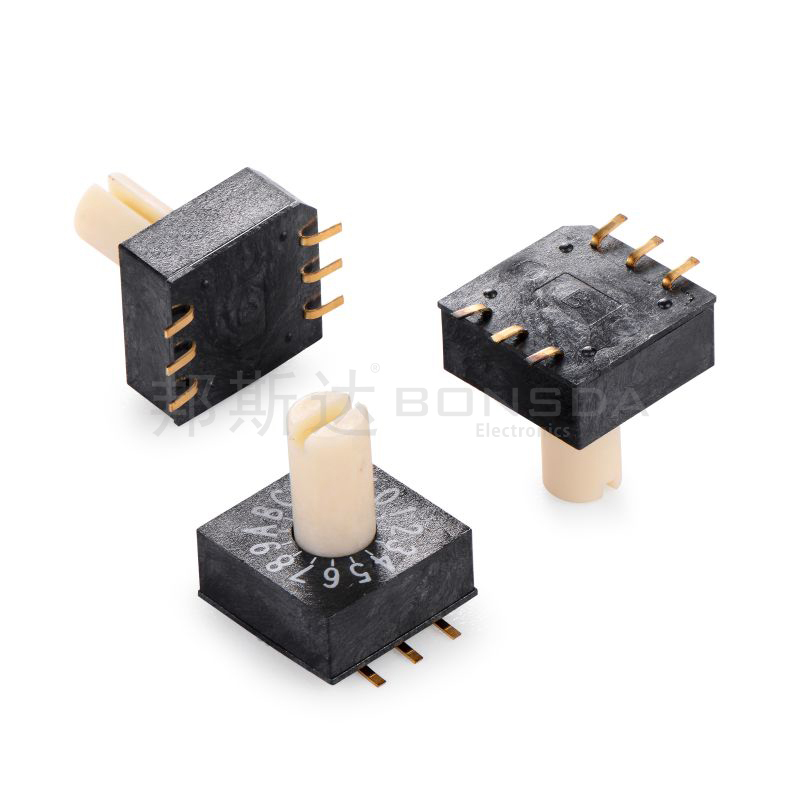

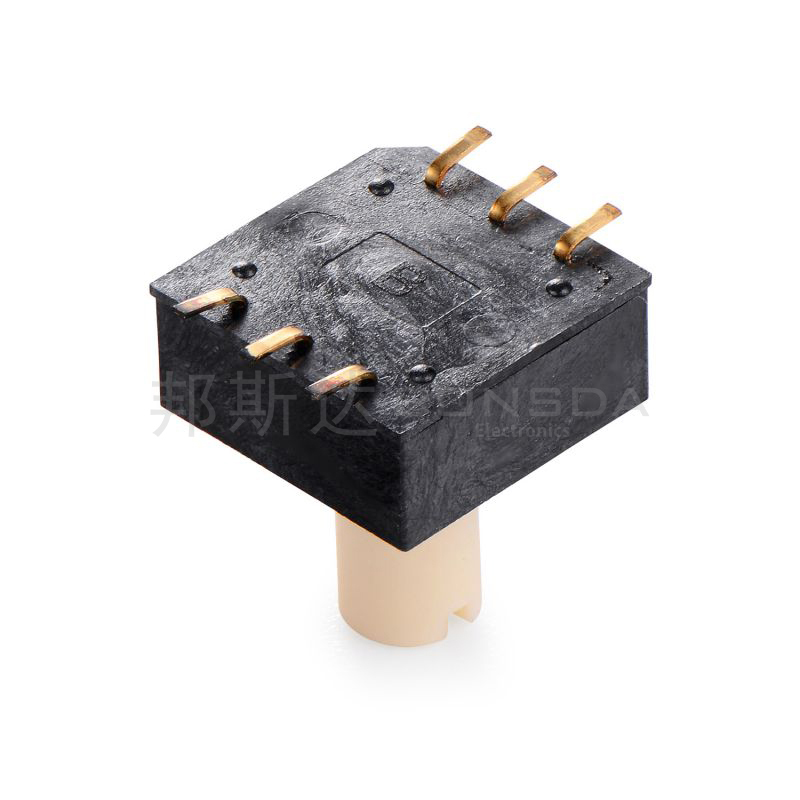

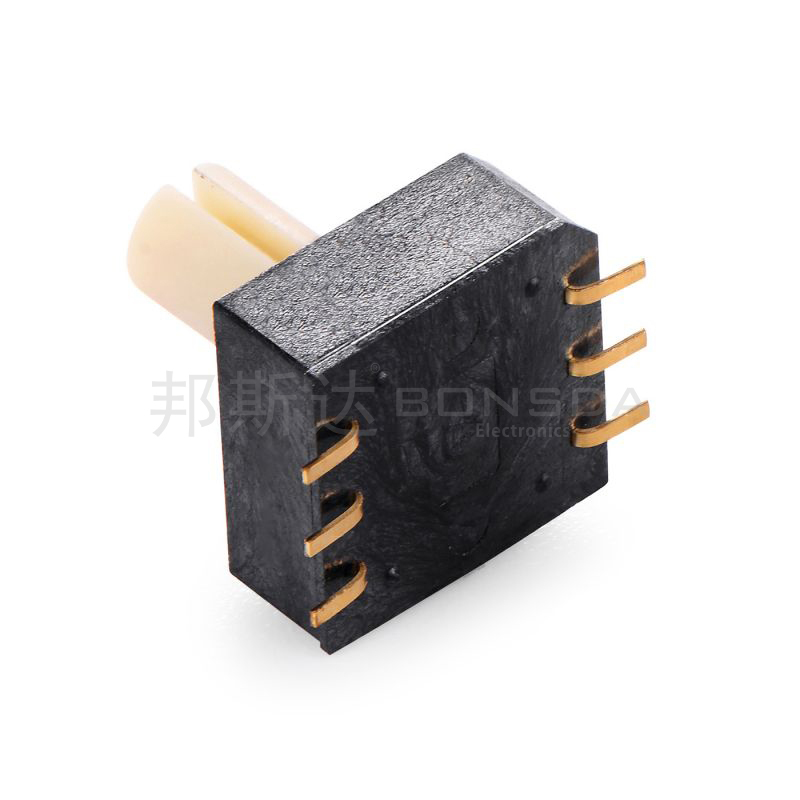

IP67 dustproof and waterproof， pin 3 * 3 ，16 speed rotary encoder switch
-Ultra thin size high-density installation
-Various gears of 8, 10, and 16
-THT, SMD, Angled various foot types
-IP67 (waterproof, dustproof)
-Compliant with RoHS standards
-High reliability gold-plated contacts

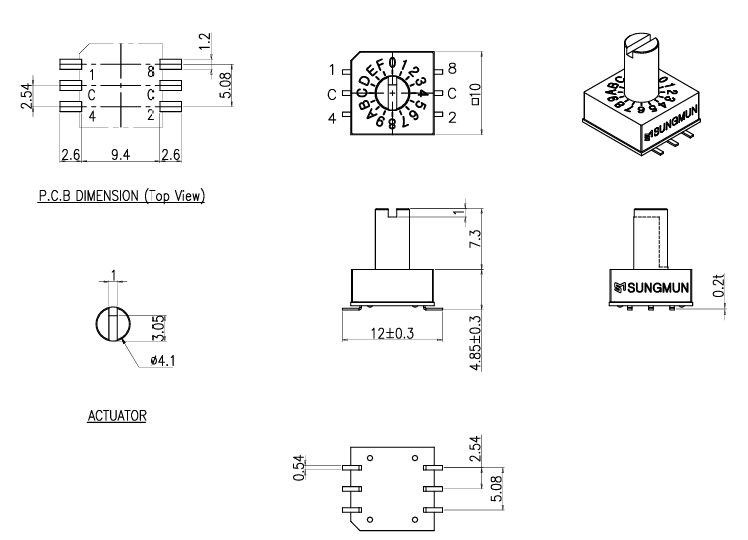

1. Model: USR-16S
2. Gear: 0-16 gears
3. Specification: 10mm * 10mm
4. Spacing: 2.54mm
5. Foot position: 3 * 3
6. Packaging: Vertical SMT
7. Origin: Authorized agent of SUNGMUN brand in South Korea.
8. Lifespan: 10000 cycles.
9. Function: USR-16S rotary switch, users can rotate the shaft handle to the desired end position, which can reflect the output value of BCD coding.
10. Packaging: 50pcs/tube
Application scope: Mainly used for most industrial equipment such as facial recognition temperature measurement all-in-one machine, AI computing box, digital sentry, USB camera, wireless keyboard with touchpad, etc.
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10mm*10mm |  |
25 mA,Dc 12v | 100mΩ | 10000 steps | 700gf |
