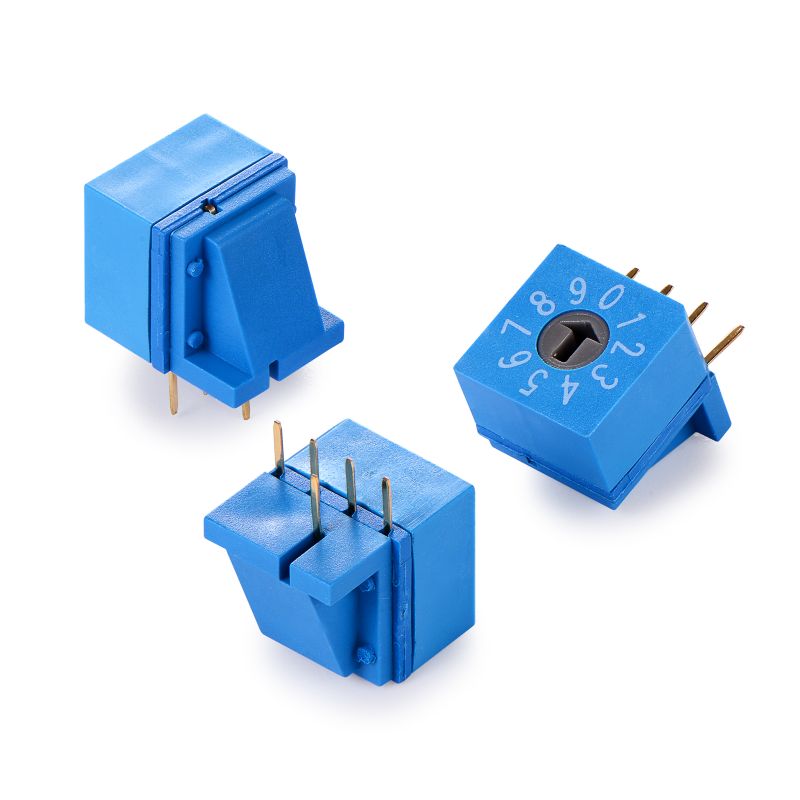

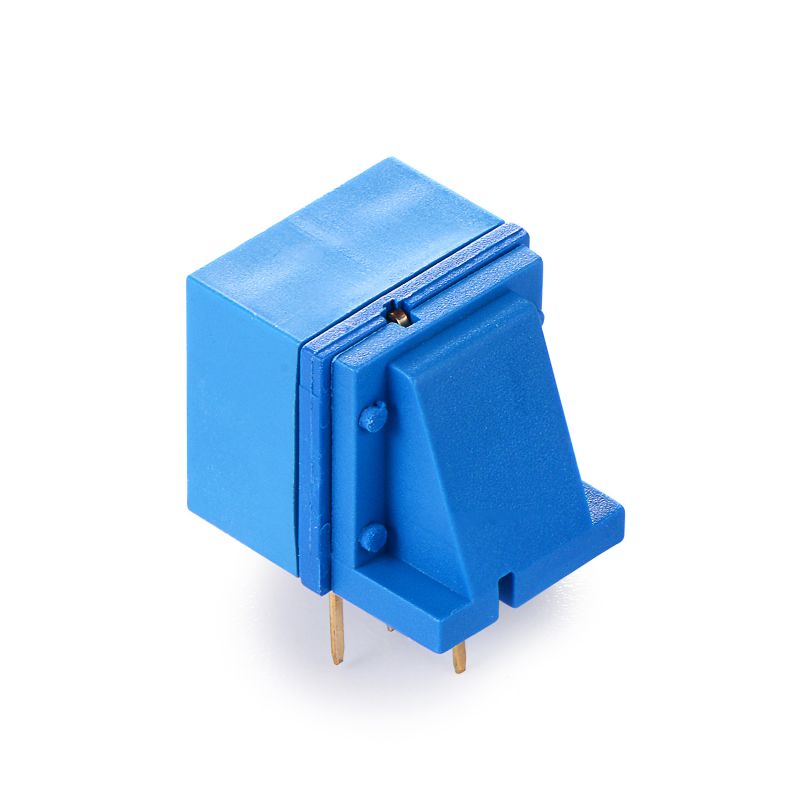

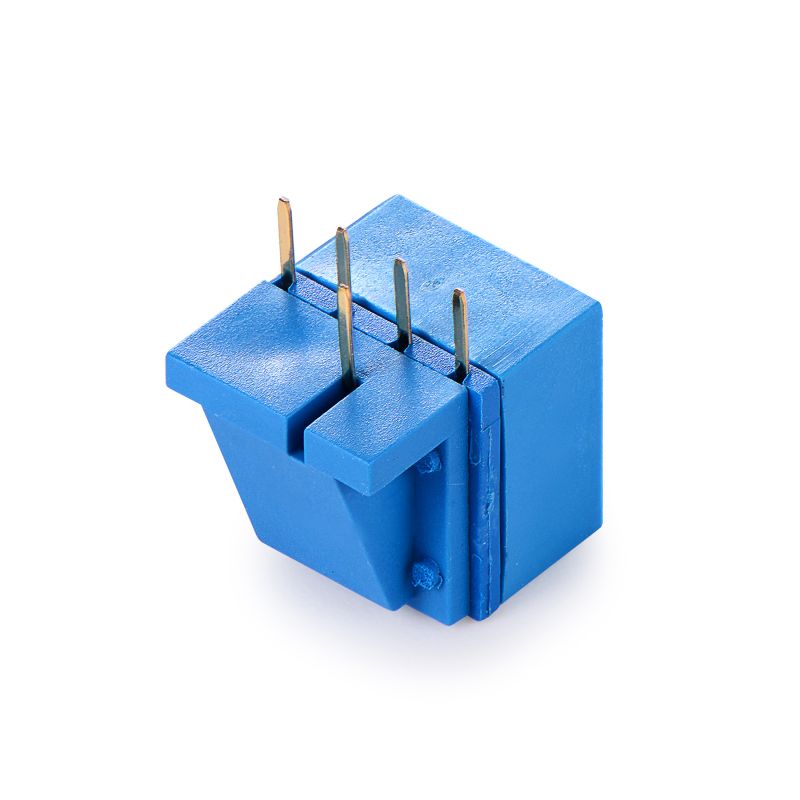

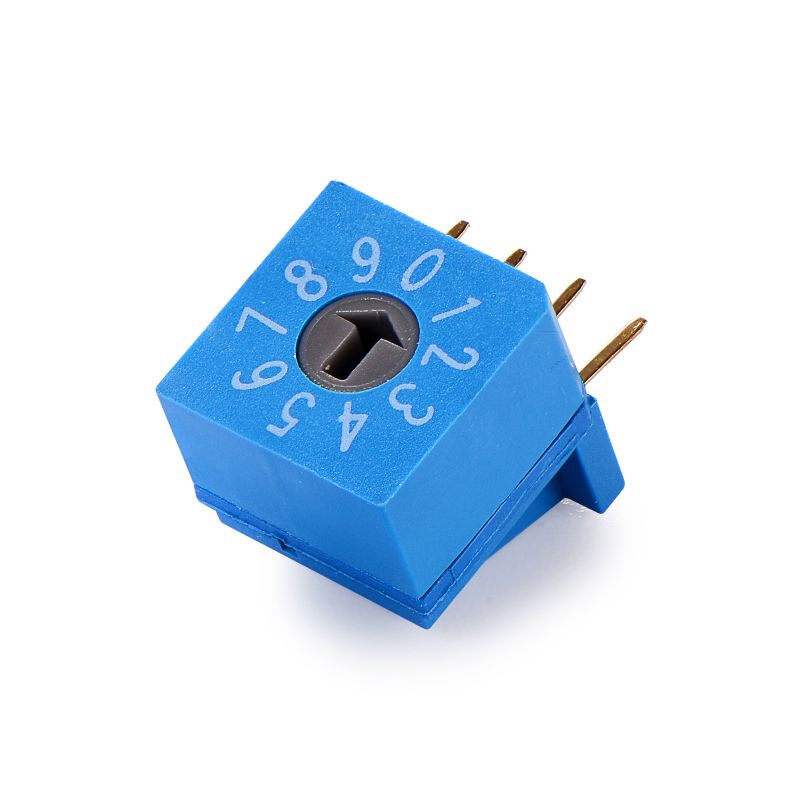

EDR-10H1 Rotary Encoder Switch 10-Position Dual-Row 5-Pin Horizontal DIP Plug with 2.54mm Pitch
- Available in various positions: 4, 6, 8, 10, 16
- Supports various pin types: THT, SMD, Angled
- IP67 rated for waterproof and dustproof capabilities
- Compliant with RoHS standards
- High reliability with gold-plated contacts
1. Model: EDR-10H1
2. Positions: 0-9-10

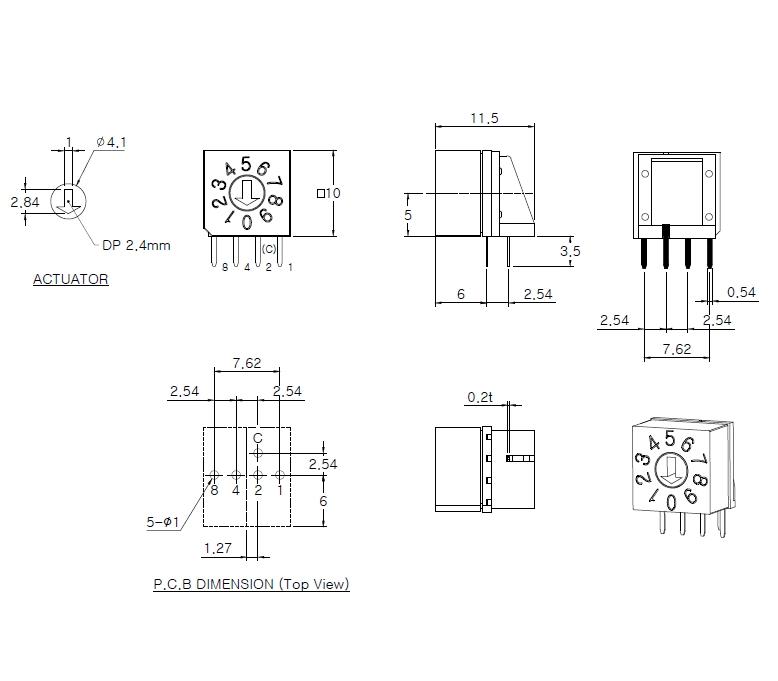

3. Specifications: 10mm x 11.5mm
4. Pitch: 2.54mm
5. Pin Configuration: Dual-row 5-pin with 8421 and common C pin
6. Package Type: Horizontal plug-in DIP
7. Origin: Authorized distributor of SUNGMUN brand from South Korea
8. Lifespan: 10,000 cycles
9. Functionality: The EDR-10H1 rotary switch allows users to rotate the handle to the desired position, reflecting BCD coded output values.
10. Applications: Primarily used in facial recognition temperature measurement integrated machines, AI computing boxes, digital sentinels, USB cameras, wireless keyboards with touchpads, and other industrial equipment.
11. Sealing: IP67 (dustproof and waterproof)
12. Packaging: 50PCS/tube
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10*11.5*2.54mm |  |
150mA, DC 42V-200mA, DC 42V | 80mΩ Max | 10,000 steps | 700gf Max |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
