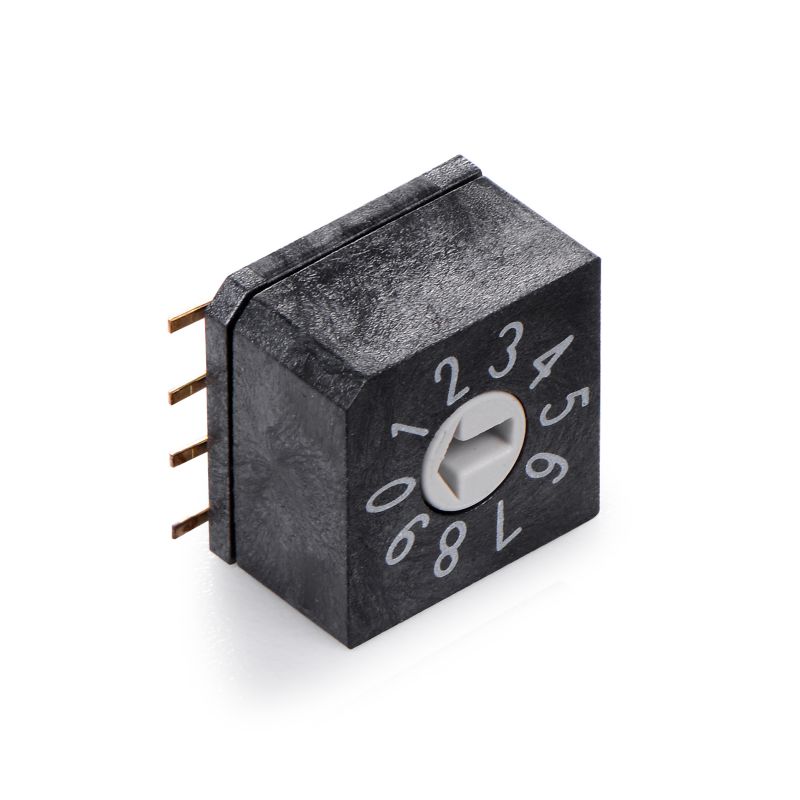

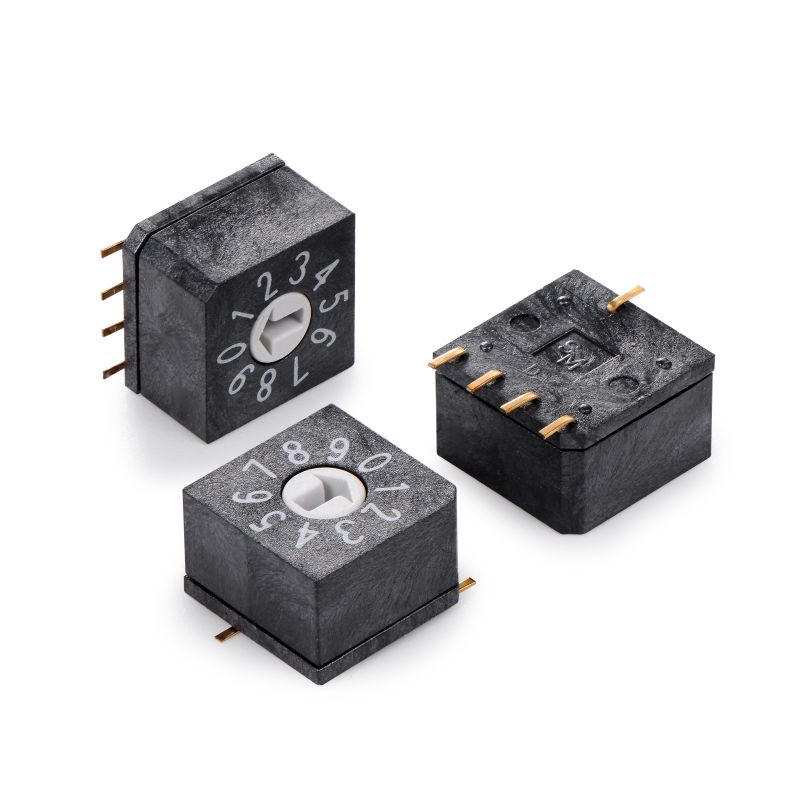

Rotary Encoder Switch, Black, 10-Position Vertical 5-Pin Surface Mount (SMT) Rotary Switch
- Available in various positions: 4, 6, 8, 10, 16
- Supports various pin types: THT, SMD, Angled
- IP67 rated (waterproof, dustproof)
- Compliant with RoHS standards
- High reliability with gold-plated contacts

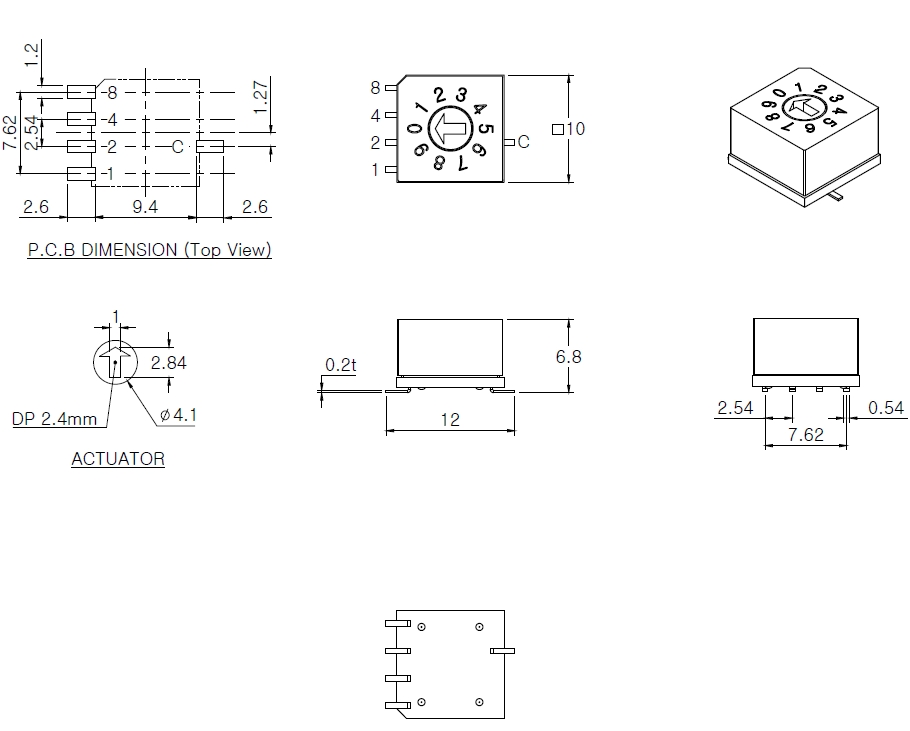

1. Model: EDR-10S
2. Color: Black base with white position indicators

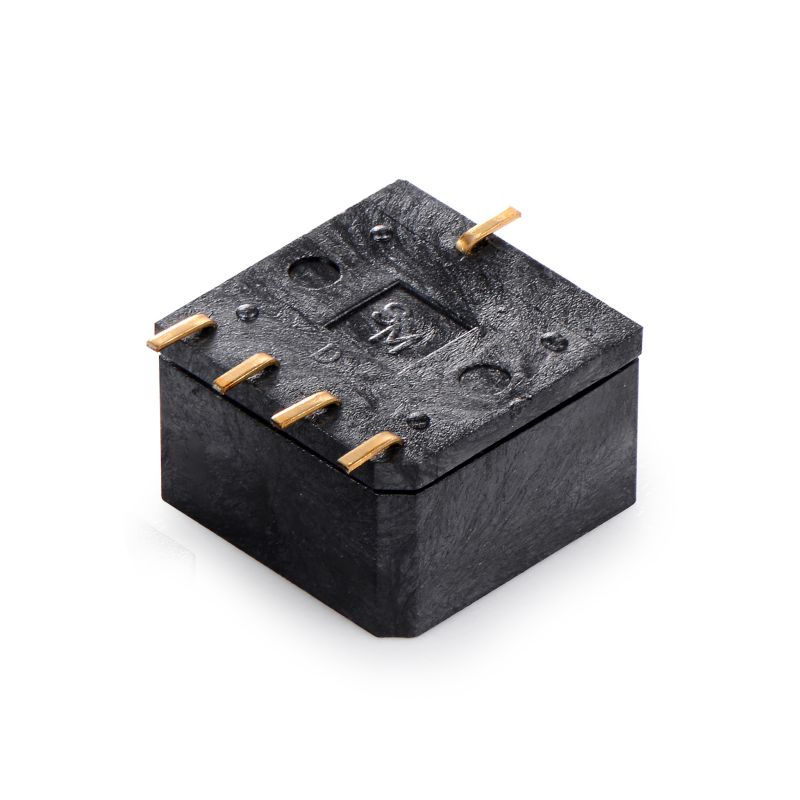

3. Pin Configuration: 5-pin SMT with 8421 and common C pin
4. Specifications: 10mm x 10mm x 6.8mm
5. Positions: 0-9-10 positions
6. Sealing: IP67 (dustproof and waterproof)
7. Packaging: 50 cards per tube/600 per reel
8. Lifespan:10,000 cycles
9. Force: 700gf

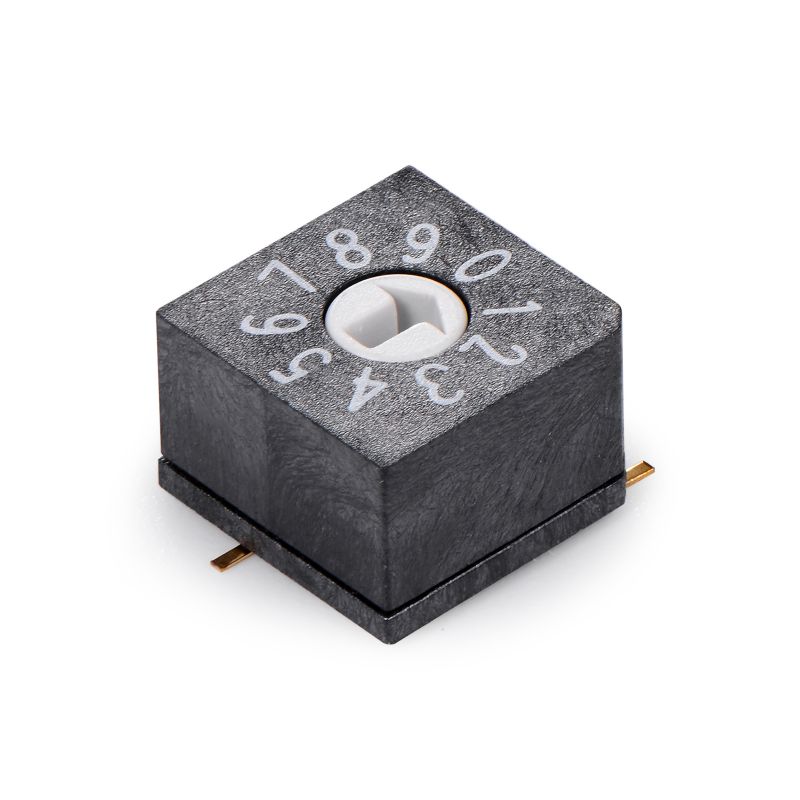

10. Package Type: Vertical surface mount (SMT)
11. Functionality: Rotary switch allowing users to rotate the handle to the desired position, reflecting BCD coded output values.
12. Applications:Used in speed controllers, actuators, control systems, light electric vehicles, medical and agricultural equipment, fire equipment, mobile lifting platforms, robots, and various other applications.
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10mm*10mm*6.8mm |  |
150mA, DC 42V-200mA, DC 42V | 80mΩ Max | 10,000 steps | 700gf Max |
Request Samples
|
