SHENZHEN ZIGENG TECHNOLOGY CO. LTD Metal Dome Arrays are metal dome carriers backed with adhesive tape. In this type, there is spacer attached under the Mylar that carries metal domes contacts.Normally, the mylar is the transparent, but the spacer have the transparant and white two kinds. The function of these is the same, it’s just according to your products’ requirements.There are air holes between the domes, it will provide the good click feeling when you pressed the metal domes. Besides this, it can help to block duct coming into the adhesive tape.

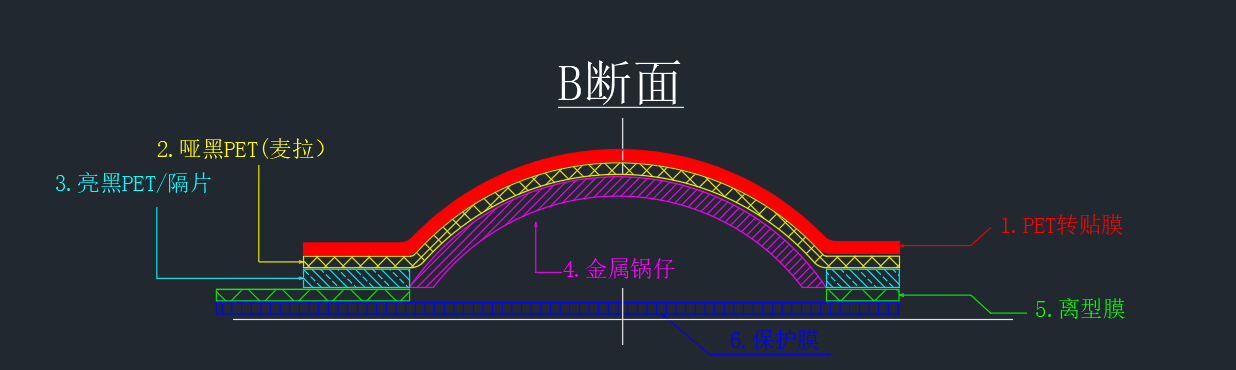

You can see the structure of this item as below:
Normal Custom Dome Array Structure
If you have the inquiry of our normal custom metal dome arrays, please contact us anytime, we are glad to be at your service.Email:linsl@zigkj.com
1.Structure: Double Layers
2.Material: Mylar + Adhesive + Spacer + Adhesive + metal dome
3.Color: Mylar: transparent; Spacer: white or transparent
4.Thikness: Mylar: 0.05mm; Spacer: 0.075mm

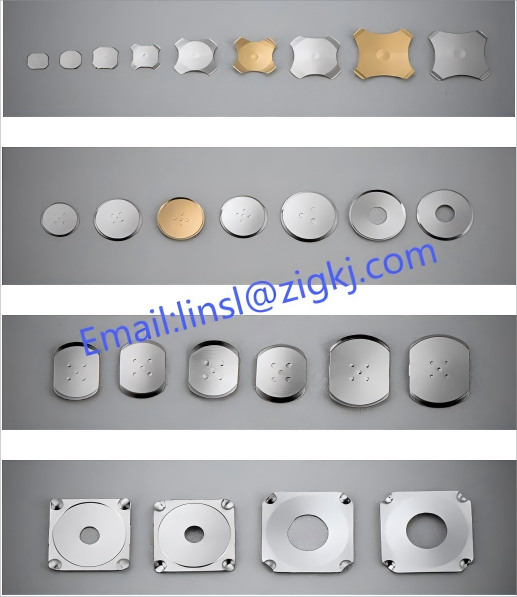

5.Available Domes:C-series（Circle）, A-series（Cross）, B-series（Oval） , D-series（Triangle ）, ZF-series（Square）,CF-series（Rectangle）
6.Operating & Storage Temprature: 5-125℃
12.2mm Four-Leg Cross-Shaped Dome, Gold-Plated Tactile Dome
12.2mm Cross-Shaped Four-Legged Gold-Plated Metal Dome
4.0x3.0mm Oval Nickel-plated Metal Domes.
Oval metal dome with 130g force, metal spring plate, nickel plated pot, metal plate
Cross-shaped 12.2mm nickel-plated dome switch with four-corner Metal Domes.
12.2mm Nickel-Plated Cross-Shaped Four-Legged Metal Dome
