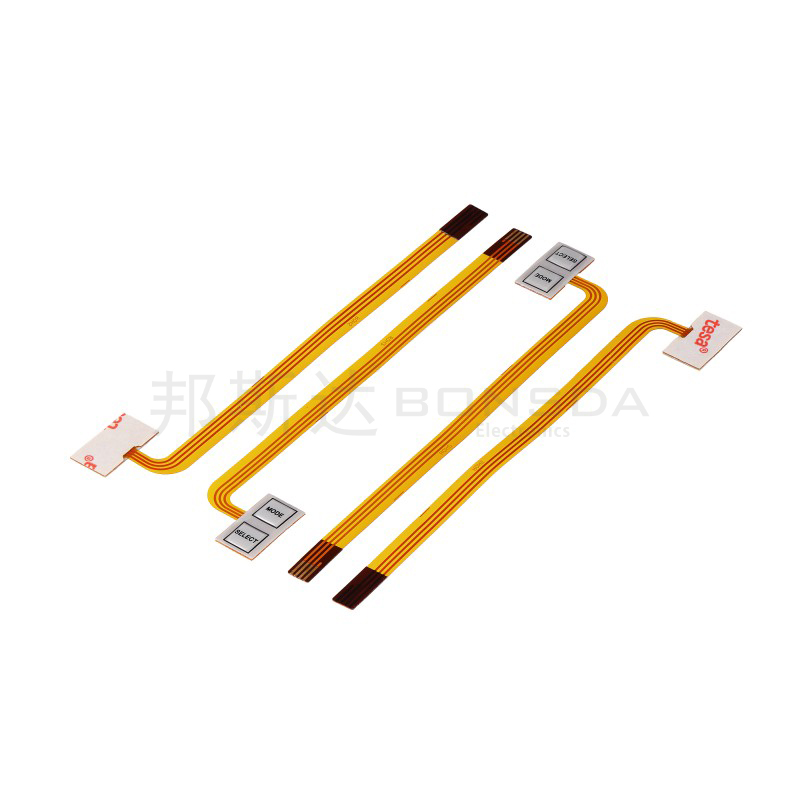

• SD-SA650 Membrane Switch Keypad

    • Duraswitch - PushGate: It is a push-button switch manufactured by MG Electronic, featuring a unique patented design that combines the advantages of discrete mechanics and planar membrane switches. It is slightly thicker than traditional membrane switches but has better touch and durability.


    • Duraswitch - MagnaMouse: It is a multi-dimensional control switch that might have magnetic or other special functions and is suitable for applications that require precise control.


    • Duraswitch - thiNcode: It is an ultra-thin encoder that can be integrated into the Duraswitch's PushGate panel or traditional membrane switches. It has the characteristics of a low profile and non-intrusive, and is suitable for designs with limited space.


    Features

    Panel V150

    Surface adhesive 3M7945

    Fixed layer

    Wire key adhesive 3M7959

    PCB lower circuit

    Primer 3M468

    Shrapnel

    Ordinary LED

    Rainbow line

    LED light sealing adhesive (A)

    LED light sealing adhesive (B)

    printing ink

    Peripheral sealant


    Schematic
