16 speed rotary encoder switch 6p vertical surface mount rotary dip switch-SD-R7M3-10-16-SMT BONSDA

Rotary Encoder Switch, Domestic 10-Position Rotary Encoder Switch with Shaft

Product Characteristics

1. RATING : DC 24V 25mA；

2. CONTACT RESISTANCE : 100mΩ Max；

3. INSULATION RESISTANCE : 100MΩMin,100V DC；

4. DIELECTRIC STRENGTH : 250V AC / 1 Minute；

5. TRAVEL: 中心（CENTER）36.0°/360°；

6. OPERATING TEMP:-30℃to+80℃；

7. STORAGE TEMP:-40℃to+85℃.

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

Verification code*

Overview

1. Model: SD-R7M3-10-16-SMT

2. Positions: 10 positions/16 positions

3. Shaft: Shaft available

4. Package Type: 6-pin Surface Mount Technology (SMT)

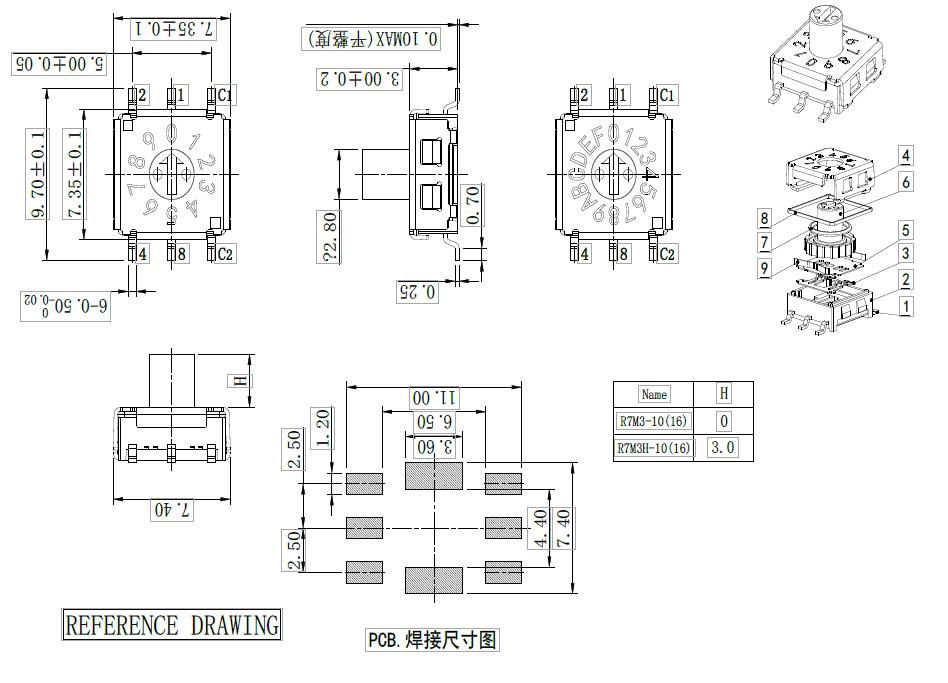

5. Specifications: 7.35mm x 7.35mm x 3.0mm base

6. Lifespan: ≥20000 Steps

7. Operating Force: 200gf Max

8. Origin: China

9. Functionality: Users rotate the shaft handle to the desired position, reflecting BCD coded output values.

10. Applications: Mainly used in LED waterproof lamps, LED ceiling lights, LED lighting accessories, and LED drivers.

Parameters

Specifications	Spes	Rated current	Contact resistance	Life cycles	Travel	Trip force	Request Samples
7.35mm7.35mm3.0mm		DC 24V 25mA	100mΩ Max	≥20000 Steps		200gf Max	Request Samples
