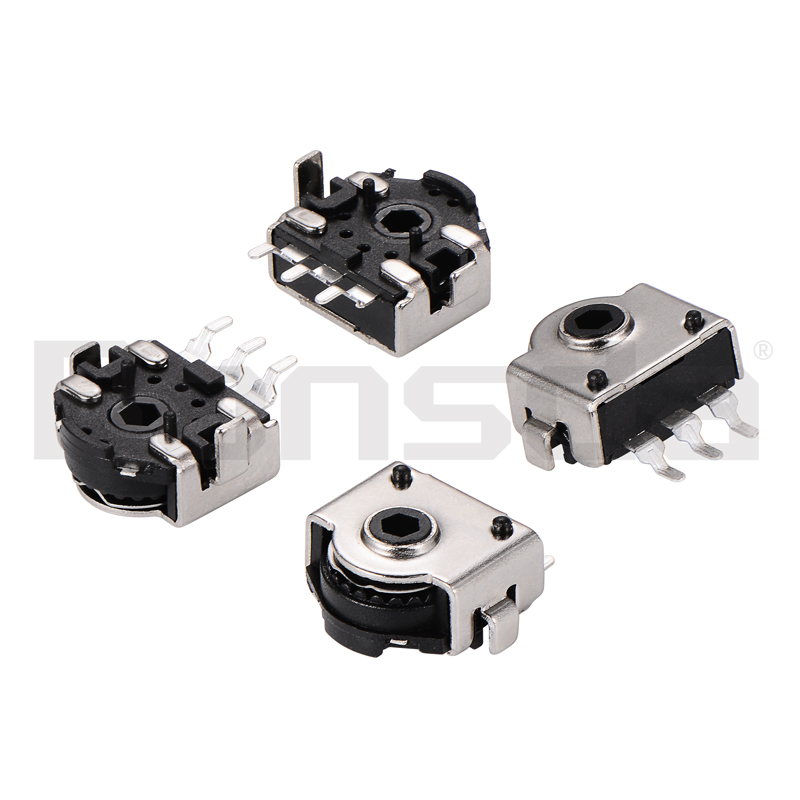

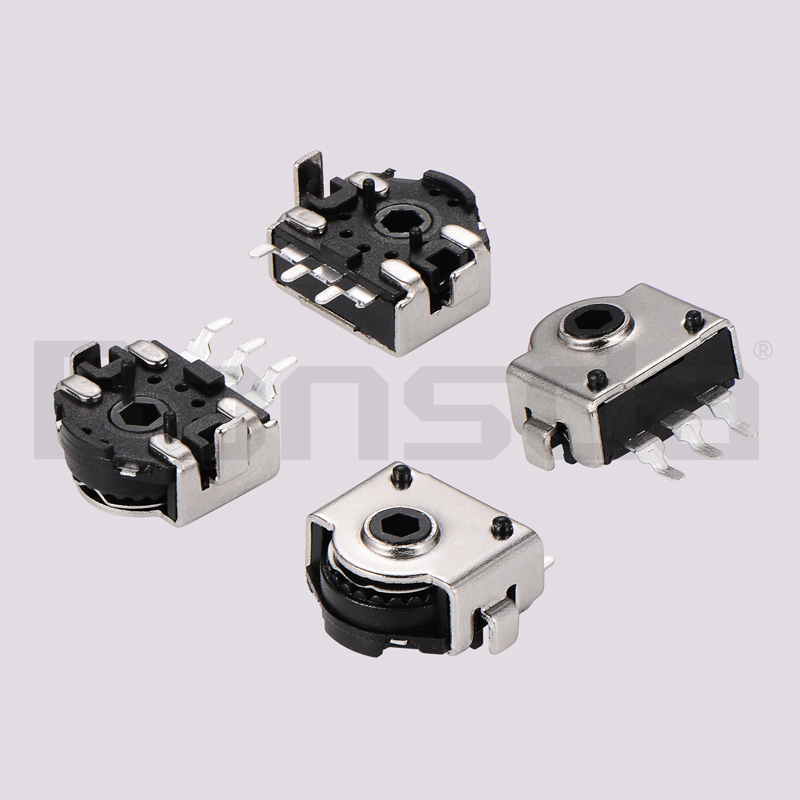

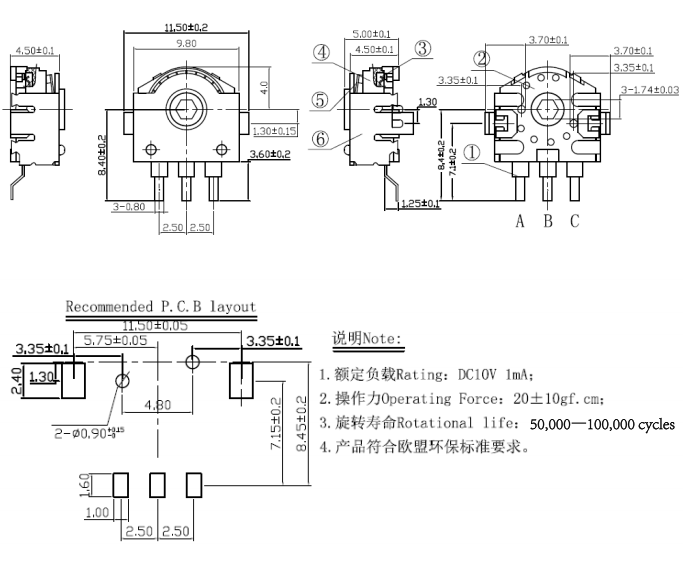

SD-EC09-6-5C-GW 9mm Rotary Encoder with Switch | High-Resolution Pulse Output

Precision Control for Imaging & Instrumentation | 24 Detents, 50,000 Cycles Mechanical Life

Product Characteristics

Parameter	Specification/Value
Product Model	SD-EC09-6-5C-GW
Product Type	Rotary Encoder (with Press Switch)
Body Size	9mm
Number of Pins	5
Resolution	12 pulse/360°
Detent Points	24 points
Detent Angle	15° ± 3°
Operating Force	20 ± 10 gf.cm
Rated Load	DC 10V, 1mA
Contact Resistance	Max 500mΩ
Insulation Resistance	Min 50MΩ (at 50VDC)
Mechanical Life	50,000 - 100,000 cycles
Operating Temperature	-25℃ ~ +85℃
Environmental Standard	Compliant with EU RoHS directive

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

Verification code*

Overview

The BONSDA SD-EC09-6-5C-GW Smart Image Rotation Encoder is a core control component designed for demanding imaging applications. With ultra-precise angle feedback and stable signal output, it enables accurate positioning and smooth control for medical imaging equipment (CT/MRI), security camera pan-tilt units, and industrial vision inspection systems, boosting image quality, system efficiency, and equipment reliability."

III. Core Features (Bulleted + Scenario-Based Descriptions)"Why Choose SD-EC09-6-5C-GW? 4 Key Advantages:"

Ultra-Precision Positioning for Clear Imaging:

○

XX PPR Resolution ensures precise angle capture, meeting 0.1° positioning requirements for medical imaging equipment and reducing image blurring.

Anti-Interference Design for Harsh Environments:

○

Differential signal output (A/B/Z phases) effectively resists electromagnetic interference in medical and industrial settings.

Long Lifespan and Reliable Operation:

○

≥ XX million rotation cycles, ideal for high-frequency applications like CT scanners, minimizing maintenance costs.

Compact and Compatible Design:

○

XXmm compact size with standard interfaces for effortless integration into various imaging device rotation modules.

IV. Applications & Value (Scenario-Based Cases + Data)"Key Application Scenarios:"

Medical Imaging Equipment:

○

CT Scanners: Precisely control X-ray rotation angles for millimeter-level accuracy in tomography imaging.

○

Endoscope Systems: Real-time feedback on lens rotation for targeted lesion localization.

Security Monitoring:

○

HD Camera PTZ Units: 360° seamless rotation and rapid target tracking for enhanced surveillance coverage.

Industrial Vision Inspection (AOI):

○

Drive lens module rotation for 100% coverage defect detection on complex workpieces.

"Customer Benefits:"

●

Enhanced equipment stability and reliability

●

Reduced downtime and maintenance costs

●

Faster integration of imaging systems

Parameters

Specifications	Spes	Rated current	Contact resistance	Life cycles	Travel	Trip force	Request Samples
12 pulse/360°		DC 10V, 1mA	Max 500mΩ	50,000 - 100,000 cycles		20 ± 10 gf	Request Samples
