Pin spacing between two ends 5.08mm IP67 dustproof and waterproof pins 3 * 3 16 speed rotary
-Ultra thin size high-density installation
-Various gears of 8, 10, and 16
-THT, SMD, Angled various foot types
-IP67 (waterproof, dustproof)
-Compliant with RoHS standards
-High reliability gold-plated contacts

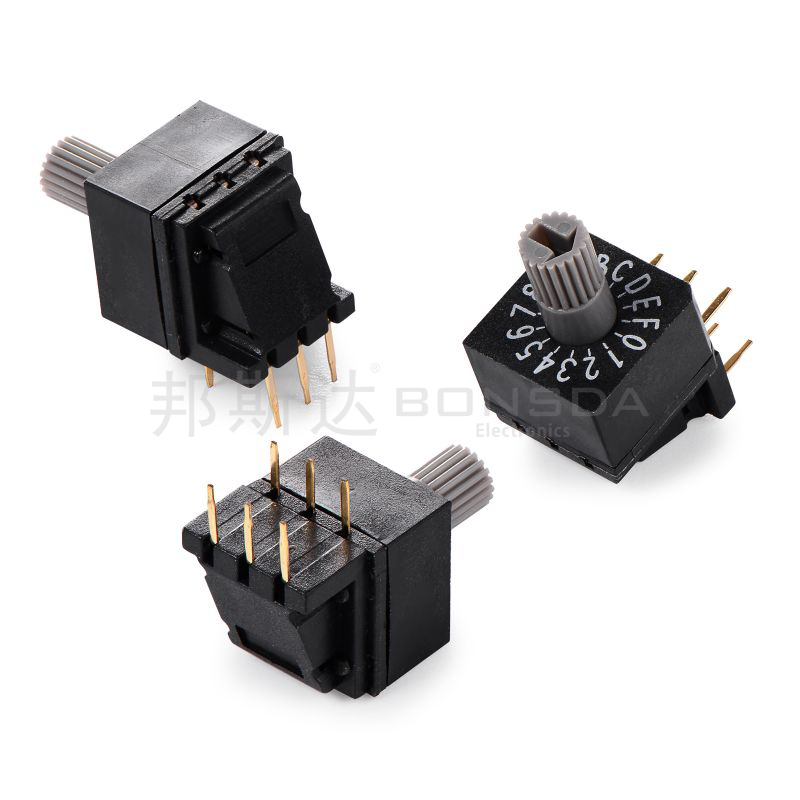

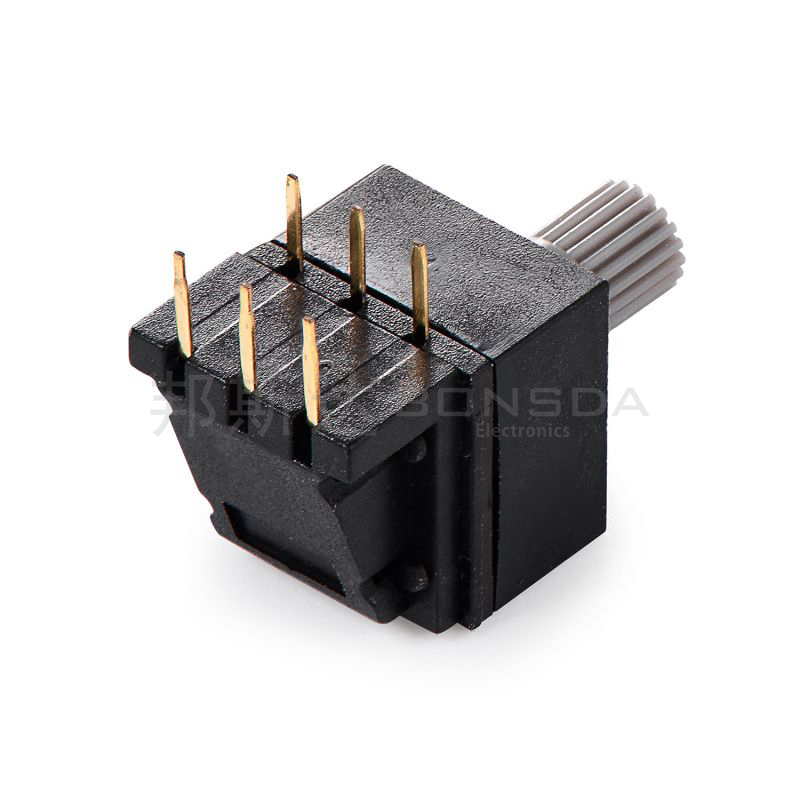

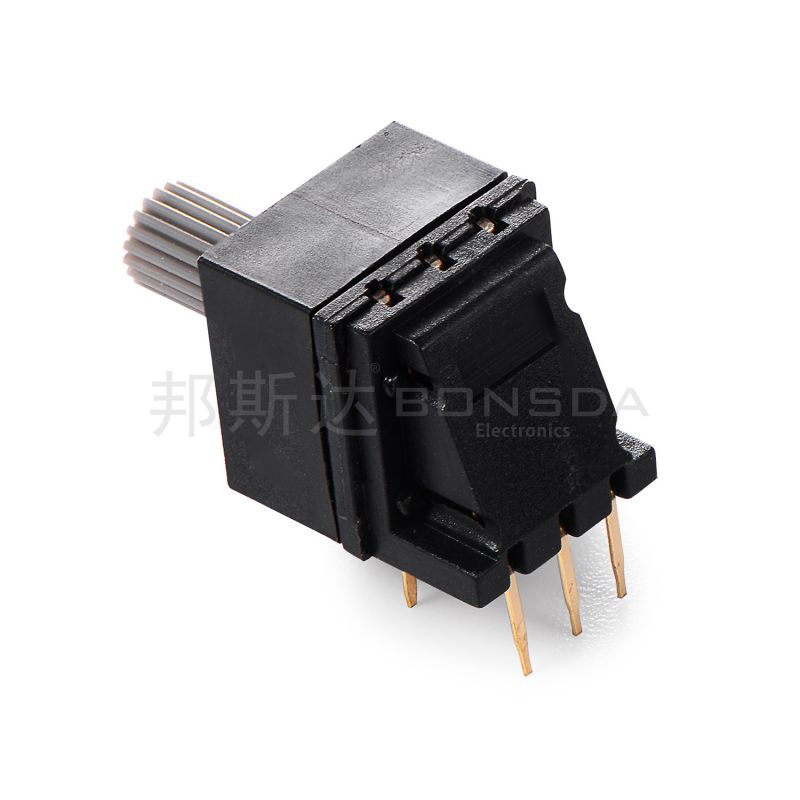

1. Model: QSR-16H
2. Gear: 0-16 gears

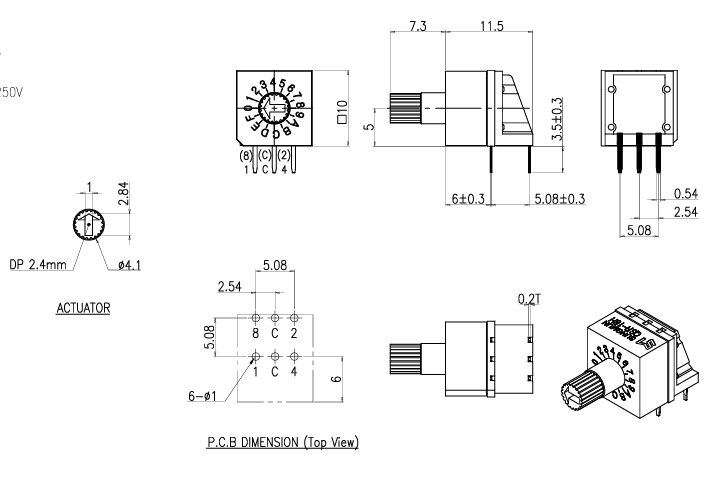

3. Specification: 10mm * 10mm
4. Spacing: 2.54mm, distance between pins 5.08mm on both sides
5. Foot position: 3 * 3
6. Packaging: Horizontal plug-in
7. Origin: Authorized agent of SUNGMUN brand in South Korea.
8. Lifespan: 10000 cycles.
9. Function: QSR-16H rotary switch, users can rotate the shaft handle to the desired end position, which can reflect the output value of BCD coding.
10. Packaging: 50pcs/tube
Application scope: Mainly used for most industrial equipment such as facial recognition temperature measurement all-in-one machine, AI computing box, digital sentry, USB camera, wireless keyboard with touchpad, etc
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10mm*10mm |  |
25mA,Dc 42v | 80mΩ | 10000 steps | 700gf |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
