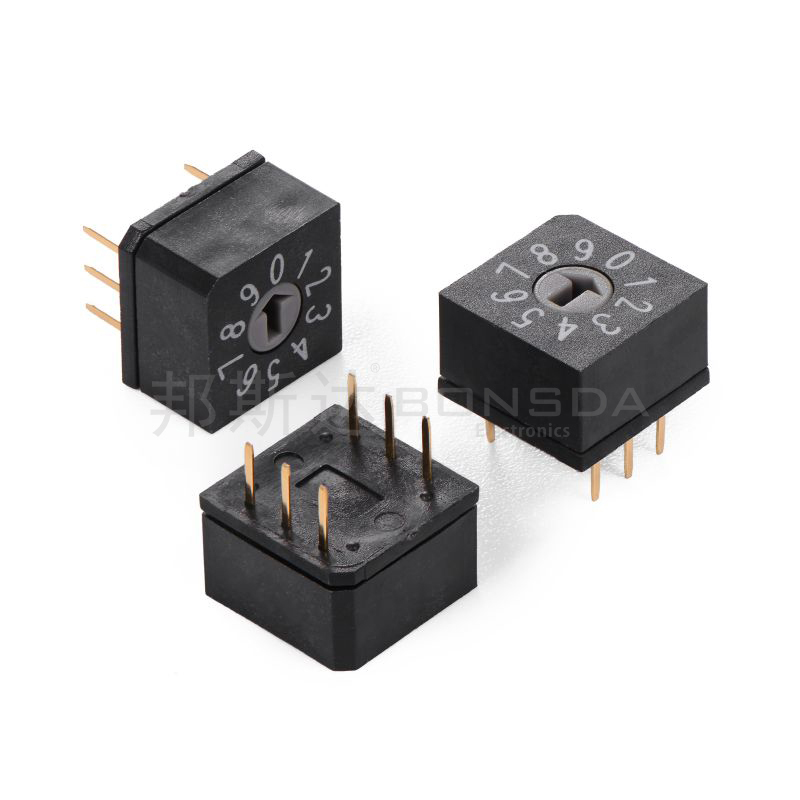

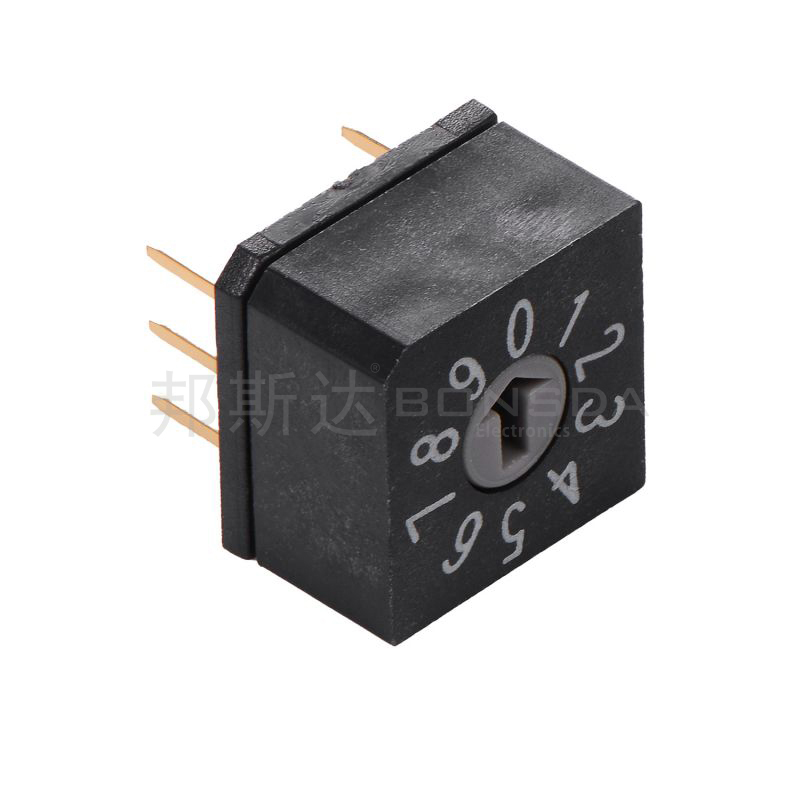

IP67 dustproof and waterproof pin 3 * 3 10 speed rotary coding switch
-Ultra thin size high-density installation
-4, 10, 16 various gears
-THT, SMD, Angled various foot types
-IP67 (waterproof, dustproof)
-Compliant with RoHS standards
-High reliability gold-plated contacts
1. Model: QDR-10
2. Gear: 0-10 gears
3. Specification: 10mm * 10mm, base height 6.5mm
4. Spacing: 2.54mm

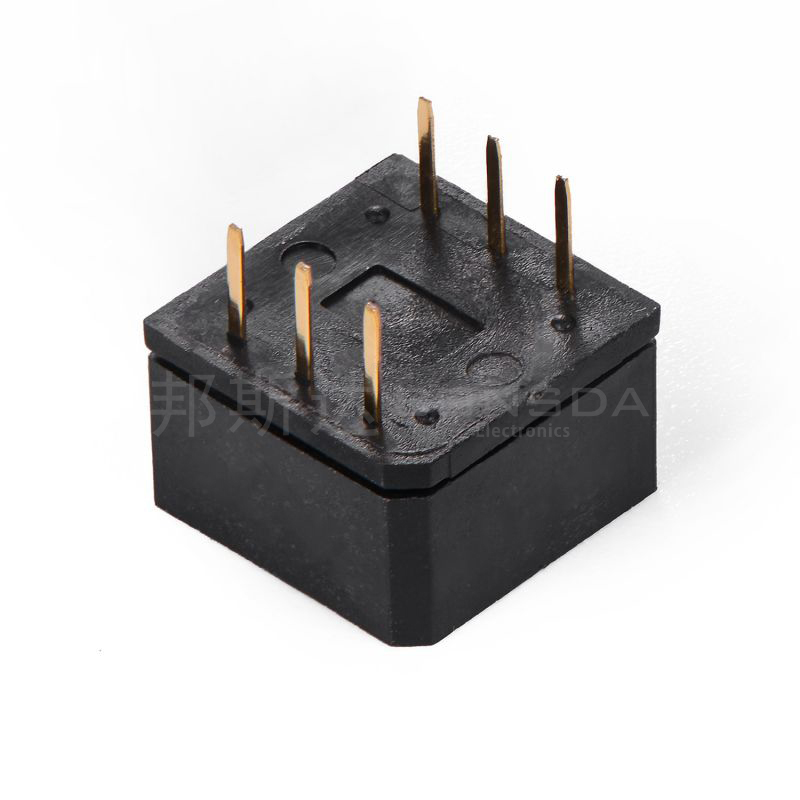

5. Foot position: 3 * 3
6. Encapsulation: Vertical plug-in
7. Origin: Authorized agent of SUNGMUN brand in South Korea.
8. Lifespan: 10000 cycles.
9. Function: QDR-10 rotary switch, users can rotate the shaft handle to the desired end position, which can reflect the output value of BCD coding.
10. Application scope: Mainly used for facial recognition temperature measurement all-in-one machine, AI computing box, digital sentry, USB camera, wireless keyboard with touchpad, frequency converter, environmental detection instrument, medical monitoring instrument and most other industrial equipment.
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10*10mm |  |
150mA 42V | 80mΩ | 10000steps | 700gf |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
