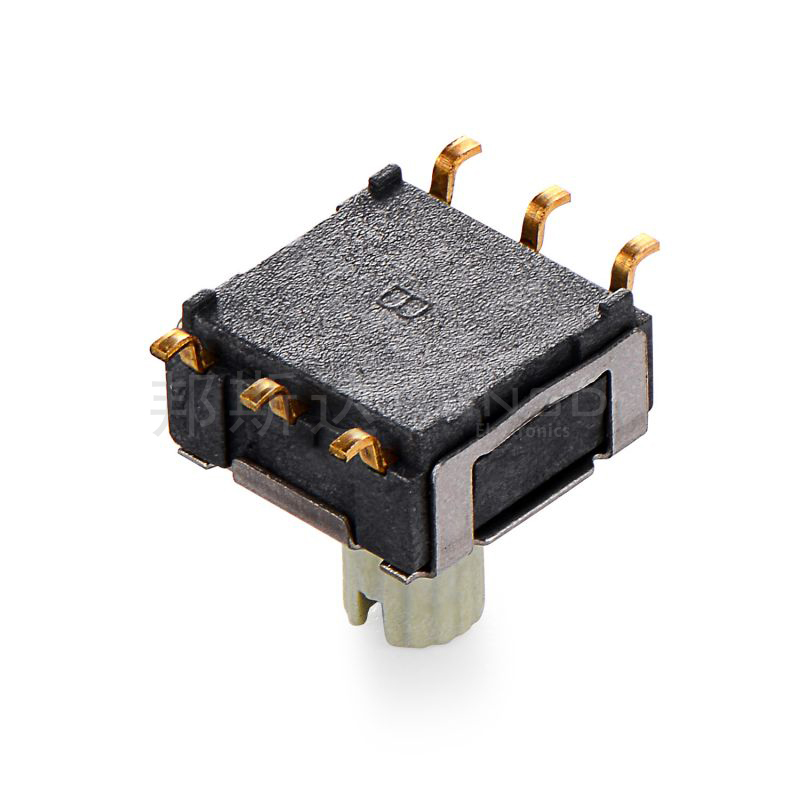

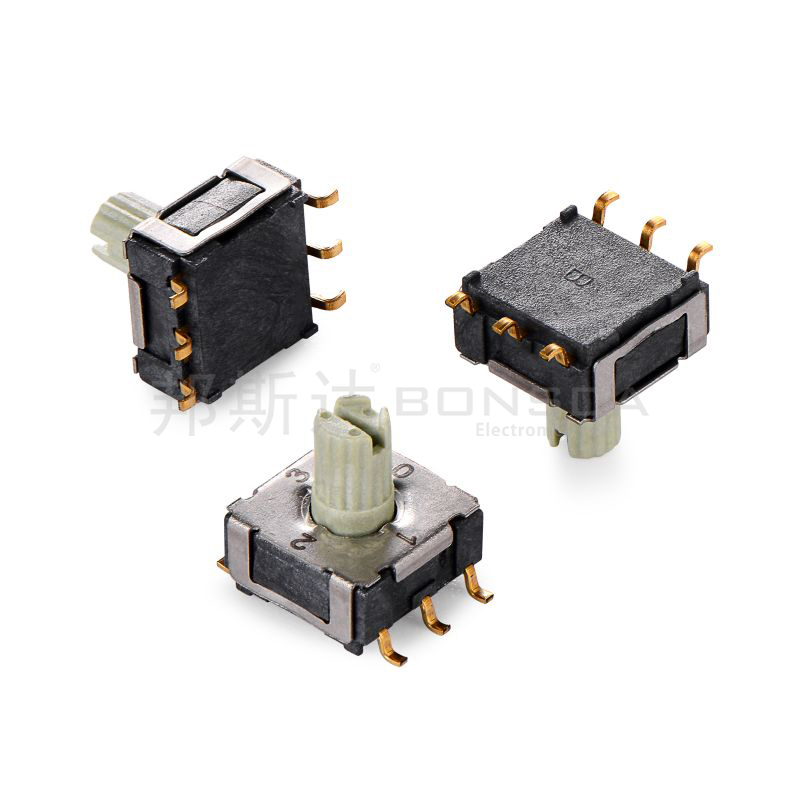

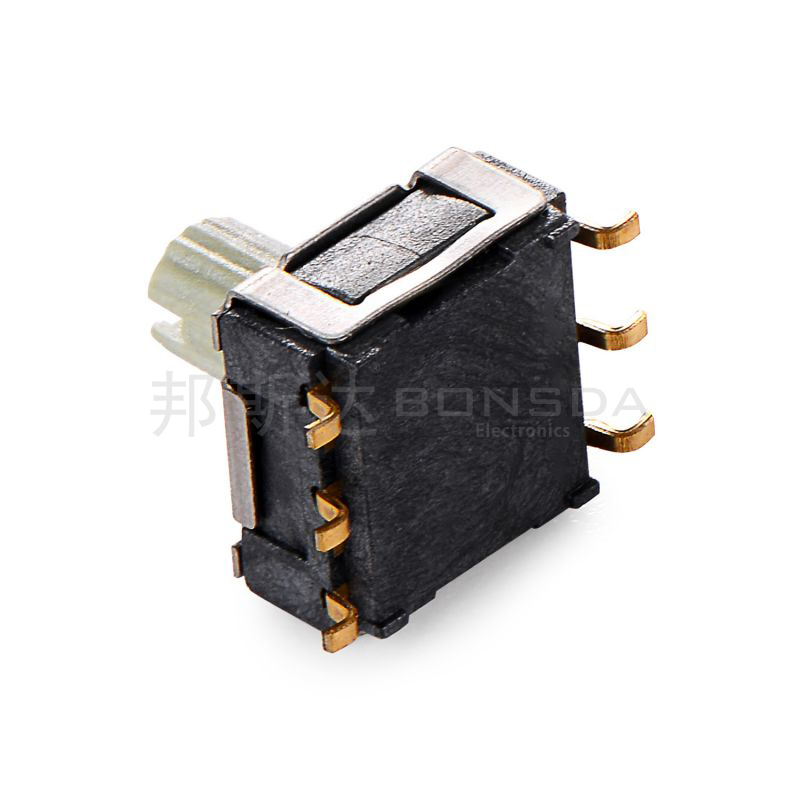

IP67 dustproof and waterproof pin 3 * 3 4-speed rotary encoder switch Mini patch
-Ultra thin size high-density installation
-4, 10, 16 various gears
-THT, SMD, Angled various foot types
-IP67 (waterproof, dustproof)
-Compliant with RoHS standards
-High reliability gold-plated contacts
1. Model: MSSM-04S
2. Gear: 0-4 gears

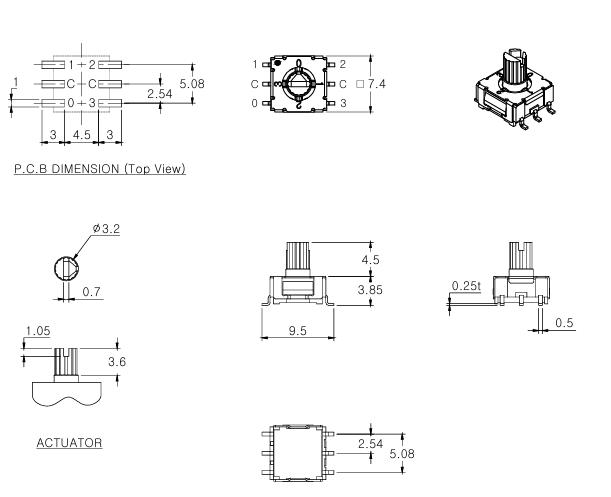

3. Specification: 7.4mm * 7.4mm, base height 3.85mm+Bing height 4.5mm
4. Spacing: 2.54mm
5. Foot position: 3 * 3
6. Packaging: Vertical SMT
7. Origin: Authorized agent of SUNGMUN brand in South Korea.
8. Lifespan: 25000 cycles.
9. Function: MSSM-04S rotary switch, users can rotate the shaft handle to the desired end position, which can reflect the output value of BCD coding.
10. Packaging: 70PCS/tube
Application scope: lighting electrical, medical appliances, automotive electronics, navigation key switches, instruments, new energy equipment, smart small appliances and most other industrial equipment.
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 7.4*7.4mm |  |
100mA DC42V | 80mΩ | 25000 steps | 120+30gf |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
