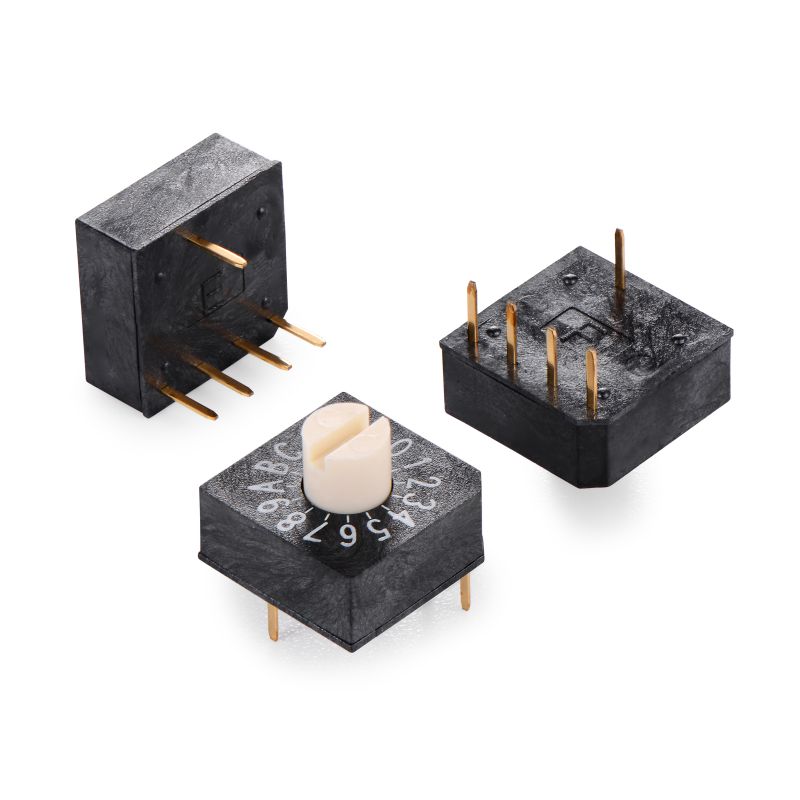

HAMR-16 Rotary Dip switch 10 * 10 with handle vertical plug-in SUNGMUN

IP67 dustproof and waterproof 4 * 1 Rotary Dip switch vertical plug-in with 16 levels and twist handle

Product Characteristics

-Various gears including 4, 6, 8, 10, and 16

-THT, SMD, Angled various foot types

-IP67 (waterproof, dustproof)

-Compliant with RoHS standards

-High reliability gold-plated contacts

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

Verification code*

Overview

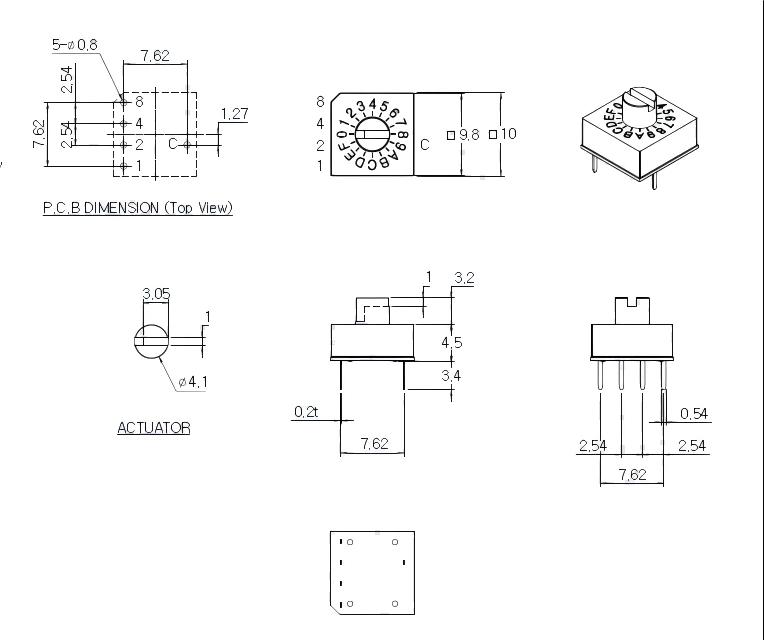

1. Model: HAMR-16

2. Gear: 0-16 gears

3. Specification: 10mm * 10mm

4. Spacing: 2.54mm

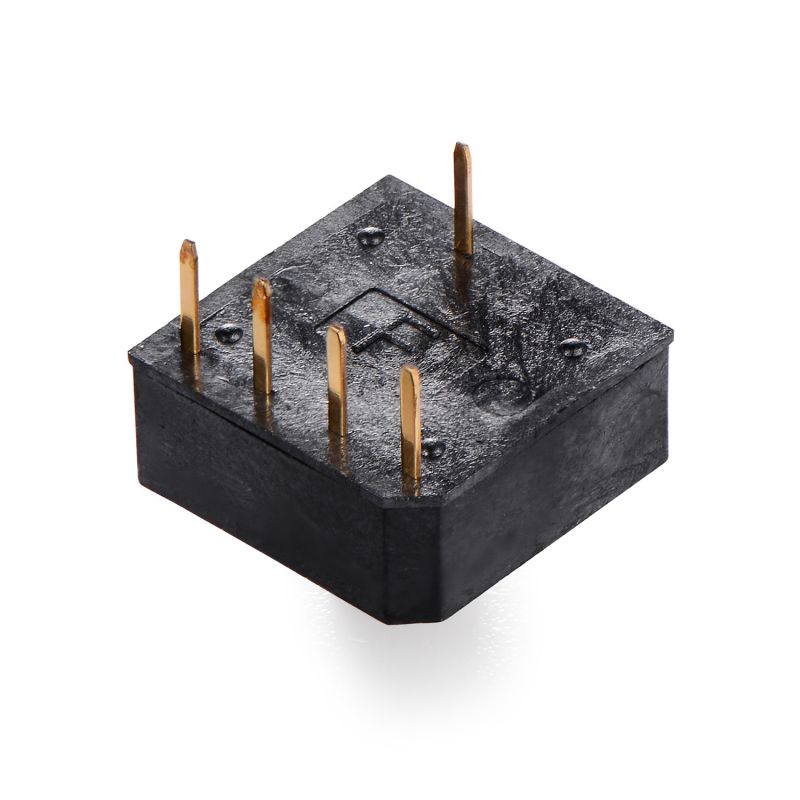

5. Foot position: Double row 4*1-pin 8421 with C common foot

6. Packaging: Vertical patch with handle 2.5mm and notch

7. Origin: Authorized agent of SUNGMUN brand in South Korea.

8. Lifespan: 10000 cycles.

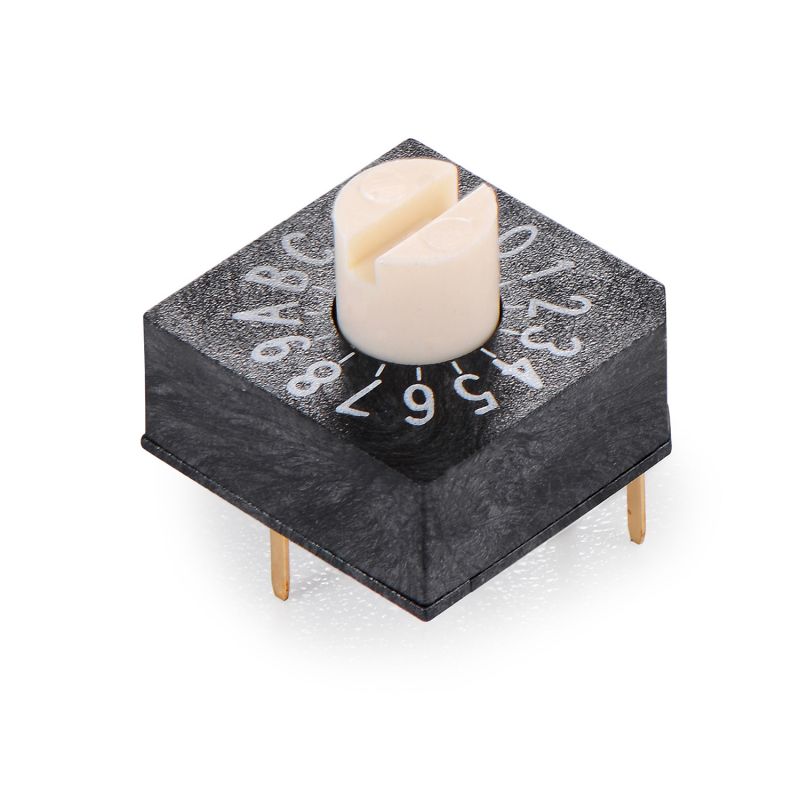

9. Function: HAMR-16 rotary switch, users can rotate the shaft handle to the desired end position, which can reflect the output value of BCD coding.

Application scope: Mainly used for most industrial equipment such as facial recognition temperature measurement all-in-one machine, AI computing box, digital sentry, USB camera, wireless keyboard with touchpad, etc.

Parameters

Specifications	Spes	Rated current	Contact resistance	Life cycles	Travel	Trip force	Request Samples
10*10mm		25mA, DC 12V (Switching）	100mΩ Max	10,000 steps		700gf Max	Request Samples
