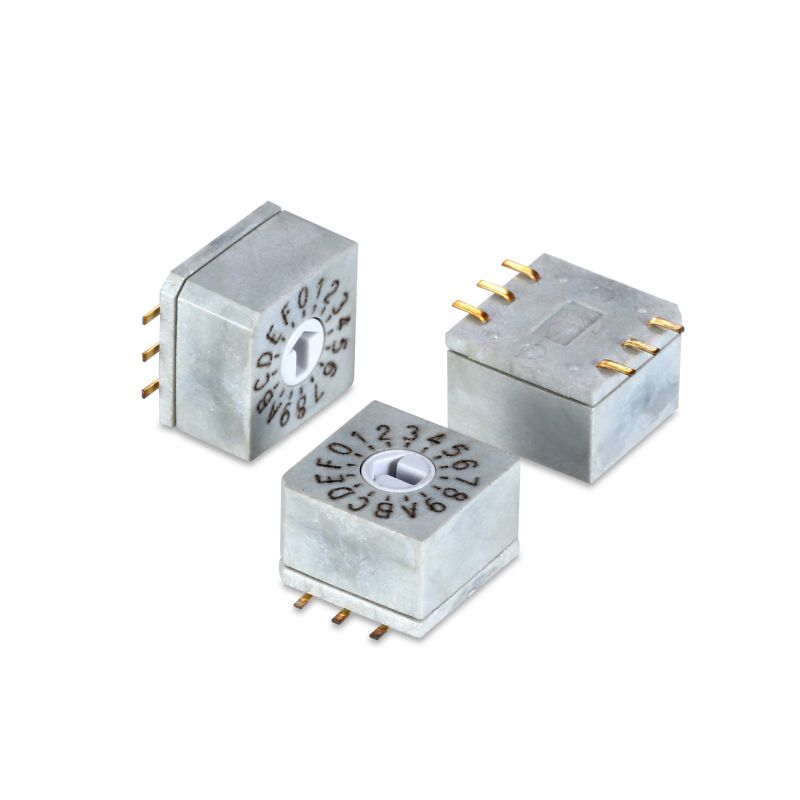

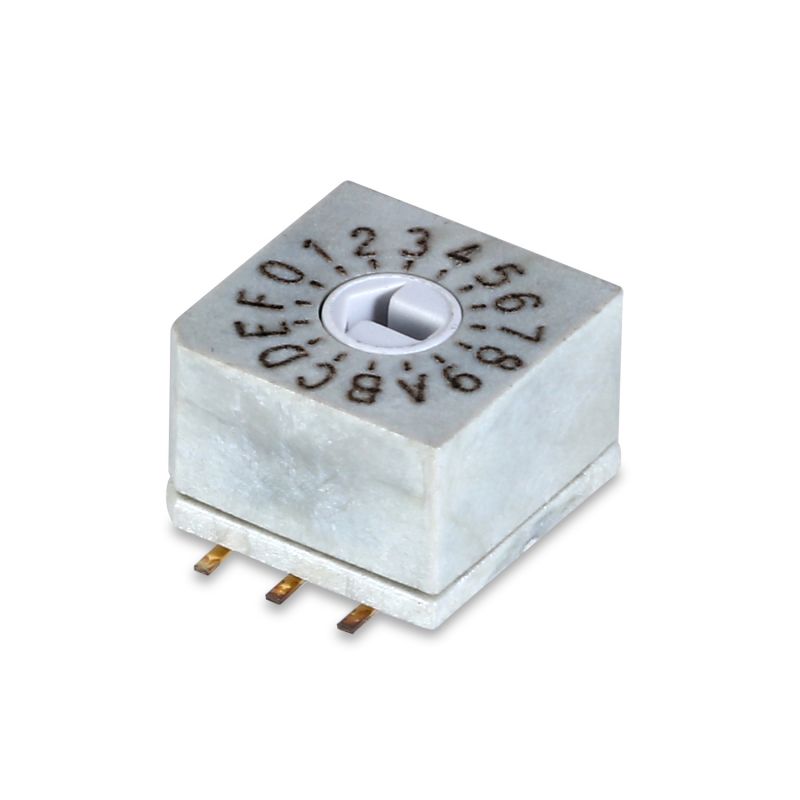

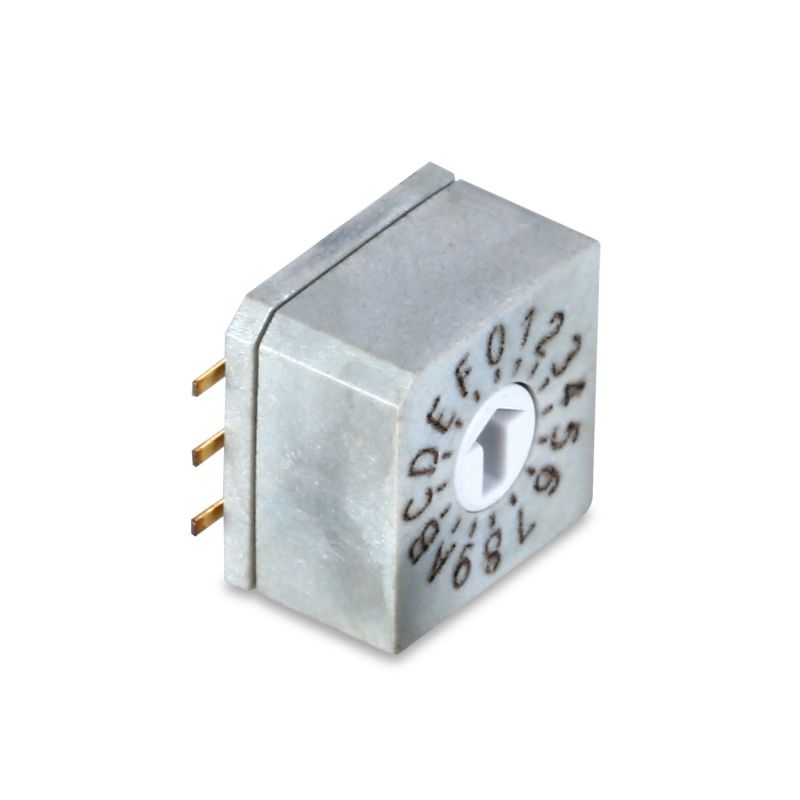

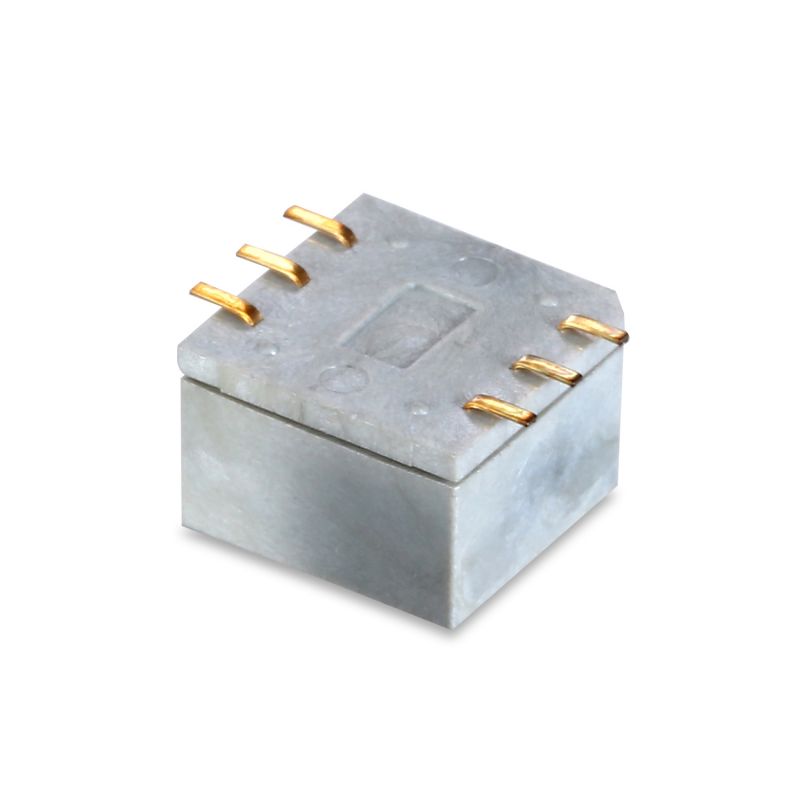

QDR-16S Rotary Encoder Switch, 16-Position 6-Pin Surface Mount (SMT) 10mm*10mm Waterproof IP67 Rotary Switch-Rotary Dip Switch
- Available in various positions: 4, 6, 8, 10, 16
- Supports various pin types: Through-Hole Technology (THT), Surface Mount Device (SMD), Angled
- IP67 rated (waterproof, dustproof)
- Compliant with RoHS standards
- High reliability with gold-plated contacts
1. Model: QDR-16S
2.Specifications: 10mm x 10mm x 6.8mm
3. Operating Force: 700gf
4. Lifespan: 10,000 cycles
5.Packaging: 50PCS per tube/600PCS per reel
6. Package Type: 6-pin Surface Mount (SMT)
7. Pin Configuration: 8421 with Common C pin
8. Color: Gray-white base
9. Functionality:The QDR-16S rotary switch allows users to rotate the handle to the desired position, reflecting BCD coded output values.
10. Applications: Industrial and automation, high-end consumer electronics, mobile and transportation, medical technology and life sciences, aerospace and defense, smart infrastructure, and other leading fields.
11. Waterproof Rating:IP67
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10mm*10mm*6.8mm |  |
150mA, DC 42V -200mA,DC 42V | 80mΩ Max | 10,000 steps | 700gf Max |
Request Samples
|
