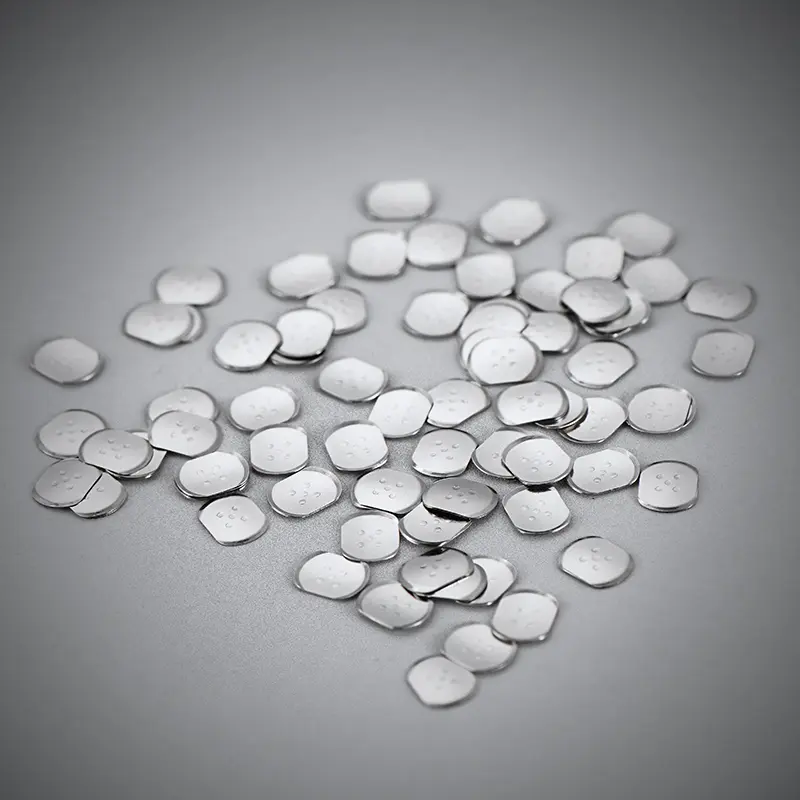

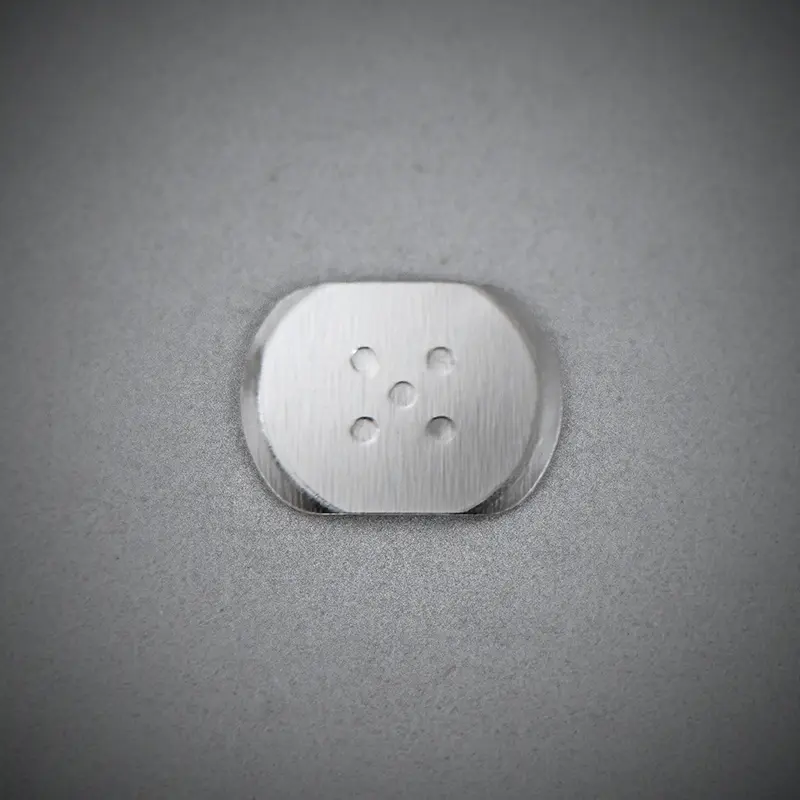

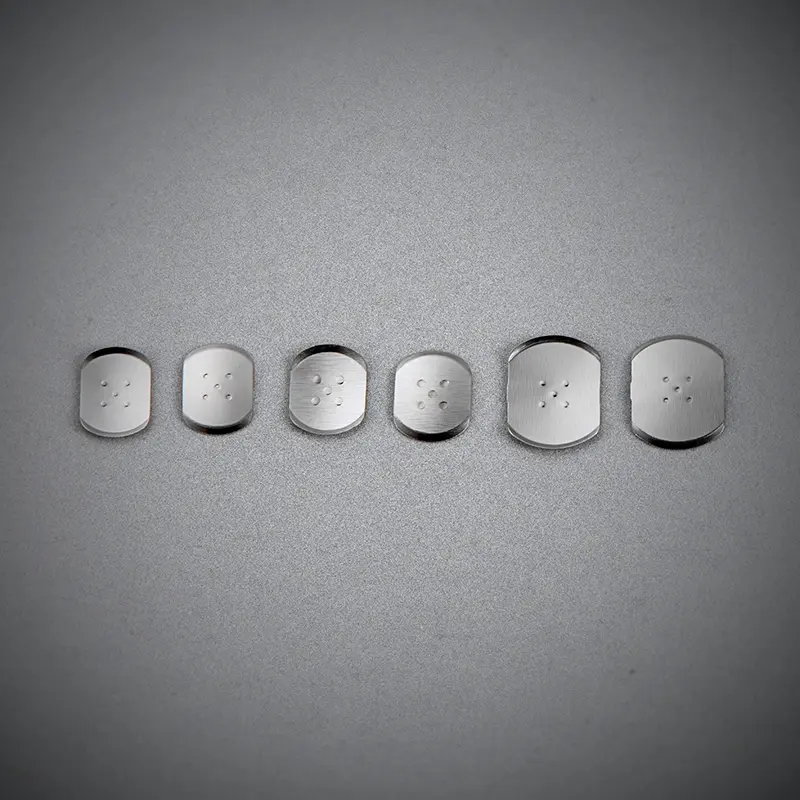

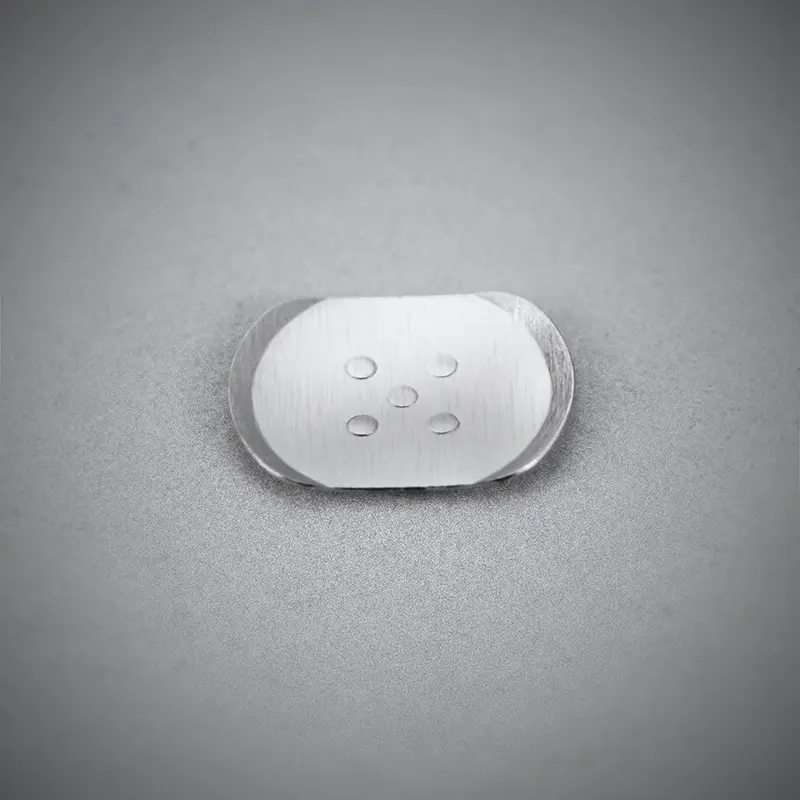

Oval-shaped (elliptical) shrapnel, 4.0mm * 2.8mm, nickel-plated dome sheet.

High-life 5-contact dust-proof metal sheet push switch

Product Characteristics

Tactile metal domes are momentary switch contacts that become normally open switches when used with a printed circuit board, flex circuit, or membrane. They are placed on printed circuit boards through Film Transparent adhesive tape

Catalog Download

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

Verification code*

Overview

- Ratings (Resistive Load): 0.1A, 50V DC

- Contact Resistance: 1Ω or less

- Insulation Resistance: 10MΩ or more

- Withstanding Voltage: 100V AC for 1 minute

Mechanical

- Operating Force: 1.0N to 2.5N (φ4mm, φ4.5mm, φ5mm)

- Lifespan: 500,000 to 1,000,000 cycles

Applications

Used in input key switches for:

- Small remote controls

- Portable AV equipment

- Educational repeaters

- Quiz buzzers

- Security system intercoms

- Access control devices

- Mobile phones and smartphones

- PDAs

- Game controllers

- Medical devices

- Automotive central control systems

Parameters

Product	Model	Diameter	Datasheet	Height	Dotted	Lifetime	Stroke	Strength	Specs
	SD-X4B13-5D-DN	3.95±0.05mm*2.80 +0.05/ -0.00mm		0.24±0.03mm	5 dimples	500000(cycles)	0.18±0.03mm	130±20gf	Specs Product model : SD-X4B13-5D-DN Model :SD-X4B13-5D-DN Foot width :2.80 +0.05/ -0.00mm Outer diameter :3.95±0.05mm Arc height :0.18±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.55 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
	SD-X4B16-5D-DN	3.95±0.05mm*2.80 +0.05/ -0.00mm		0.245±0.03mm	5 dimples	500000(cycles)	0.19±0.03mm	160±20gf	Specs Product model : SD-X4B16-5D-DN Model :SD-X4B16-5D-DN Foot width :2.80 +0.05/ -0.00mm Outer diameter :3.95±0.05mm Arc height :0.19±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.55 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
	SD-X4B18-5D-DN	3.95±0.05mm*2.80 +0.05/ -0.00mm		0.255±0.03mm	5 dimples	500000(cycles)	0.20±0.03mm	180±20gf	Specs Product model : SD-X4B18-5D-DN Model :SD-X4B18-5D-DN Foot width :2.80 +0.05/ -0.00mm Outer diameter :3.95±0.05mm Arc height :0.20±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.55 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf

*Swipe the table left and right on the mobile phone to view all

Oval-shaped (elliptical) shrapnel, 4.0mm * 2.8mm, nickel-plated dome sheet.
