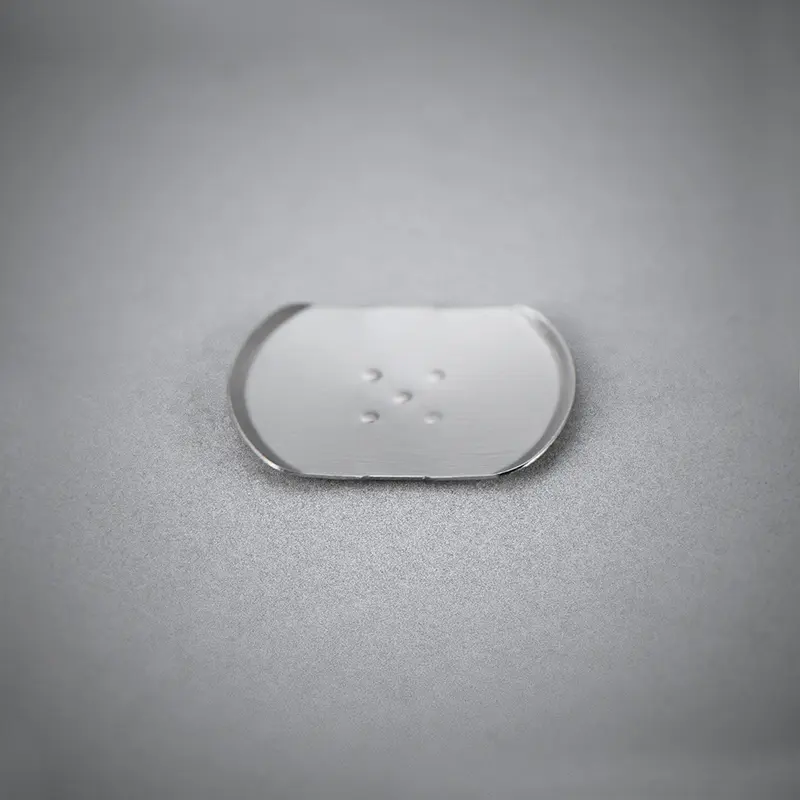

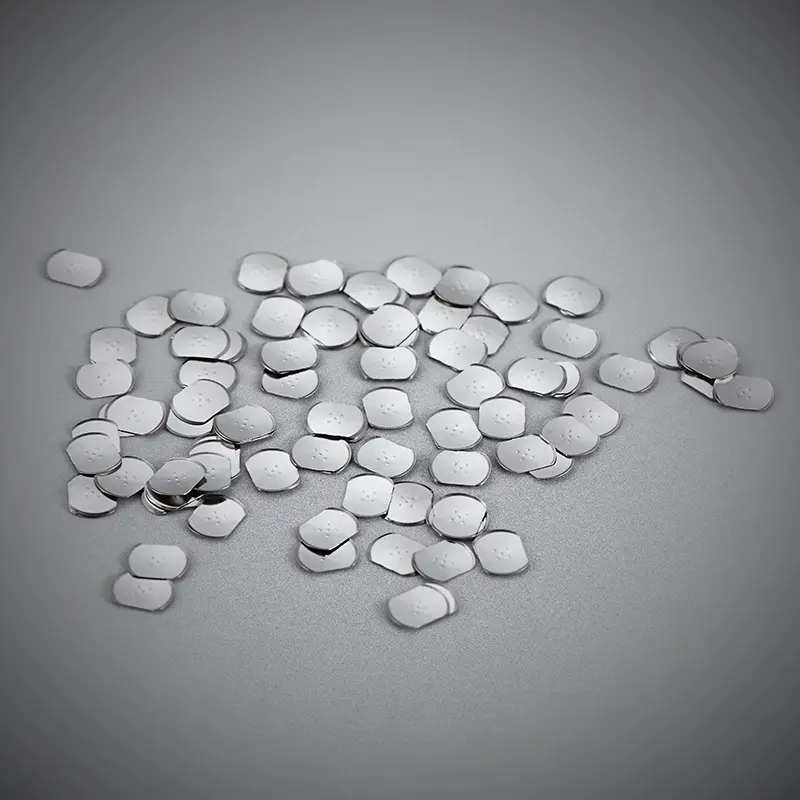

Waist-shaped (oval) metaldome5.0mmx3.7mm nickel-plated domes

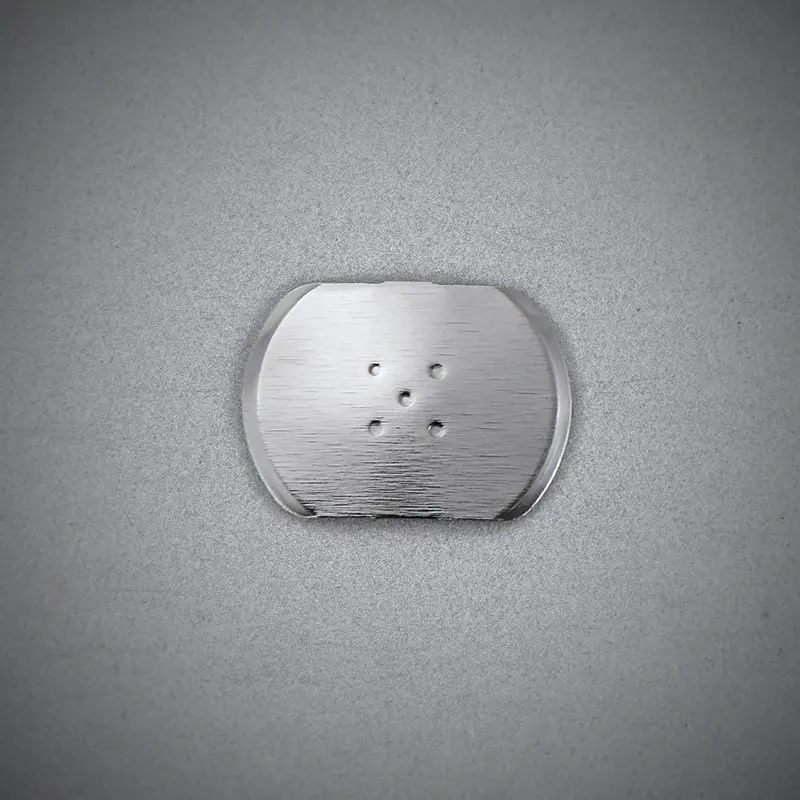

Nickel-plated waist-shaped metal dome with 5 contact points and dust-proof switch.

Product Characteristics

Tactile metal domes are momentary switch contacts that become normally open switches when used with a printed circuit board, flex circuit, or membrane. They are placed on printed circuit boards through pressure-sensitive adhesive tape, captured in a pocket design。

Catalog Download

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

Verification code*

Overview

Features

- Ratings (Resistive Load): 0.1A, 50V DC

- Contact Resistance: 1Ω or less

- Insulation Resistance: 10MΩ or more

- Withstanding Voltage: 100V AC for 1 minute

Mechanical

- Operating Force: 1.0N to 2.5N (φ4mm, φ4.5mm, φ5mm)

- Lifespan: 500,000 to 1,000,000 cycles

Applications

Used in input key switches for:

- Small remote controls

- Portable AV equipment

- Educational repeaters

- Quiz buzzers

- Security system intercoms

- Access control devices

- Mobile phones and smartphones

- PDAs

- Game controllers

- Medical devices

- Automotive central control systems

Oval Round Metal Dome Pad Design-PCB

Parameters

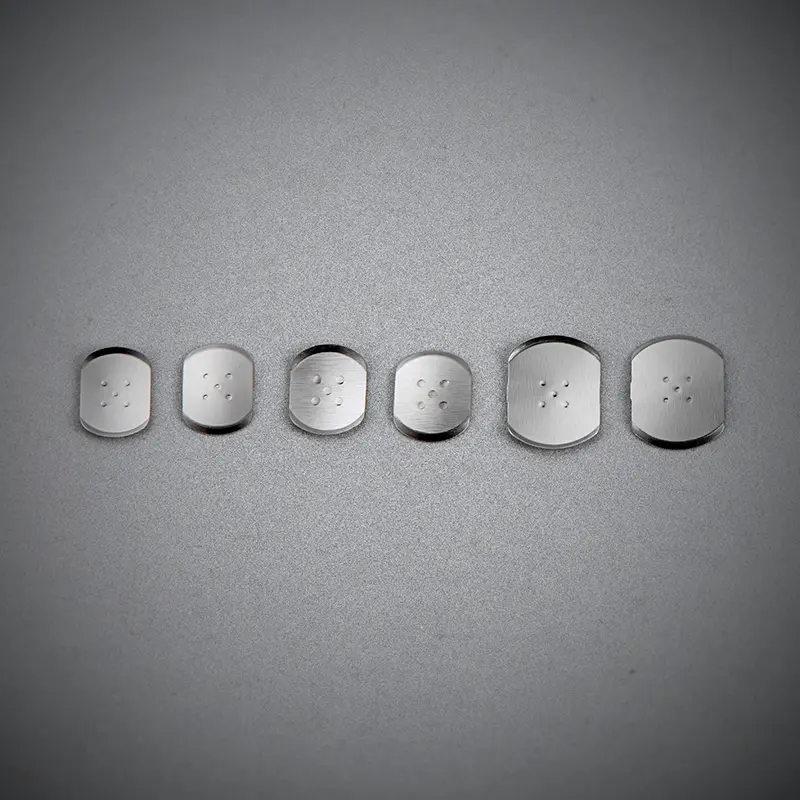

Product	Model	Diameter	Datasheet	Height	Dotted	Lifetime	Stroke	Strength	Specs

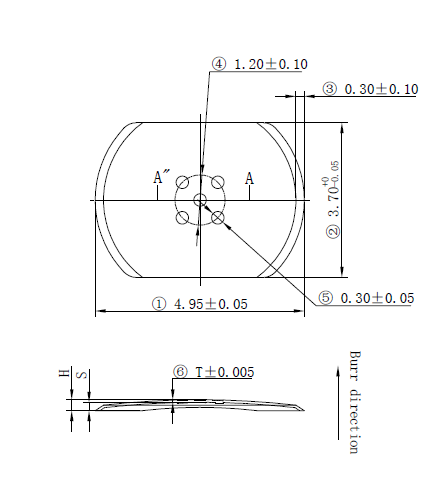

	SD-X5B13-5D-DN	4.95±0.05*3.70 +0 /-0.05mm		0.26±0.03mm	5 dimples	500000(cycles)	0.20±0.03mm	130±20gf	Specs Product model : SD-X5B13-5D-DN Model :SD-X5B13-5D-DN Foot width :3.70 +0/-0.05mm Outer diameter :4.95±0.05mm Arc height :0.20±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.06 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
	SD-X5B14-5D-DN	4.95±0.05*3.70 +0 /-0.05mm		0.27±0.03mm	5 dimples	500000(cycles)	0.21±0.03mm	140±20gf	Specs Product model : SD-X5B14-5D-DN Model :SD-X5B14-5D-DN Foot width :3.70 +0/-0.05mm Outer diameter :4.95±0.05mm Arc height :0.21±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.06 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
	SD-X5B15-5D-DN	4.95±0.05*3.70 +0 /-0.05mm		0.28±0.03mm	5 dimples	500000(cycles)	0.22±0.03mm	150±20gf	Specs Product model : SD-X5B15-5D-DN Model :SD-X5B15-5D-DN Foot width :3.70 +0/-0.05mm Outer diameter :4.95±0.05mm Arc height :0.22±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.06 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
	SD-X5B16-5D-DN	4.95±0.05*3.70 +0 /-0.05mm		0.28±0.03mm	5 dimples	500000(cycles)	0.22±0.03mm	160±20gf	Specs Product model : SD-X5B16-5D-DN Model :SD-X5B16-5D-DN Foot width :3.70 +0/-0.05mm Outer diameter :4.95±0.05mm Arc height :0.22±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.06 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
	SD-X5B18-5D-DN	4.95±0.05*3.70 +0 /-0.05mm		0.29±0.03mm	5 dimples	500000(cycles)	0.23±0.03mm	180±20gf	Specs Product model : SD-X5B18-5D-DN Model :SD-X5B18-5D-DN Foot width :3.70 +0/-0.05mm Outer diameter :4.95±0.05mm Arc height :0.23±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.06 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
	SD-X5B20-5D-DN	4.95±0.05*3.70 +0 /-0.05mm		0.29±0.03mm	5 dimples	500000(cycles)	0.23±0.03mm	200±20gf	Specs Product model : SD-X5B20-5D-DN Model :SD-X5B20-5D-DN Foot width :3.70 +0/-0.05mm Outer diameter :4.95±0.05mm Arc height :0.23±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.06 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
	SD-X5B22-5D-DN	4.95±0.05*3.70 +0 /-0.05mm		0.30±0.03mm	5 dimples	500000(cycles)	0.24±0.03mm	220±20gf	Specs Product model : SD-X5B22-5D-DN Model :SD-X5B22-5D-DN Foot width :3.70 +0/-0.05mm Outer diameter :4.95±0.05mm Arc height :0.24±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.06 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
