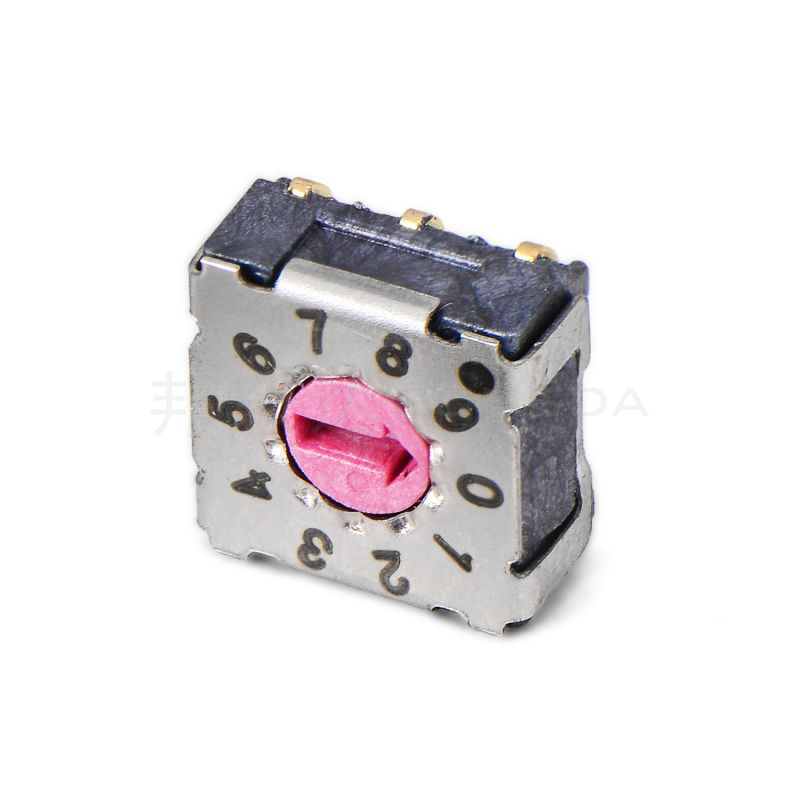

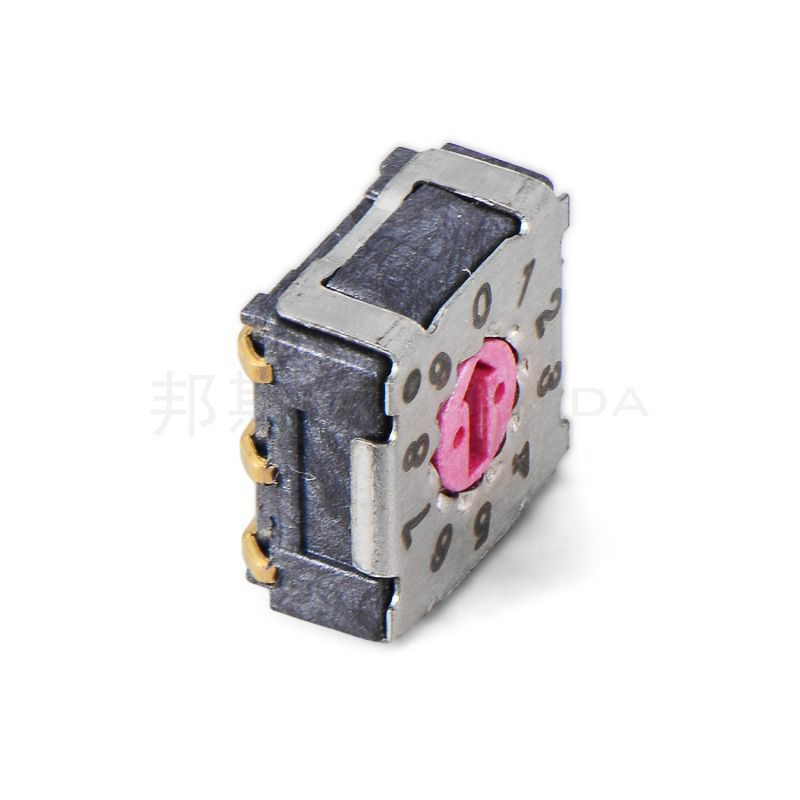

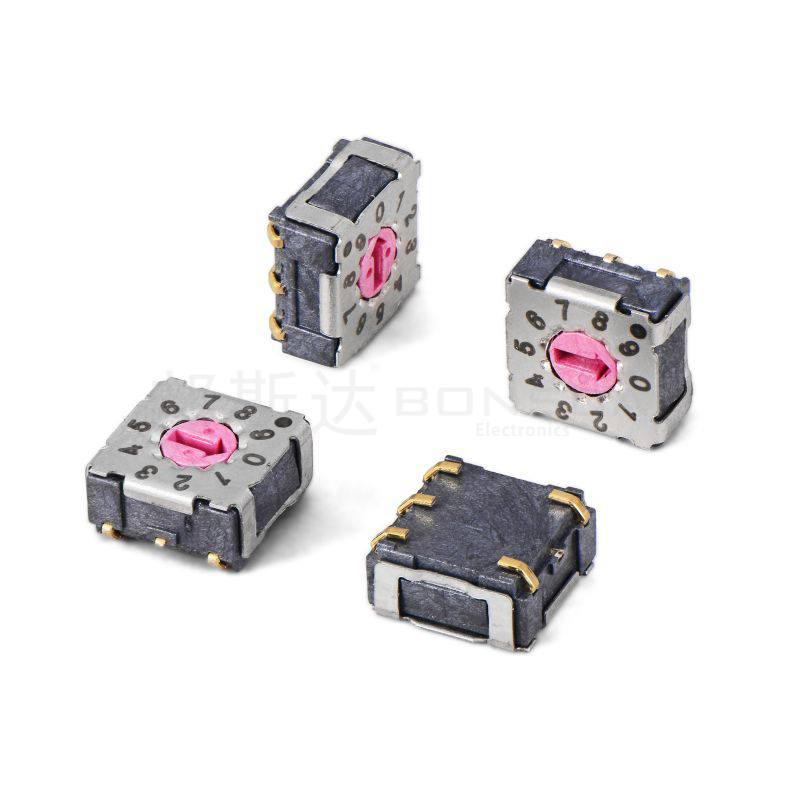

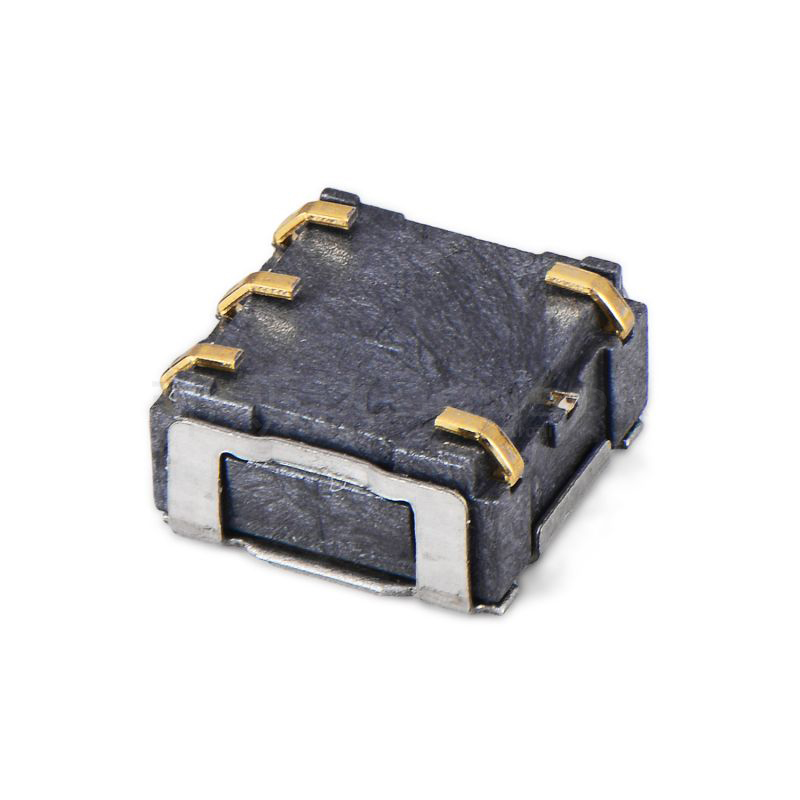

MSDR-10JC Mini Rotary DIP Switch Internal Solder Patch 10 Level Encoding Switch

7.4 * 7.4 Rotating 10 gears BCD binary encoding method R code (positive code) Sungmun brand

Product Characteristics

-Ultra thin and high-density installation

-Various gears of 4, 10, and 16

-THT, SMD, Angled various foot shapes

-IP67 (waterproof, dustproof)

-Compliant with RoHS standards

-High reliability gold-plated contacts

Contact Us

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

*
*
*
*

Verification code*

Can't see clearly? Click to change the verification code

Overview

1. Life cycle : 25,000 steps

2. Insulation Resistance : 100MΩ Min at DC 250V

3. Rating : 150mA, DC 42V (Switching)

4. Contact Resistance : 80mΩ Max

5. Operating Force : 250gf Max

200mA, DC 42V (None-Switching)

6. Sealing : IP67 (Dust & Water proof)

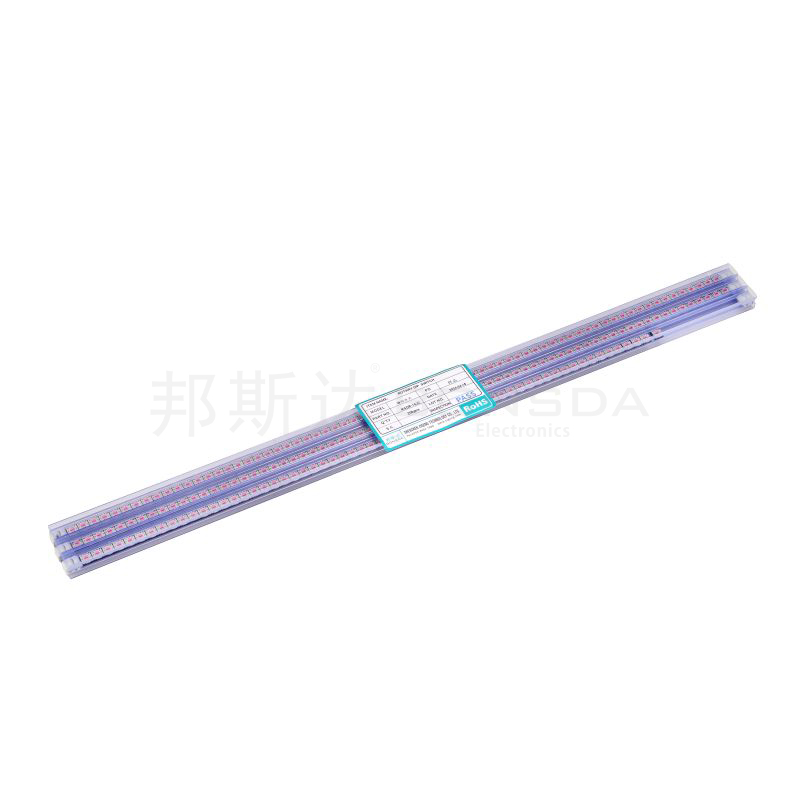

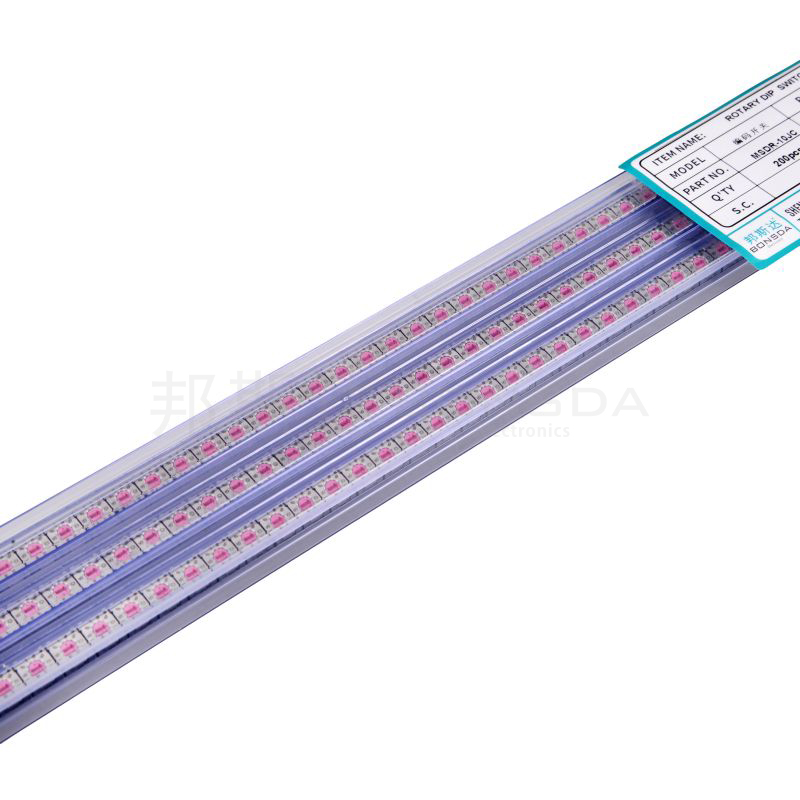

7. Packing : 70pcs Tube// 1300pcs Reel Packing

8. Main Uses: Automation Equipment, Control Devices, Home Appliances, Security Equipment, Audio Devices, etc. Customers use it in electronic cigarettes(Vaping devices & pods, disposable & Vaping components etc) products.

Parameters

Specifications	Spes	Rated current	Contact resistance	Life cycles	Travel	Trip force	Request Samples

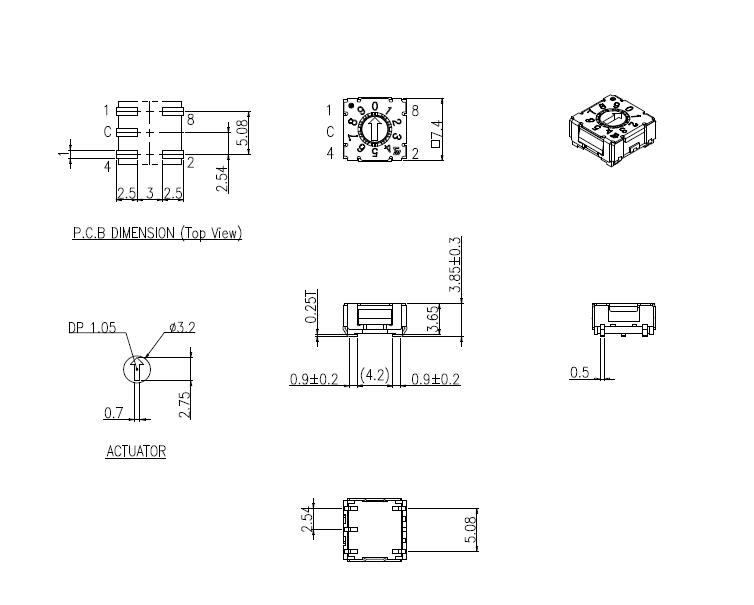

7.47.43.65/MSDR-10JC		150mA,DC42V-200mA，DC24V	80mΩ Max	25000steps		250gf Max	Request Samples

*Swipe the table left and right on the mobile phone to view all

Product · Application

Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.

Product application portfolio in the field of industrial automation
Rotary DlP Switch Application
Main/Sensor Boards for Skin Care
Rotary DlP Switch Application
DC Motor Governor
Rotary DlP Switch Application
