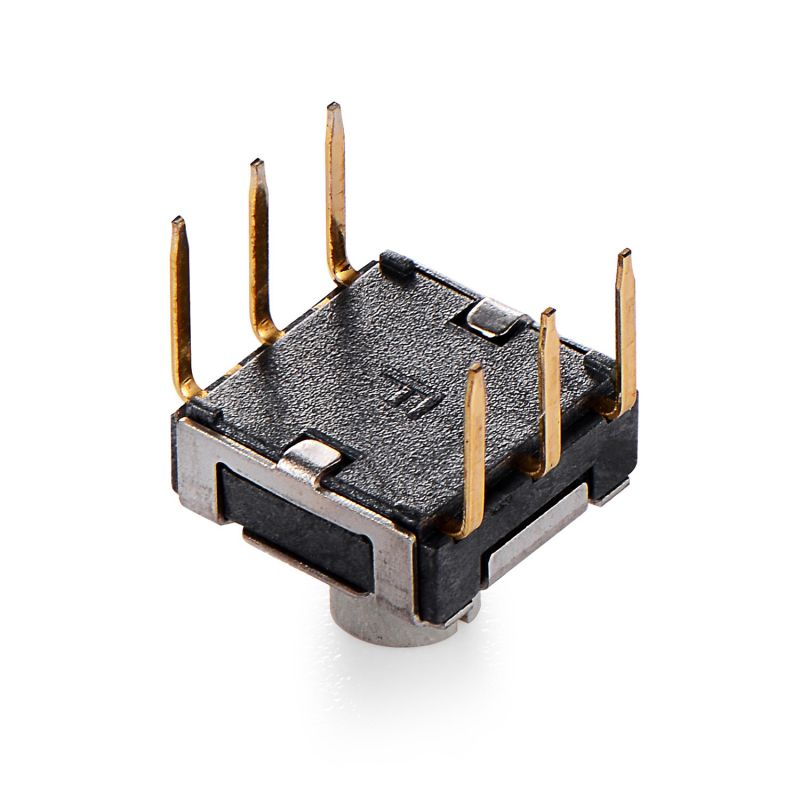

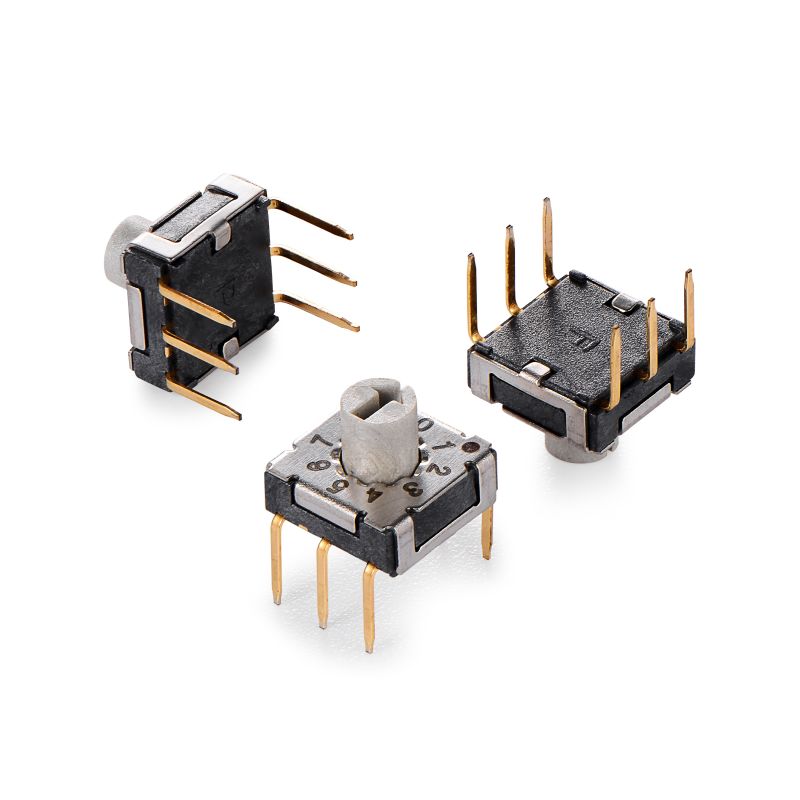

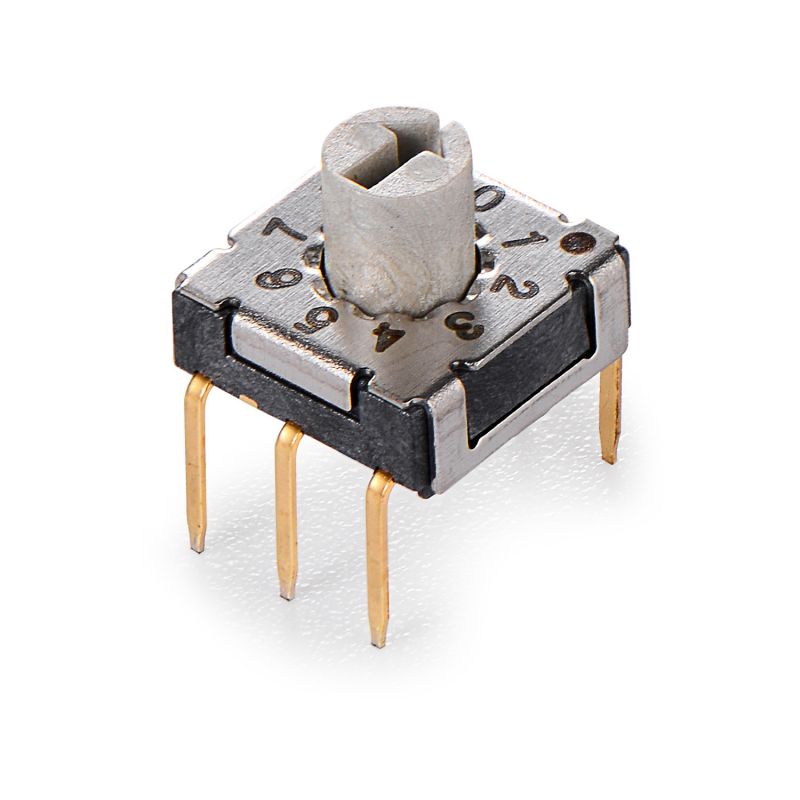

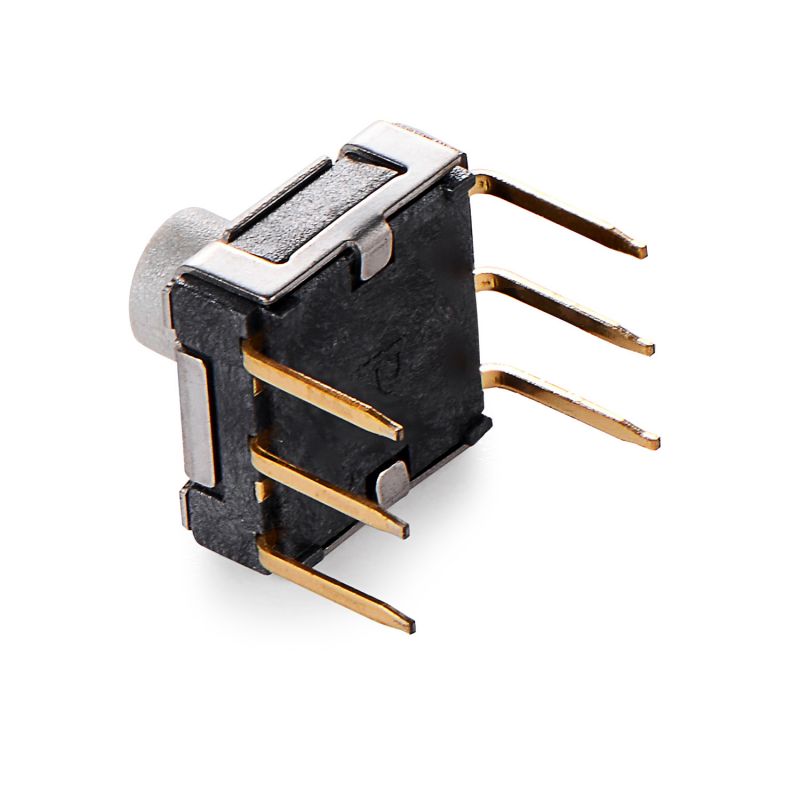

GSPR-10 Mini Rotary Encoder Switch

GSPR-10 Rotary Dip Switch

Product Characteristics

- Available in various positions: 4, 6, 8, 10, 16

- Supports various pin types: THT, SMD, Angled

- IP67 rated for waterproof and dustproof capabilities

- Compliant with RoHS standards

- High reliability with gold-plated contacts

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

Verification code*

Overview

1. Life cycle : 25,000 steps

2. Insulation Resistance : 100MΩ Min at DC 250V

3. Rating : 100mA, DC 50V (Switching)

4. Contact Resistance : 80mΩ Max

5. Operating Force : 200gf Max

200mA, DC 42V (None-Switching)

6. Sealing : IP67 (Dust & Water proof)

7. Packing : 70pcs Tube// 1300pcs Reel Packing

8. Main Uses: Automation Equipment, Control Devices, Home Appliances, Security Equipment, Audio Devices, etc. Customers use it in electronic cigarettes(Vaping devices & pods, disposable & Vaping components etc) products.

Parameters

Specifications	Spes	Rated current	Contact resistance	Life cycles	Travel	Trip force	Request Samples

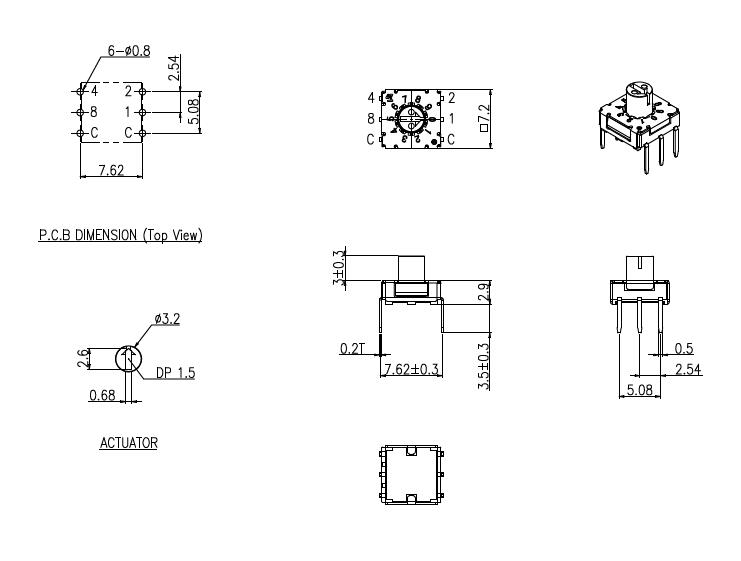

7.2mm*87.62mm		100mA, DC 50V	100mΩ Max	25,000 steps		200gf Max	Request Samples

*Swipe the table left and right on the mobile phone to view all

Product · Application

Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.

Product application portfolio in the field of industrial automation
Rotary DlP Switch Application
Main/Sensor Boards for Skin Care
Rotary DlP Switch Application
DC Motor Governor
Rotary DlP Switch Application
