Cross-Shaped Imported Metal Dome Switch GX06240 – 6mm Diameter 240gf Tactile Snap Disc

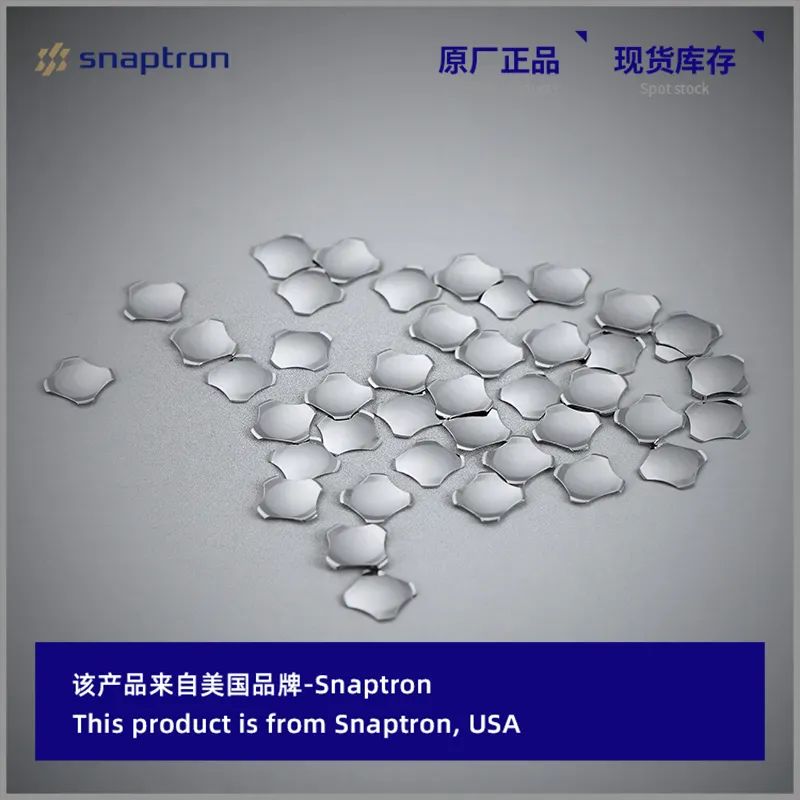

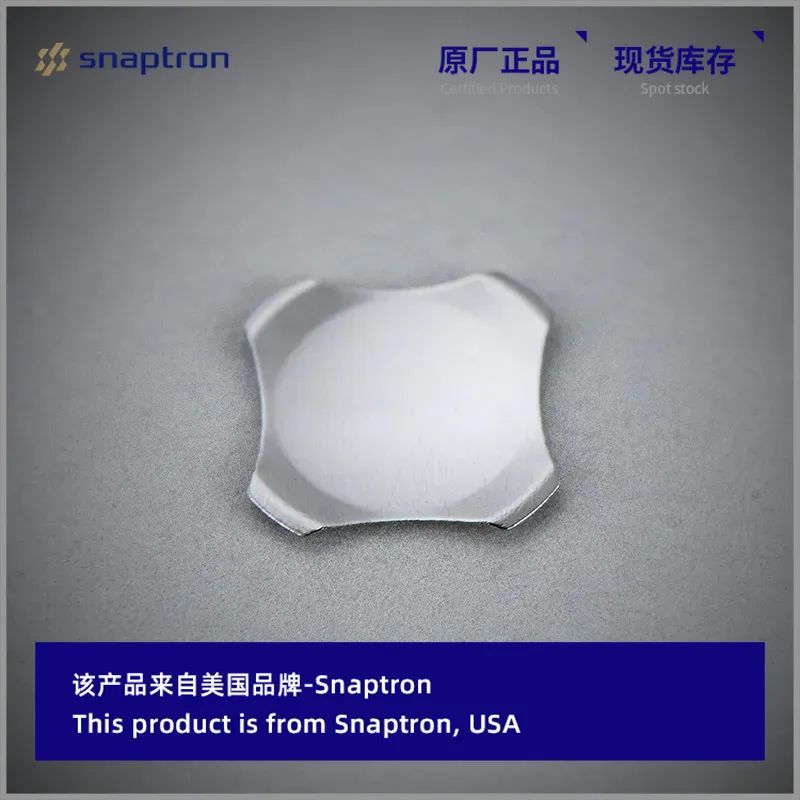

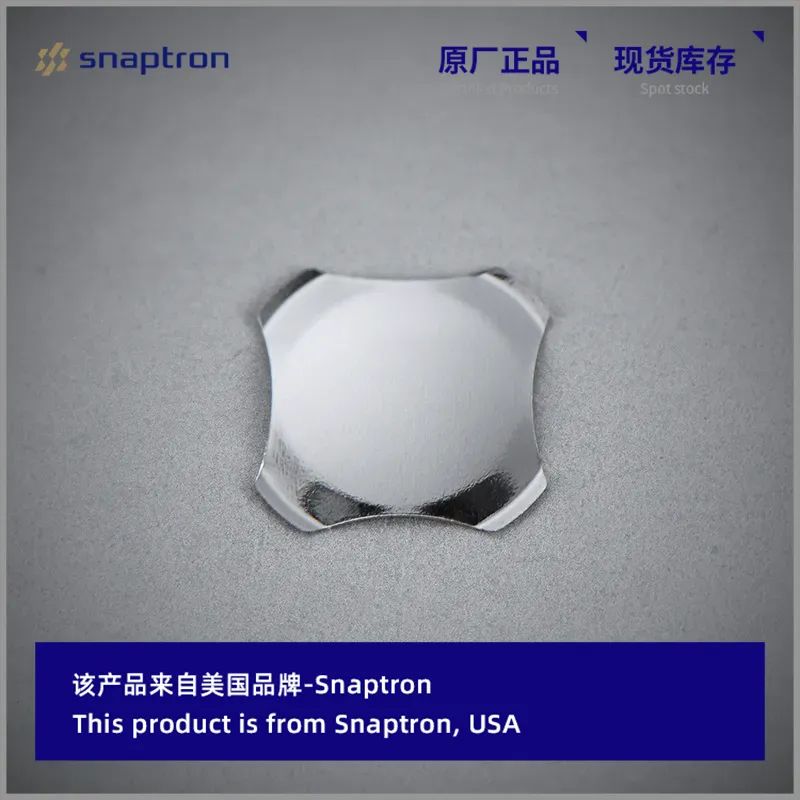

This GX06240 model is a premium imported metal dome switch featuring precision cross-shaped structure design. With standard 6mm diameter size, it delivers accurate 240gf actuation force. Manufactured from high-grade stainless steel, the switch offers an extended lifespan (≥1 million cycles) and complies with ROHS/REACH environmental certifications.
The product has undergone rigorous 48-hour salt spray testing to ensure reliable performance in demanding environments. Its patented Snaptron dome structure provides crisp, definitive tactile feedback while effectively preventing accidental presses. Particularly suitable for gloved operations, this switch is ideal for industrial control equipment, medical device keypads, and automotive central control panels applications.
The GX06240 is a high-performance metal dome switch developed by Snaptron for precision tactile applications. Featuring an imported stainless steel construction with a precision cross-shaped design, this switch offers a standard 6mm diameter size and delivers an accurate 240gf actuation force. Combining exceptional tactile response with reliable mechanical performance, it is specifically engineered for demanding applications in medical devices, industrial controls, and automotive electronics where consistent tactile feedback is critical.

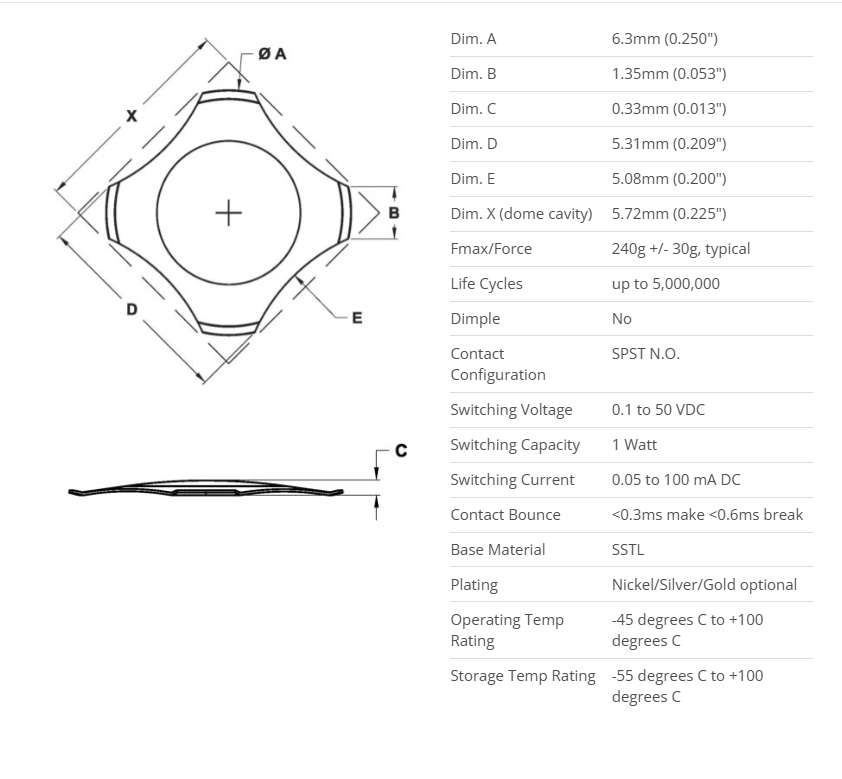

| Product | Model | Diameter | Datasheet | Height | Dotted | Lifetime | Stroke | Strength | Specs |
 |
GX06240 | 6.3mm |  |
0.33mm | No | up to 5,000,000 Cycles | 0.25mm | 240g +/- 30g, typical |
Specs
 Product model : GX06240
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
Metal Dome Switch Application
Metal Dome Switch Application
Metal Dome Switch Application
