8.5mm x 8.5mm Square Tactile Dome 600g Actuation Force Metal Snap Switch
The SQ0860ON metal dome utilizes imported 301/304 stainless steel with gold plating, offering exceptional corrosion resistance (verified by 500-hour salt spray testing). Its 8.5mm×8.5mm square design incorporates patented reinforcement ribs that improve anti-deflection performance by 40%, ensuring operational stability. With precise 600gf±5% actuation force and 0.43mm travel distance, it delivers crisp tactile response. Operating in -40℃ to +85℃ environments, it complies with RoHS 2.0, REACH, and IP67 waterproof standards (when used with gaskets). Ideal for harsh applications including industrial controls, automotive electronics, and medical devices, it exceeds 1 million actuation cycles. Compatible with both soldering and conductive adhesive mounting methods, with documentation support for rapid design integration.

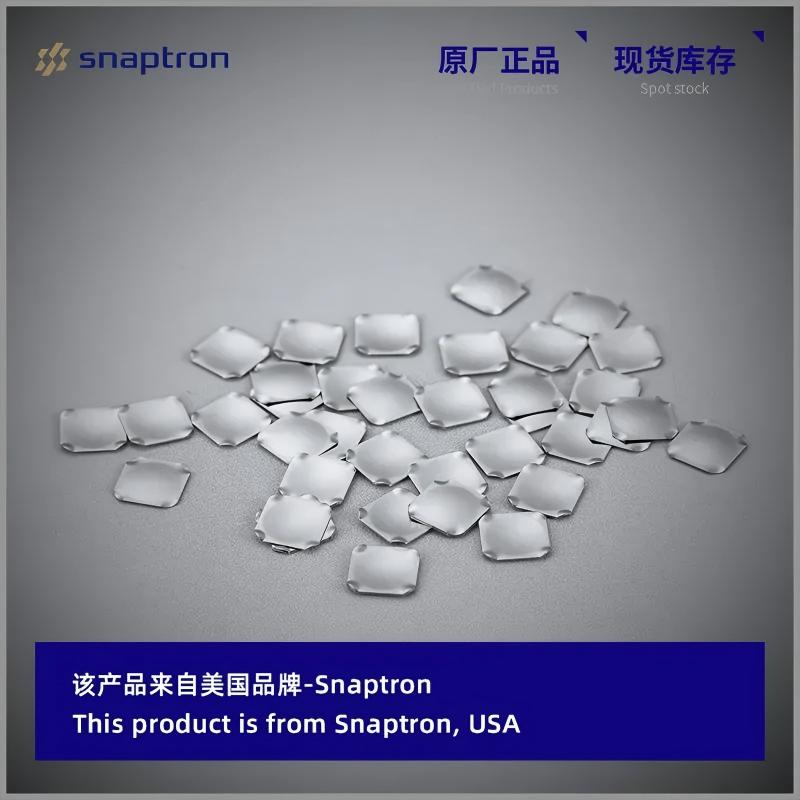

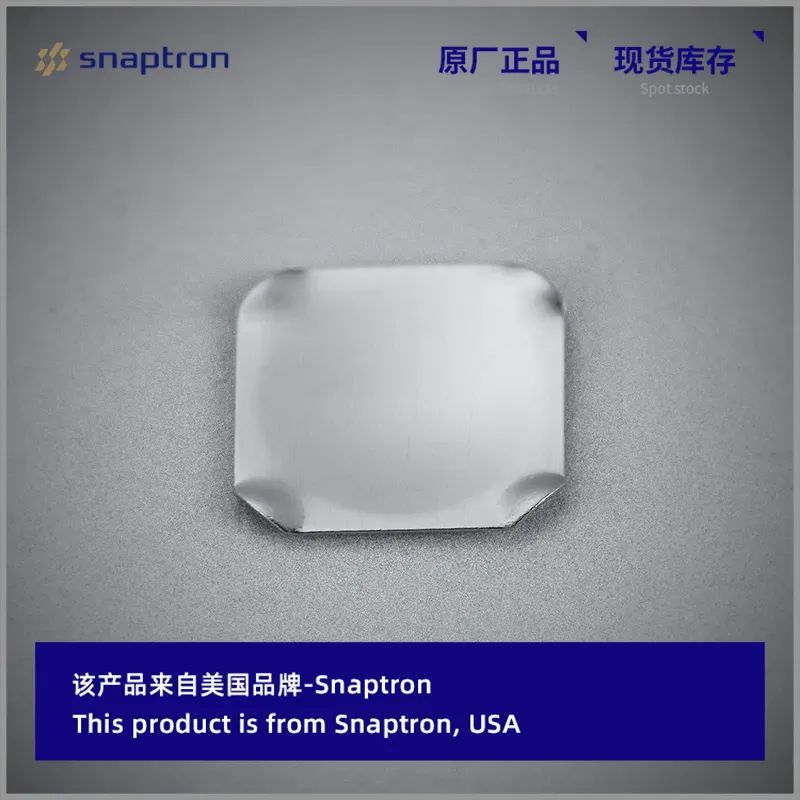

The SQ0860ON Precision Metal Dome is an original Snaptron-brand imported square tactile switch, featuring an 8.5mm×8.5mm standardized design specifically developed for demanding applications including industrial control panels, medical equipment, and automotive electronics. Manufactured through ISO 9001-certified processes, it delivers consistent 600gf actuation force with over 1 million click lifecycles, ensuring precise and reliable tactile feedback.
| Product | Model | Diameter | Datasheet | Height | Dotted | Lifetime | Stroke | Strength | Specs |
 |
SQ08600N | 8.50mm |  |
0.53mm | No Dimple | 10,000,000 Cycles | 0.43mm | 600g ±10% |
Specs
 Product model : SQ08600N
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
