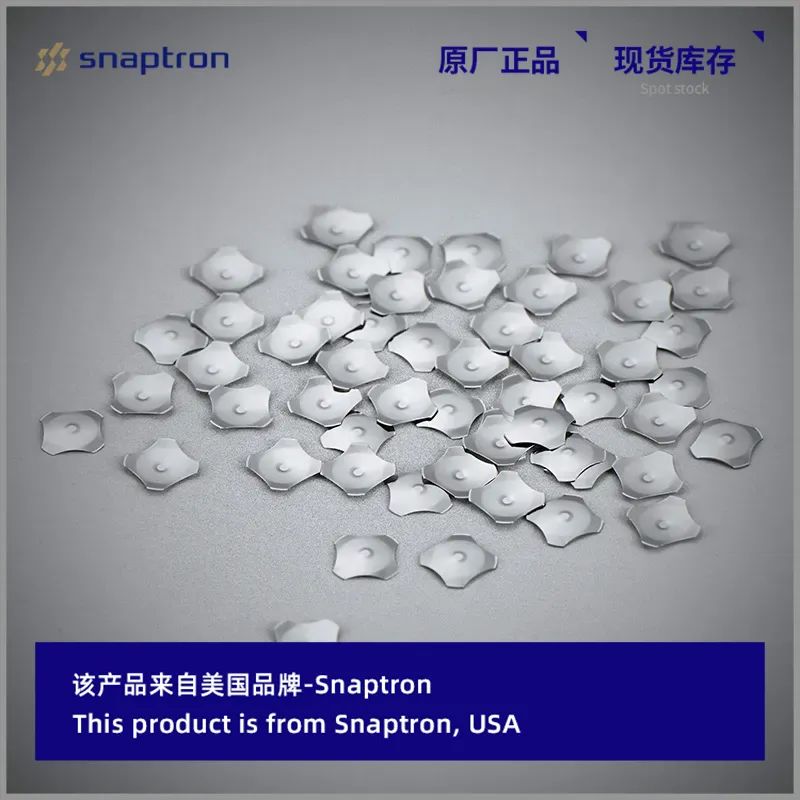

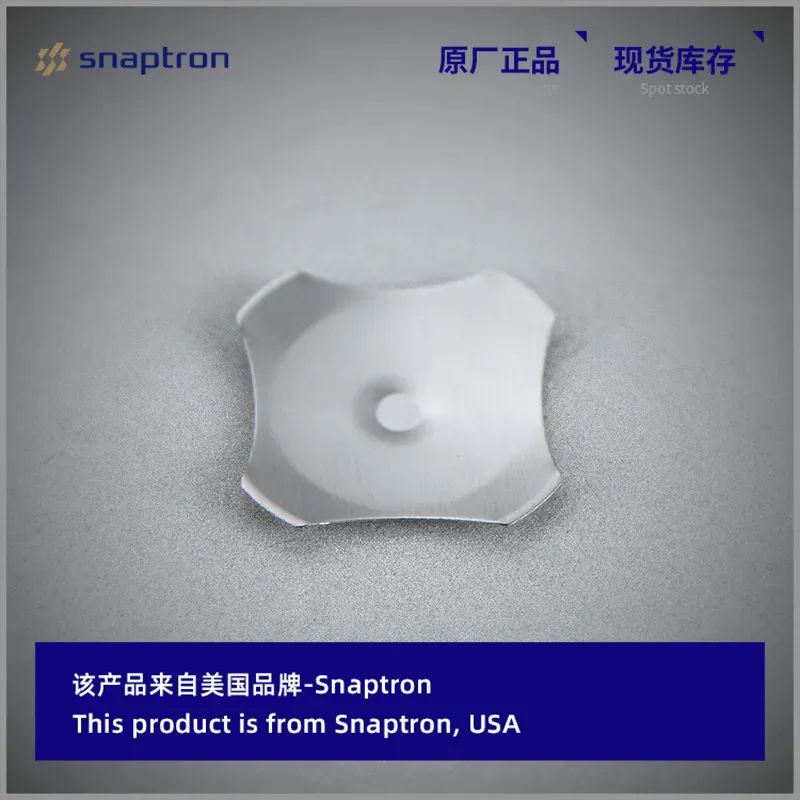

6mm Cross-shaped Dome 240gf Actuation Force Upward Dimple Design
The TCG06240 metal dome outperforms conventional domes through Snaptron's proprietary technology: Its Reverse Dimple™ structure not only serves as a built-in actuator to optimize tactile feedback but also demonstrates exceptional environmental adaptability—when paired with oversized actuators, the actuation force variation remains below 3%, with tactile ratio deviation controlled within ±5%. The unique anti-misalignment design ensures 100% functional reliability even with actuator offsets up to 0.3mm. Constructed from high-grade stainless steel, the dome passes 1 million-cycle endurance testing and 48-hour salt spray testing, supports an extreme operating temperature range of -40℃ to 85℃, and offers optional IP67-rated protection (customizable), providing a durable and stable switching solution for demanding applications.
The TCG06240 is a core model of Snaptron's TC Series standard metal domes, featuring the patented Reverse Dimple™ design that perfectly integrates precision mechanical structure with ergonomic tactile feedback. As an industry-leading metal dome solution, this product utilizes a unique top dimple structure to provide built-in actuation functionality, significantly reducing dependence on external actuators while delivering crisp and consistent tactile response. Its innovative design ensures compatibility with various actuator configurations, maintaining stable actuation force and tactile ratio even under challenging conditions such as assembly misalignment or long-term high-frequency use. It is the ideal choice for keypad systems in industrial controls, automotive electronics, medical devices, and high-end consumer electronics.
| Product | Model | Diameter | Datasheet | Height | Dotted | Lifetime | Stroke | Strength | Specs |
 |
 |
Specs
 Product model :
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
