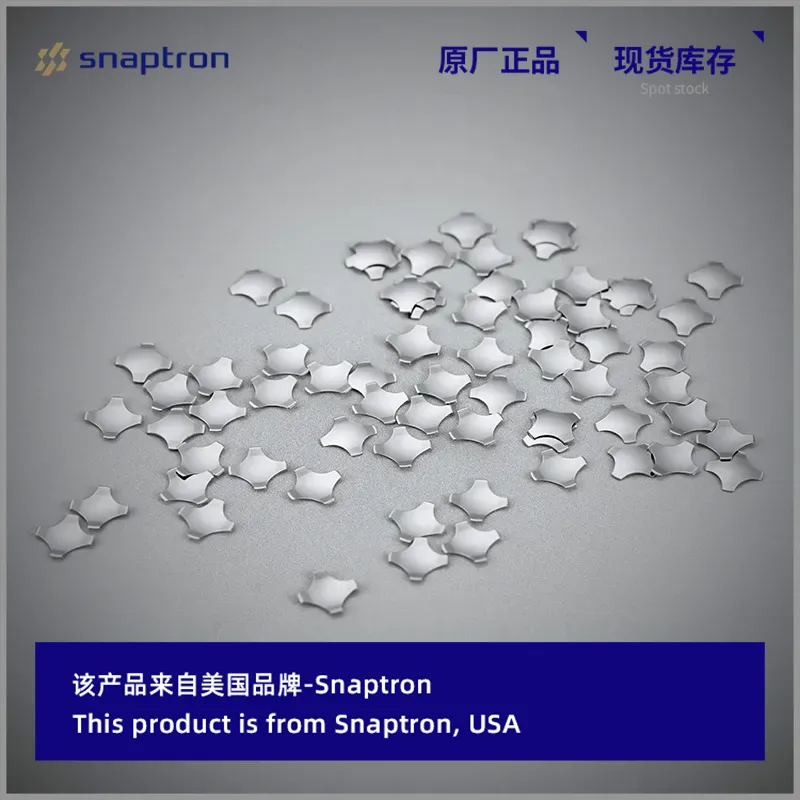

Original U.S. Imported Snap Dome, SNAPTRON Brand, Model F06180, Tactile Metal Dome Switch

Imported Cross-shaped Snap Dome, 6mm Diameter, Non-contact, 180g Force

Product Characteristics

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

Verification code*

Overview

Parameters

Product	Model	Diameter	Datasheet	Height	Dotted	Lifetime	Stroke	Strength	Specs
	F06180	6mm		0.33mm	0 Dimple	5,000,000 Cycles	0.24mm	180g +/- 30g	Specs Product model : F06180 Model :F06180 Foot width :1.22mm Outer diameter :5.59mmx4.98mm Arc height : 2.44mm Voltage :0.1 to 50 VDC Current :0.05 to 100 mA DC Material : SSTL/0.08mm Plating :Nickel/Silver/Gold optiona Work temperature :-45 degrees C to +100 degrees C Storage temperature : apply download pdf

*Swipe the table left and right on the mobile phone to view all

Product · Application

Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
