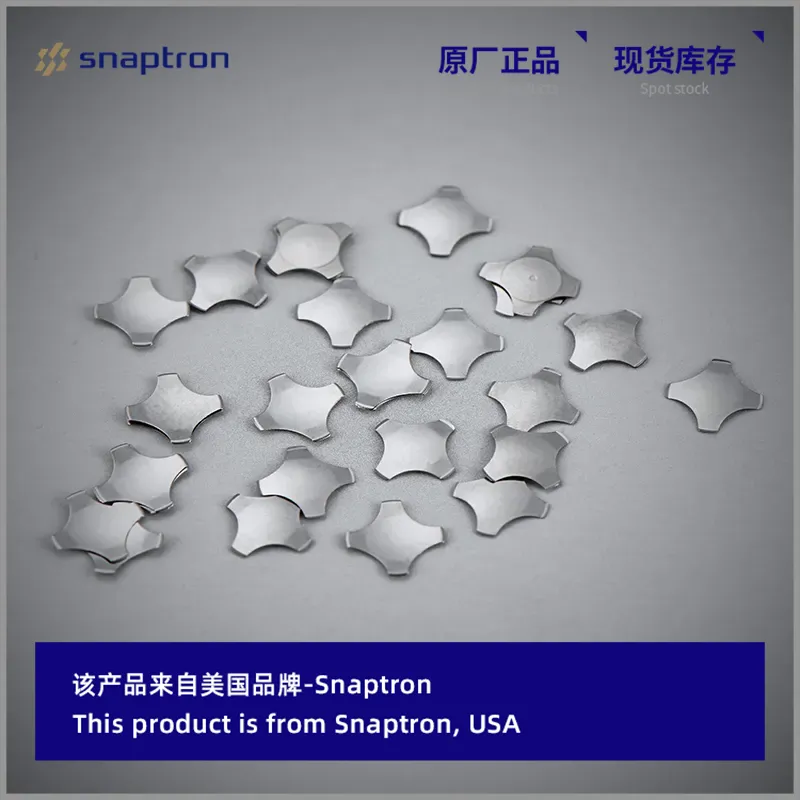

Original Imported Snap Dome, Snaptron Brand, Model F06130, Tactile Metal Dome Switch

Imported Cross-shaped Spring Plate, 6mm Diameter, Non-contact, 130g Force

Product Characteristics
Online Message
After filling in your contact information, return to unlock the catalog and drawing download function.
  • *
  • *
  • *
  • *
Verification code*
Overview
Parameters
Product Model Diameter Datasheet Height Dotted Lifetime Stroke Strength Specs
F06130 6mm 0.30mm 0 Dimple 5,000,000 Cycles 0.22mm 130g +/- 30g
Product model : F06130
  • Model :F06130
  • Foot width : 1.22mm
  • Outer diameter :5.59mmx4.98mm
  • Arc height : 2.44mm
  • Voltage :DC 0.1 to 50 VDC
  • Current :0.05 to 100 mA
  • Material : SSTL/0.08mm
  • Plating :Nickel/Silver/Gold optional
  • Work temperature :-45 degrees C to +100 degrees C
  • Storage temperature :-55 degrees C to +100 degrees C
*Swipe the table left and right on the mobile phone to view all
close

Product · Application

Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
