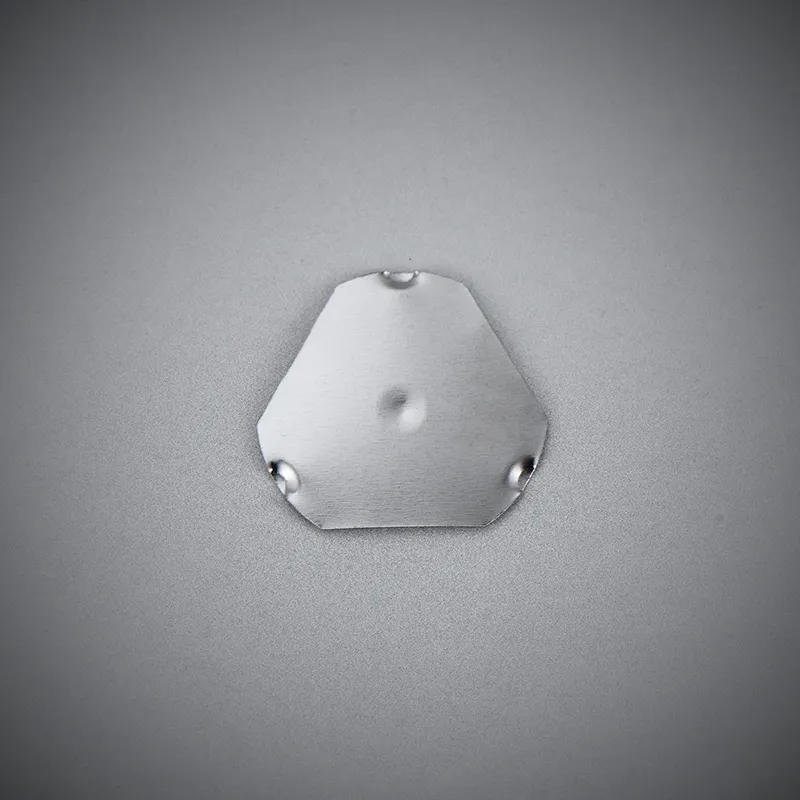

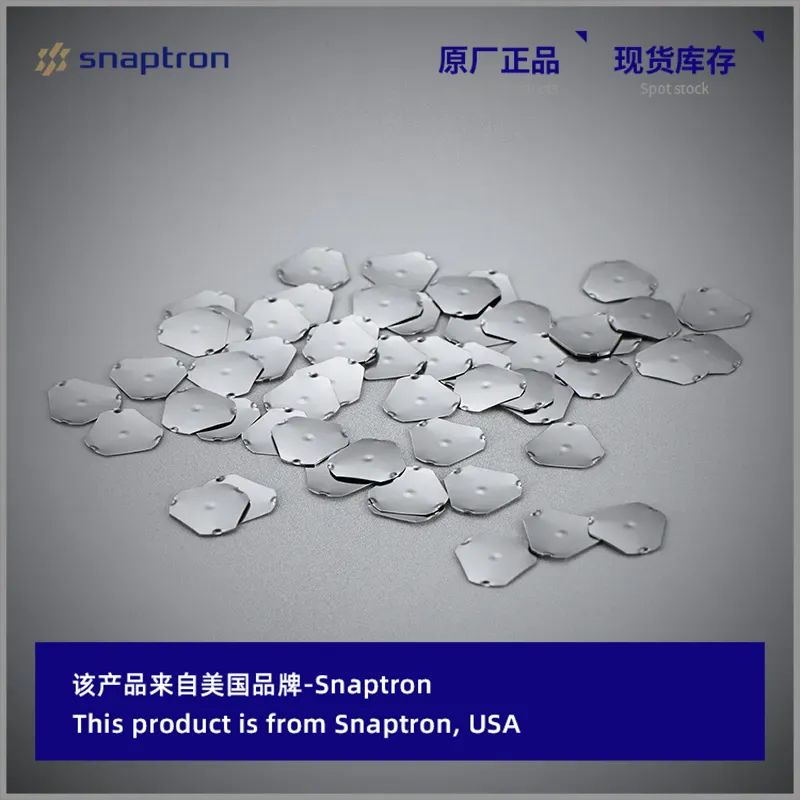

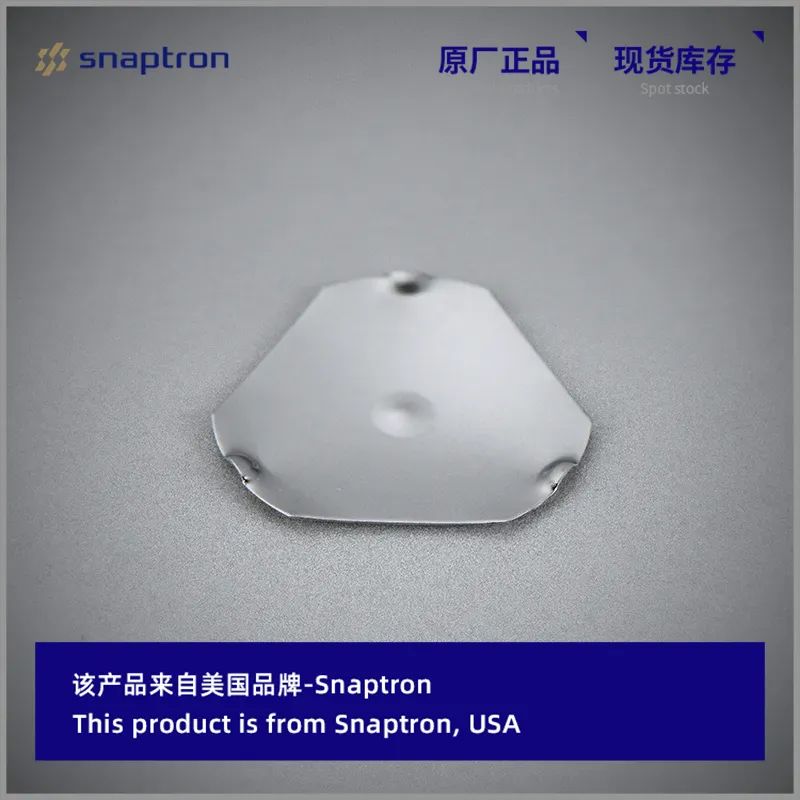

Snaptron,Triangle Metal Domes Triangle tactile,Metal pellets with a diameter of 12mm and a force of 230gf.

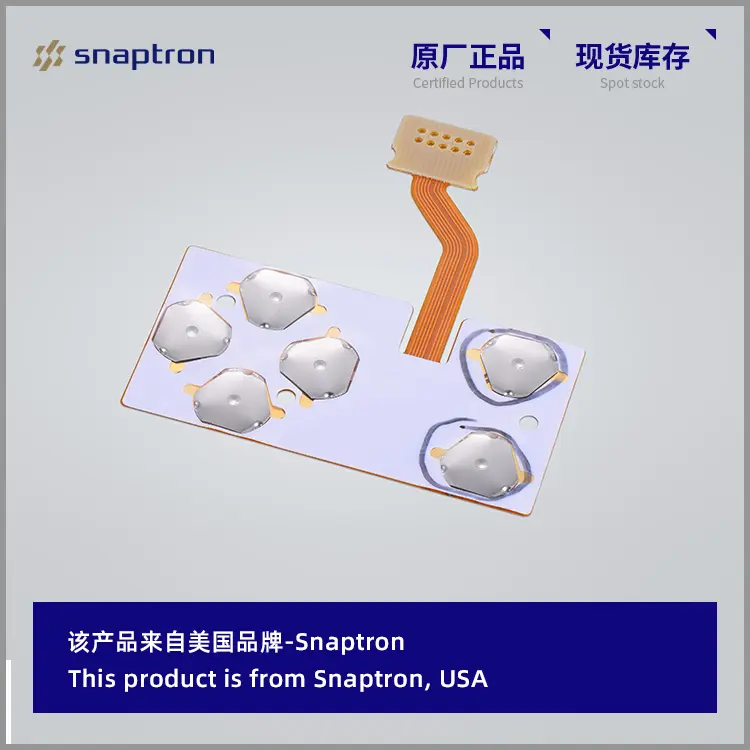

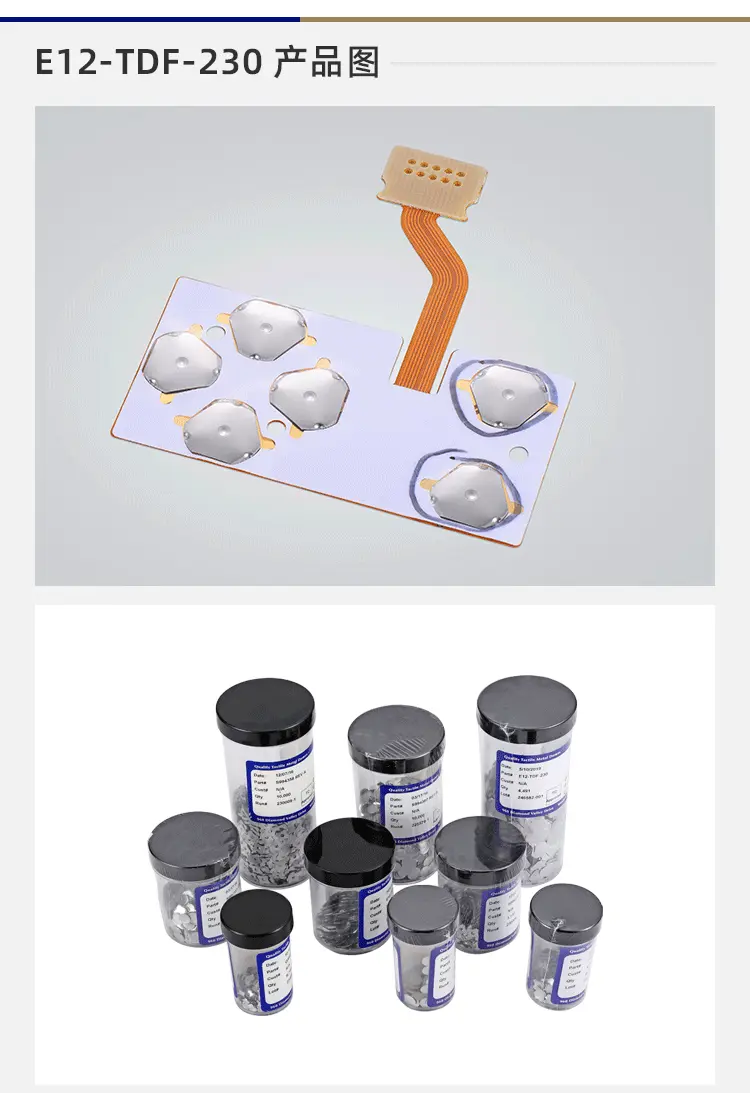

E12-TDF-230 Metal Dome Array on Polyester CarrierThe E12-TDF-230 metal dome array is arranged on a polyester carrier with a pressure-sensitive adhesive (PSA) on the back. This standard PET adhesive material can meet customers' needs for adhering the entire sheet to the device's button area. Our layout design is highly suitable for electronic product applications, saving costs and labor time during circuit board assembly and improving production efficiency. Employees only need to peel off the release liner PET adhesive material, align with the product's positioning holes, and stick the product onto your circuit board or flexible circuit.
Snaptron is a manufacturer specializing in the production of dome switches,Triangle Metal Domes Triangle tactile， located in the United States, with over 30 years of experience in dome switch research and production. Snaptron serves various industries worldwide, with products applied in fields such as medical, automotive, military, aerospace, smart cards, and membranes.
E12-TDF-280/E12-TDF-340/E12-TDF-400/ E12-TDF-450
| Product | Model | Diameter | Datasheet | Height | Dotted | Lifetime | Stroke | Strength | Specs |
 |
E12-TDF-230 | 12mm |  |
0.66mm | 4D | 1,000,000(Cycles) | 230g +/- 40g, typical |
Specs

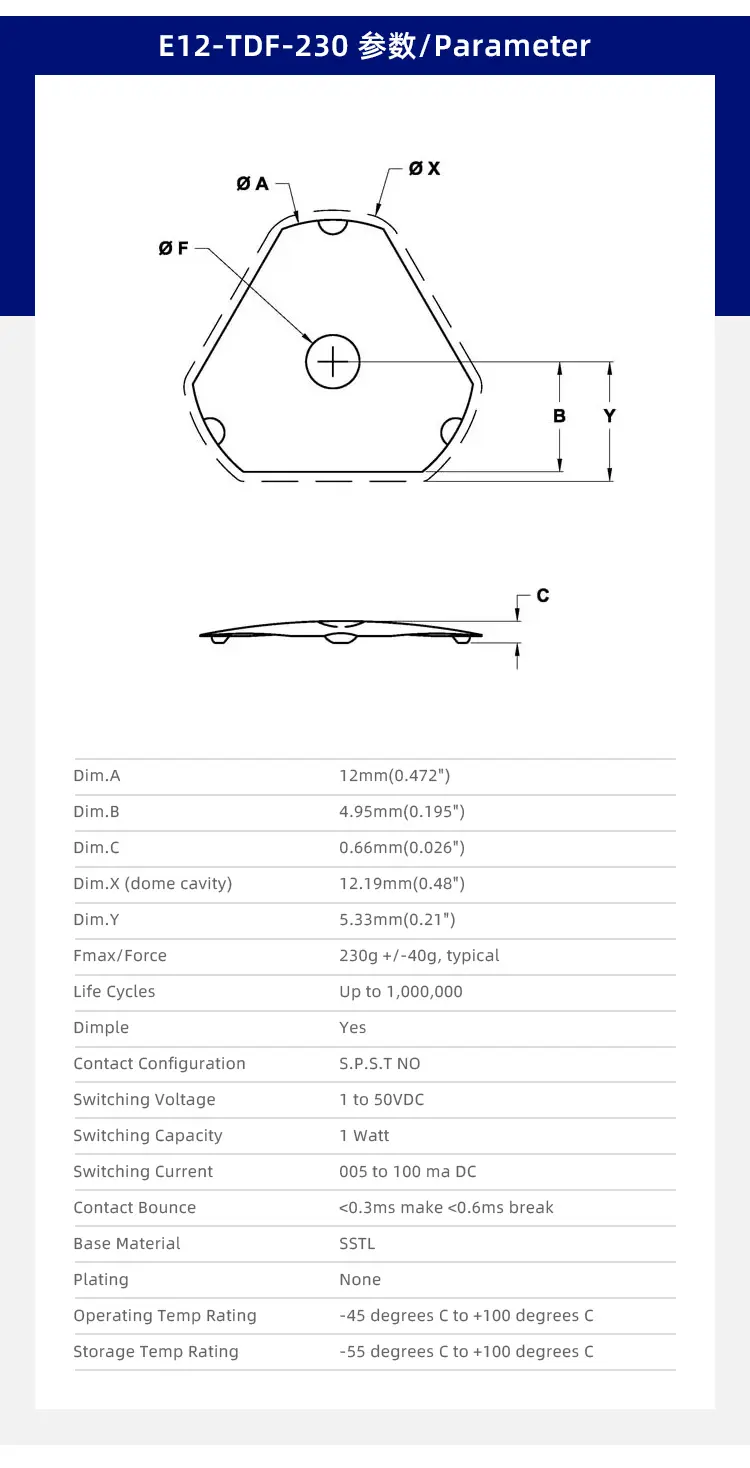

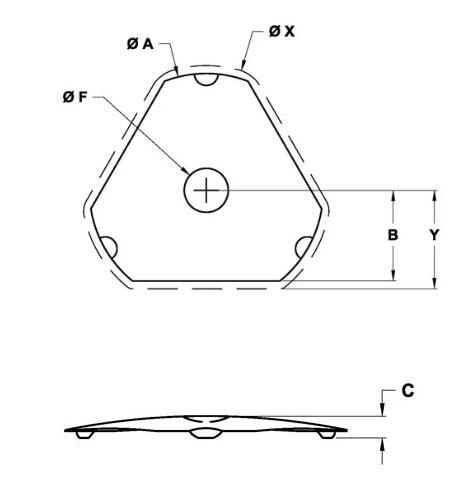

 Product model : E12-TDF-230
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
