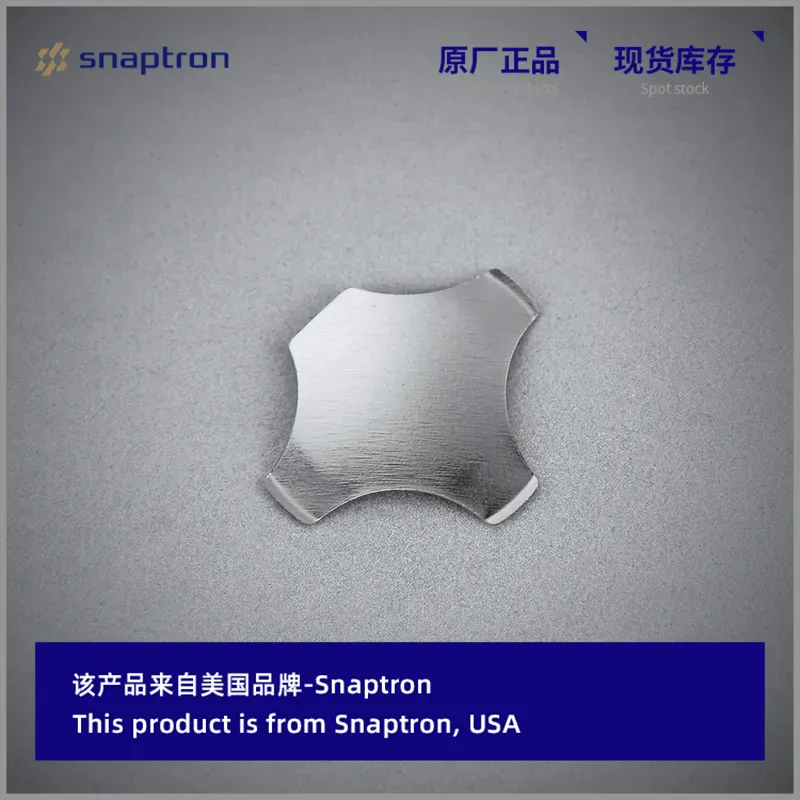

Dome with a diameter of 6.0mm, 3-legged trimmed, imported metal dome, actuation force 180g
A tactile metal dome is a type of momentary switch contact. When used in conjunction with printed circuit boards (PCBs), flexible circuits, or membranes, it functions as a normally open switch. Typically, the metal dome is secured to the PCB with a transparent adhesive film. In its resting state, the tactile metal dome remains in contact with the outer edge of the main pad. When pressed briefly, it makes contact with the secondary path, thereby closing the circuit. Tactile metal domes are available in a variety of shapes and actuation forces to suit different application requirements. They can be used as mechanical switches, electrical contacts, or tactile switches, and are widely utilized in various electronic devices.
Introduction to Snaptron Brand
Snaptron is a manufacturer specializing in the production of metal dome switches, headquartered in the United States. With over 30 years of experience in the research, development, and manufacturing of metal domes, Snaptron has established itself as a leader in the industry.
Snaptron serves a wide range of industries worldwide, with its products being utilized in sectors such as medical, automotive, military, aerospace, smart cards, and membrane switches.
Renowned for its exceptional product quality, Snaptron is recognized as one of the top-tier manufacturers in the metal dome industry, setting high standards for reliability and performance.
| Product | Model | Diameter | Datasheet | Height | Dotted | Lifetime | Stroke | Strength | Specs |
 |
DT06180N | 6.0mm |  |
0.36mm | W | Up to 5,000,000 | 0.28mm | 180g +/- 30g |
Specs

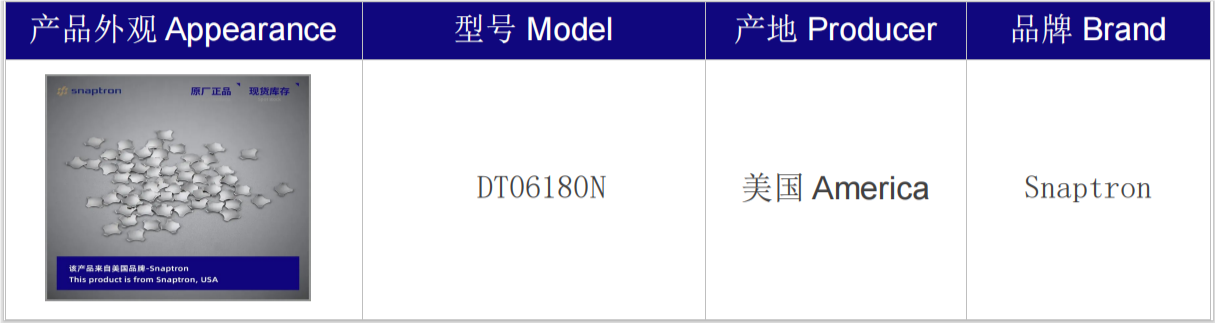

 Product model : DT06180N
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
