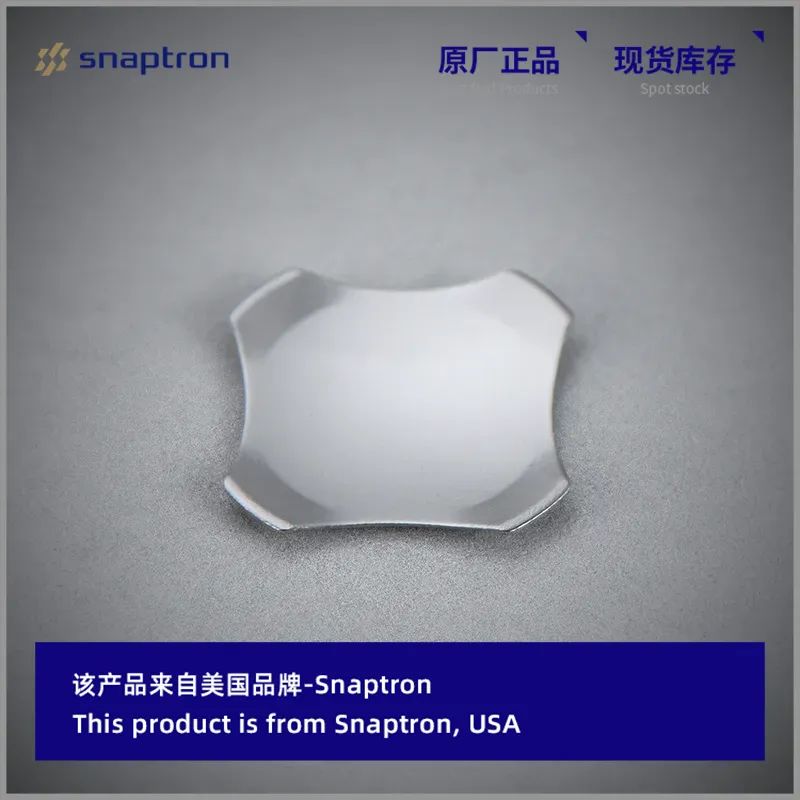

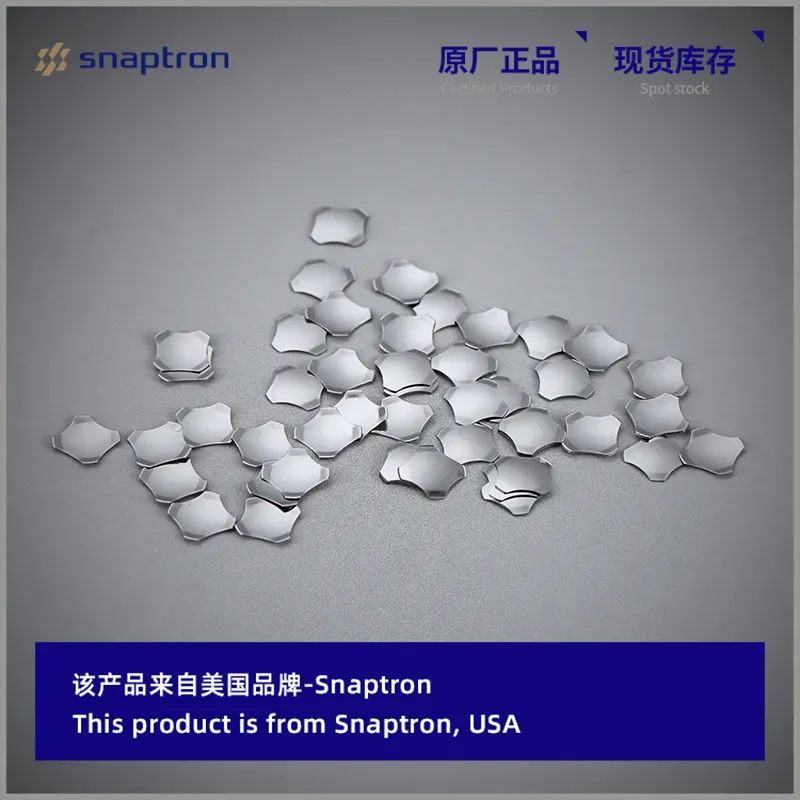

Imported Snaptron Cross-Shaped Metal Dome 7mm Diameter × 400gf Force High-Cycle PCB-Mount Tactile Dome
Crafted from premium stainless steel, the Snaptron GX07400 series metal dome features a precision cross-shaped design (7.0mm±0.1mm diameter) with 400g operating force (typical, ±10% tolerance), delivering crisp and consistent tactile feedback. Specifically engineered for PCB mounting applications, this product is compatible with standard SMT processes and requires PET adhesive film for secure PCB attachment.
The Snaptron GX07400 series is a premium metal dome component specifically engineered for precision electronic devices. Its core value lies in delivering reliable electromechanical connections and accurate tactile feedback solutions.As an SMT-compatible component requiring PET adhesive film for installation, this product represents the technical standard for industrial-grade tactile switches. It is ideally suited for application scenarios demanding stringent operational precision and environmental stability.

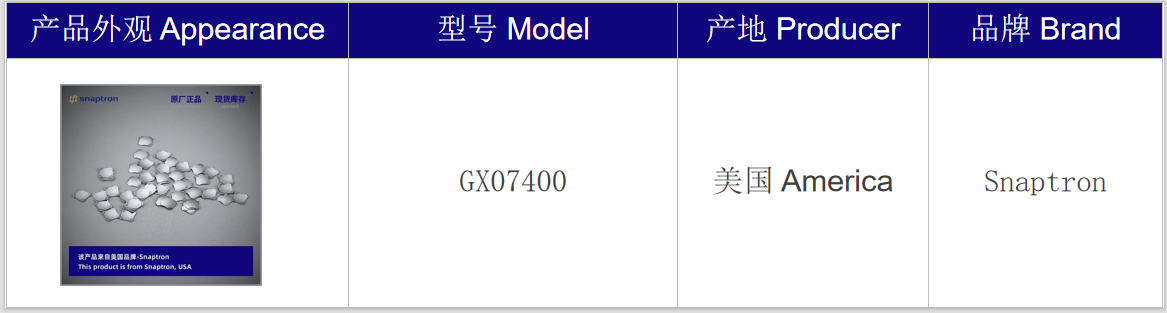

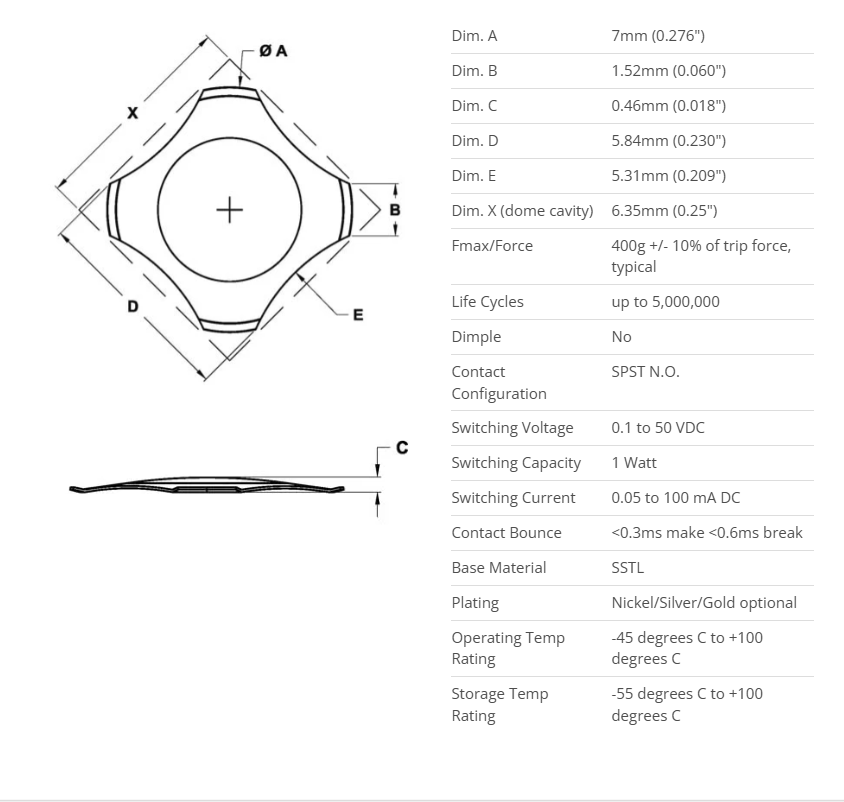

| Product | Model | Diameter | Datasheet | Height | Dotted | Lifetime | Stroke | Strength | Specs |
 |
GX07400 | 7mm |  |
0.46mm | No | up to 5,000,000 Cycles | 0.36mm | 400g +/- 10% of trip force, typical |
Specs
 Product model : GX07400
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
Metal Dome Switch Application
Metal Dome Switch Application
Metal Dome Switch Application
