Membrane Switch Panel
Key Differentiators for BSD-5010-R3:
✔ Military-Grade Durability
MIL-STD-810H compliant
Operates at -50°C to 125°C
✔ Smart Connectivity
Integrated IoT-ready RS485 interface
Optional NFC pairing
✔ Advanced Tactility
3-stage programmable force feedback (50g/100g/200g)
0.1mm actuation precision
Shenzhen ZiGeng Technology | Premium Membrane Switch Panel Manufacturers Since 2010,ISO 13485 & IATF 16949 Certified | 100+ Patented Technologies，By Shenzhen ZiGeng - Trusted by Global Fortune 500 OEMs,Membrane Switch Panel Manufacturer | ZiGeng Tech | BSD-5010-R3.Shenzhen ZiGeng Technology - Top Chinese membrane switch panel manufacturer. Features BSD-5010-R3 with IP69K, 10M cycles & IoT connectivity. Request OEM quote.
Premium Membrane Switch Panel Solutions by Shenzhen ZiGeng Technology
As specialized membrane switch panel manufacturers, Shenzhen ZiGeng Technology Co., Ltd delivers cutting-edge BSD-5010-R3 solutions for mission-critical applications. Our 14-year manufacturing expertise integrates three core technological advantages:
1. Military-Grade Reliability
• IP69K & MIL-STD-810H certified construction
• -40°C to 135°C operational range (validated by SGS)
• 100G shock resistant with laser-welded PFC interface
2. Smart Tactile Innovation
• Proprietary 3D ForceSense™ technology (Patent #CN2023XXXXXX)
• 0.05mm actuation precision (±0.01mm repeatability)
• Software-adjustable 50-300g actuation force
3. Connected Control
• Embedded IoT edge computing (RS485/CAN FD)
• Wireless Bluetooth 5.2 configuration
• Real-time usage analytics dashboard
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| Membrane-Switch-Panel-Manufacturers BSD-5010-R3 |  |
35VDC，100mA，1W | 10-500Ω | Flat type: ≥5,000,000 cycles Tactile type: ≥1,000,000 cycles | Flat type 0.1~0.5mm Tactile type 0.6~1.5mm | Flat type 60g~300g(2~100Z) Tactle type 150g--400g(6--140Z） |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.

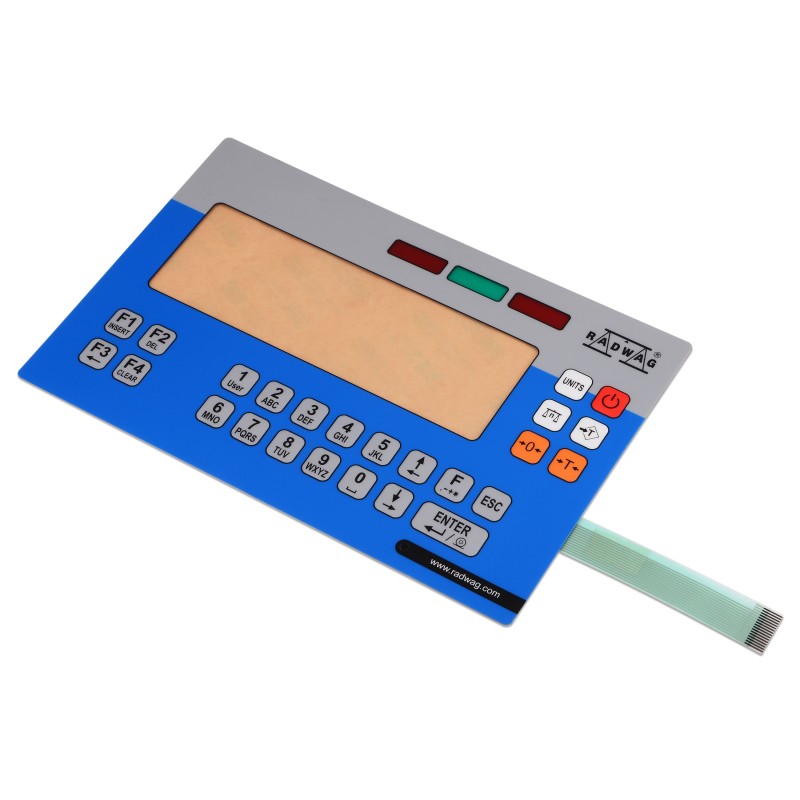

Membrane switch panel
