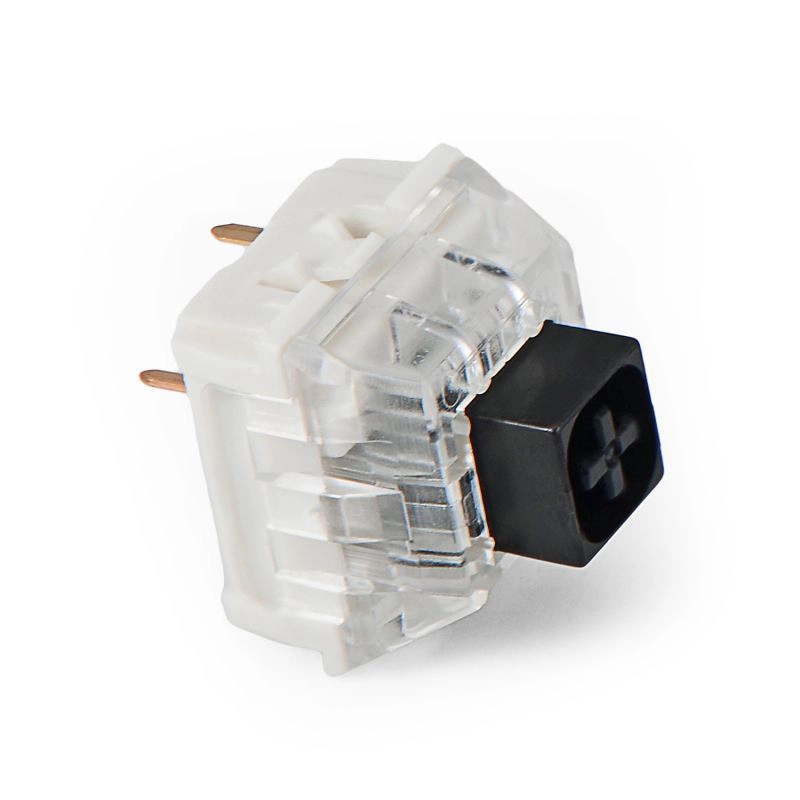

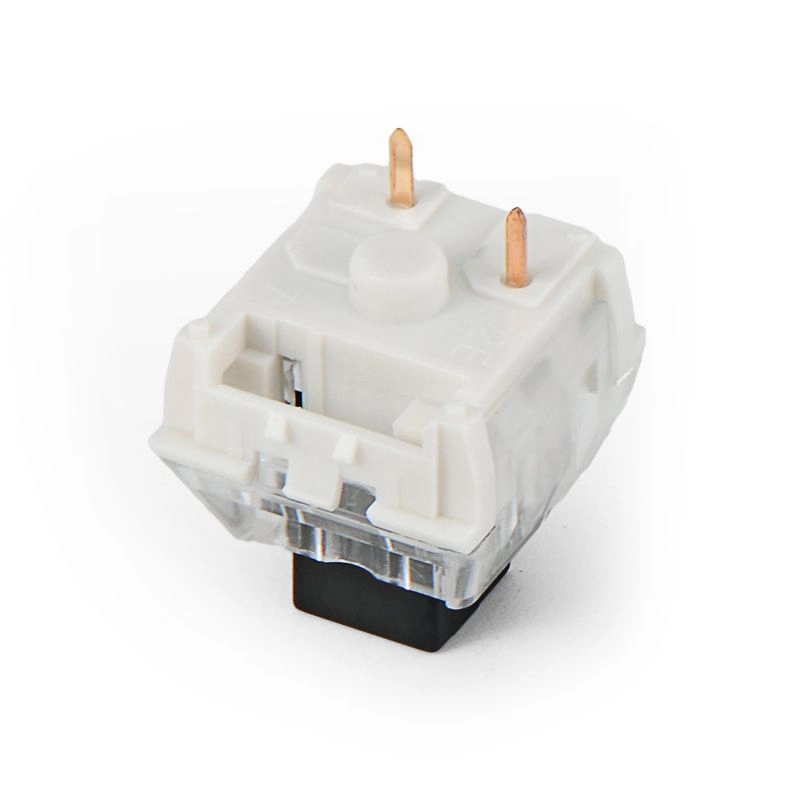

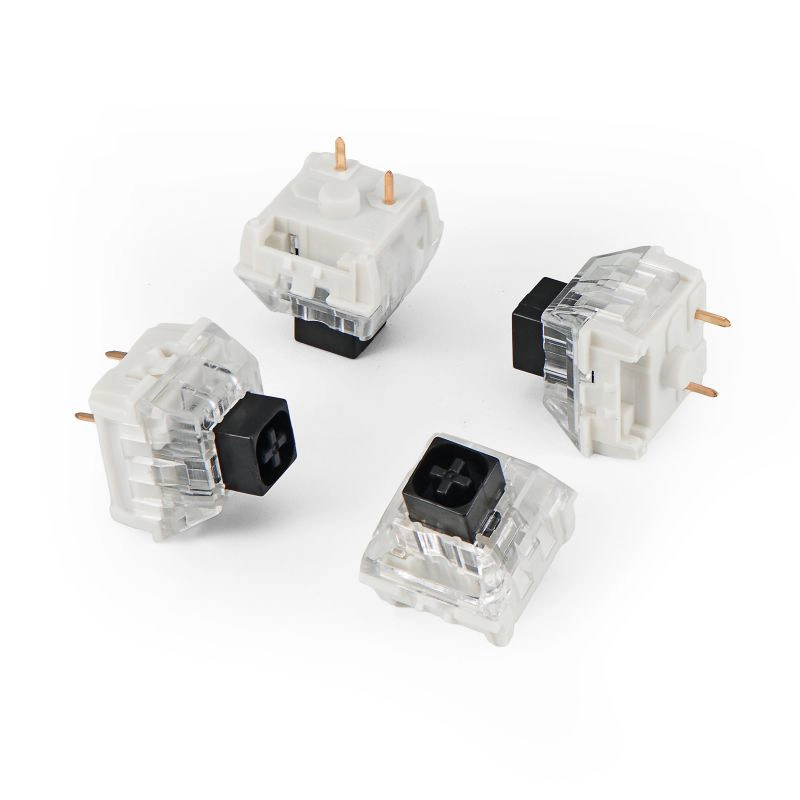

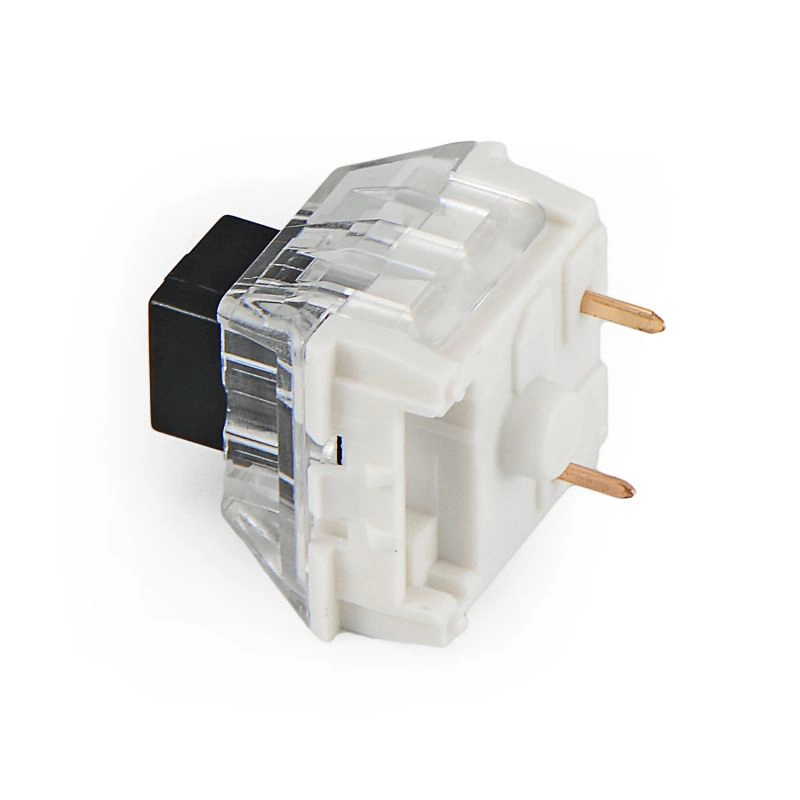

SD-PS1612-15

15.6mmMechancal Keyswitch,

Product Characteristics

1. Operating humidity: 45~85% R.H.

2. Operating temperature range: -10℃ to +70℃

3. Storage temperature range: -20℃ to +70℃

4. Shelf life: Up to 6 months

5. After the storage period, the tin plating on the switch terminals should remain in good condition.

6. Ambient temperature: 20±2℃

7. Relative humidity: 65%±5% R.H.

8. Atmospheric pressure: 86~101KPa

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

Verification code*

Overview

Specification :

1. Rating: 12 VAC/DC max. 2 VDC min.

l0mA AC/DC max. 10 μ A DC min.

• 2. Contact Resistance: 200mQ Max

• 3. Insulation Resistance: 100M Q Min. (DC100V)

• 4.Withstand Voltage: AC100V(50 60Hz) for 1 minute

• 5. Operation Force: 60±10gf

• 6. Cond uction travel: 1. 80±0. 4mm

• 7. Total travel: 3. 60±0. 3mm

• 8. Electrical Life: 80,000,000 Cycles (min).

• 9. Degree of protection: IP54(excluding吐1e terminals)

, <Feel is allowed to have difference before and after life test>

The application range of "Mechanical Keyswitch" primarily includes device keyboards, medical equipment keyboards, and large-scale mechanical equipment keyboards.

Parameters

Specifications	Spes	Rated current	Contact resistance	Life cycles	Travel	Trip force	Request Samples
15.6x15.6mm		10mA AC/DC max. 10μA DC min；	200mΩ Max	80,000,000cycles	3.60±0.3	150gf	Request Samples
