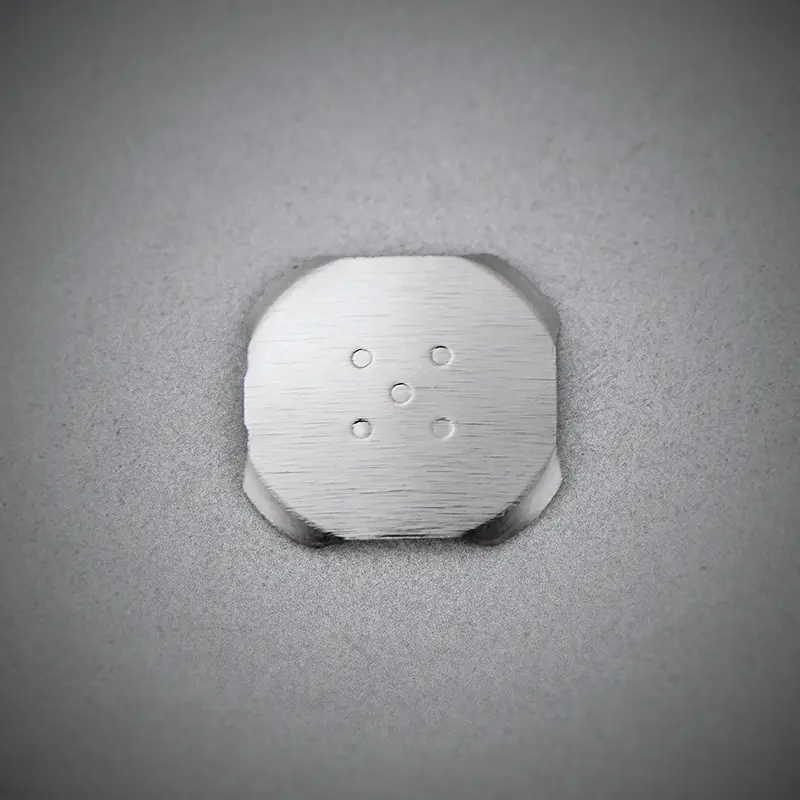

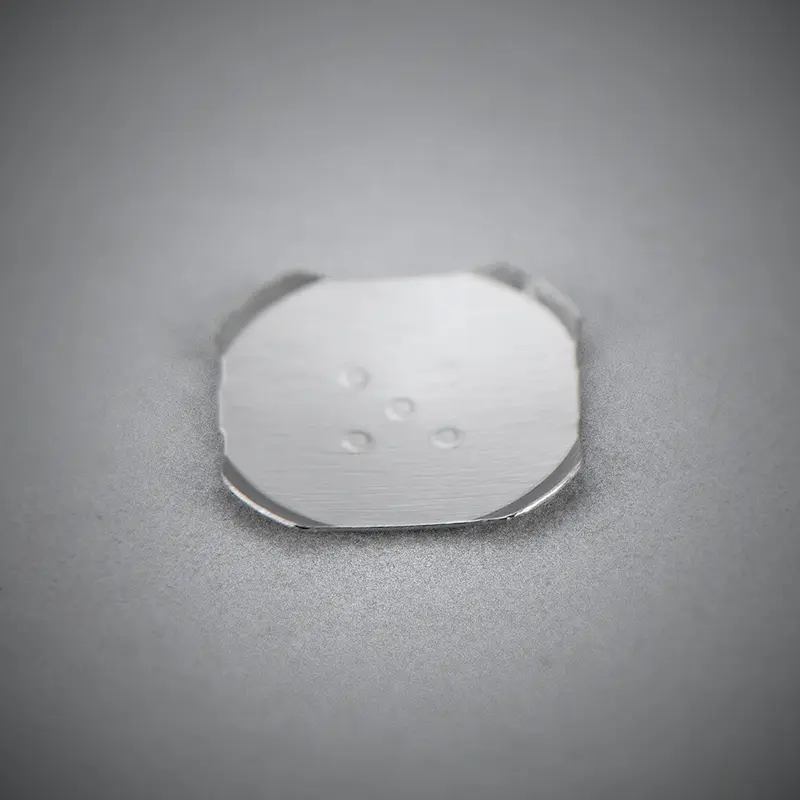

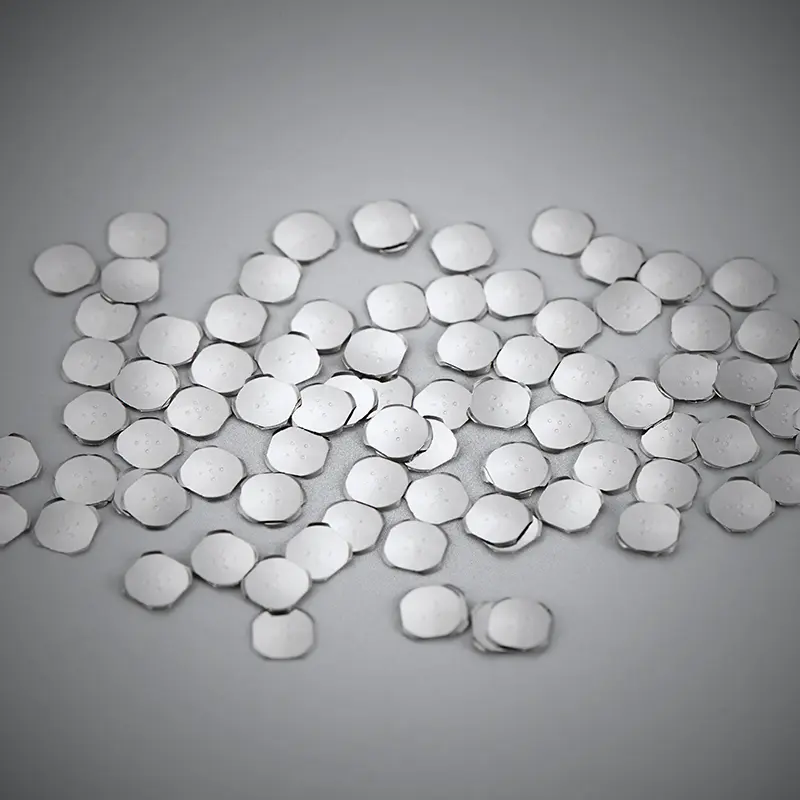

4.0mm Nickel-Plated Cross-Shaped Metal Dome with 5 Contact Points and Dustproof Features

Cross shaped diameter 4mm Metal domes SUS301 Nickel plated button switch with 180gf metal Switch

Product Characteristics

.SUS301 is nickel plated, with low resistance and high sensitivity to contact performance.

. Metal shrapnel can be directly produced with PET film adhesive buttons (MetalDomeArray) on PCB boards, making it convenient to use.

Catalog Download

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

Verification code*

Overview

[Features]

1. The shrapnel can be processed on PET adhesive material (Metal array). Its structure is to carry a metal film on the adhesive surface covering the tape, and use the metal film to short-circuit the patterns on the substrate (rigid or flexible), with excellent fitting and stable electrical characteristics.

2. It can significantly reduce the thickness of the switch unit, making it convenient for customers to use and install.

3. Installing MetaldomeSwitch backlight board on the covering tape has a wide variety of products, which helps to further achieve thinness in the device.

[Main use]

1. Remote control, operating switch for small, portable AV devices.

2. Input button switches for mobile phones, smartphones, PDAs, etc.

Specifications

[Electrical characteristics]

Rated (resistive load): DC 12V 0.1A

Contact resistance: below 1 Ω

Insulation resistance: above 100M Ω

Voltage withstand: AC 100V for 1 minute

[Mechanical characteristics]

Action force: 1.0N~3.8N

(Ø 3.0, Ø 3.0 x 2, Ø 4.0, Ø 4.0 x 2.8, Ø 5.0, Ø 6.0. Ø 7.0. Ø 8.4. Ø 10. Ø 12.2)

[Service life]

200000 to 1000000 times

Parameters

Product	Model	Diameter	Datasheet	Height	Dotted	Lifetime	Stroke	Strength	Specs

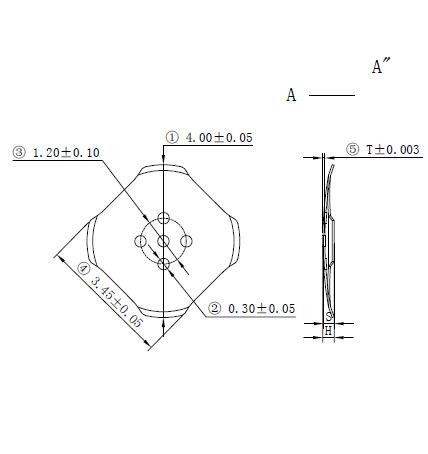

	SD-X4A13-5D-DN	4.00±0.05mm		0.25±0.03mm	5 dimples	500000(cycles)	0.19±0.03mm	130±20gf	Specs Product model : SD-X4A13-5D-DN Model :SD-X4A13-5D-DN Foot width :3.45±0.05mm Outer diameter :4.00±0.05mm Arc height :0.19±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.060 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
	SD-X4A16-5D-DN	4.00±0.05mm		0.27±0.03mm	5 dimples	500000(cycles)	0.21±0.03mm	160±20gf	Specs Product model : SD-X4A16-5D-DN Model :SD-X4A16-5D-DN Foot width :3.45±0.05mm Outer diameter :4.00±0.05mm Arc height :0.21±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.060 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
	SD-X4A18-5D-DN	4.00±0.05mm		0.28±0.03mm	5 dimples	500000(cycles)	0.22±0.03mm	180±20gf	Specs Product model : SD-X4A18-5D-DN Model :SD-X4A18-5D-DN Foot width :3.45±0.05mm Outer diameter :4.00±0.05mm Arc height :0.22±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.060 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf
	SD-X4A20-5D-DN	4.00±0.05mm		0.29±0.03mm	5 dimples	500000(cycles)	0.23±0.03mm	200±20gf	Specs Product model : SD-X4A20-5D-DN Model :SD-X4A20-5D-DN Foot width :3.45±0.05mm Outer diameter :4.00±0.05mm Arc height :0.23±0.03mm Voltage :0.1-50V DC Current :0.005-100mA DC Material :SUS301Materials/T(mm)0.060 Plating :Nickel plating Work temperature :+105° -40° Storage temperature :+100° -55° apply download pdf

*Swipe the table left and right on the mobile phone to view all
