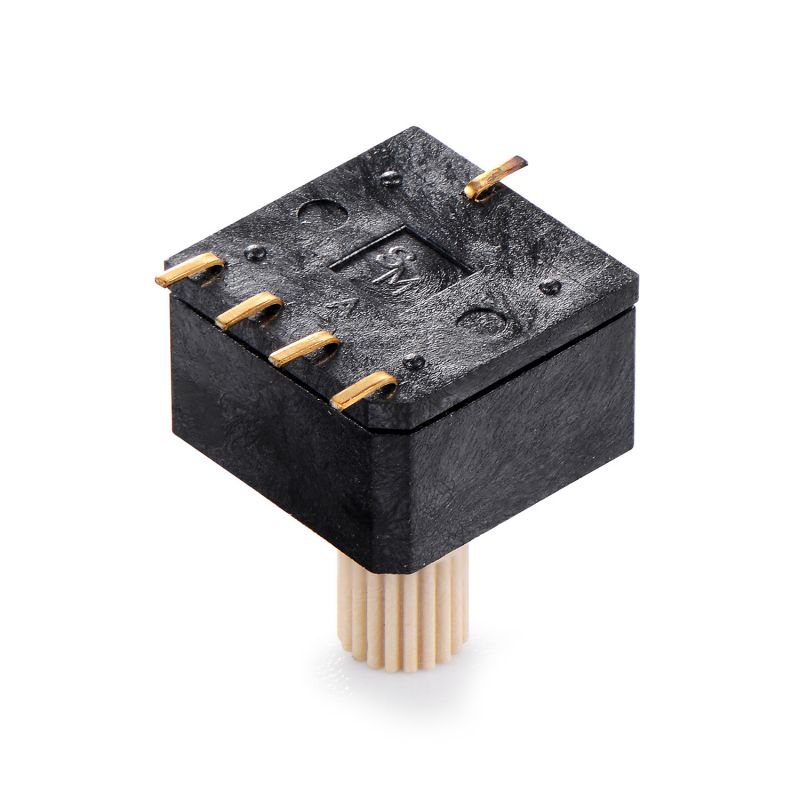

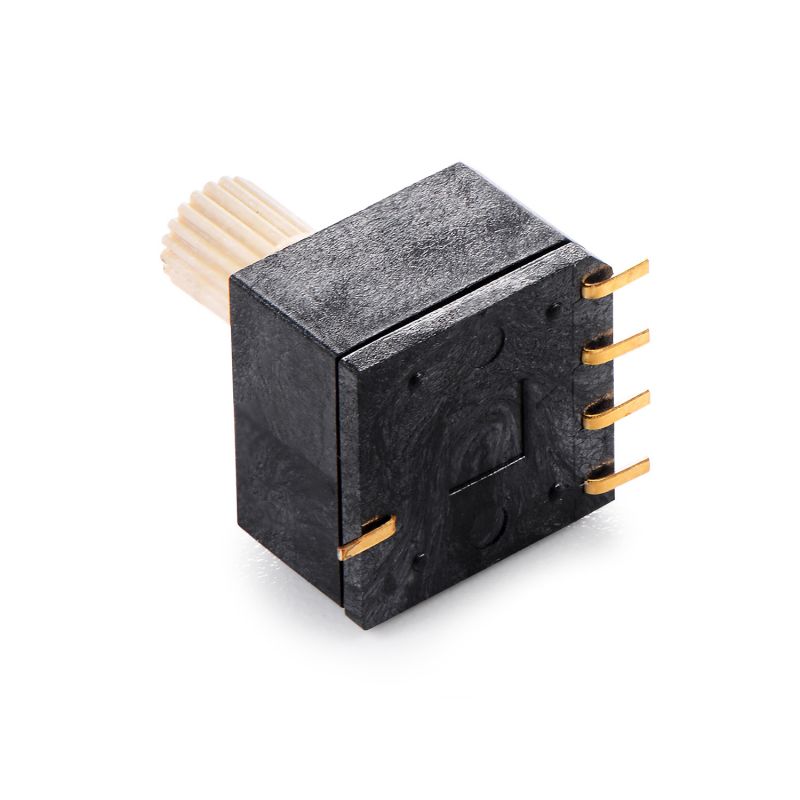

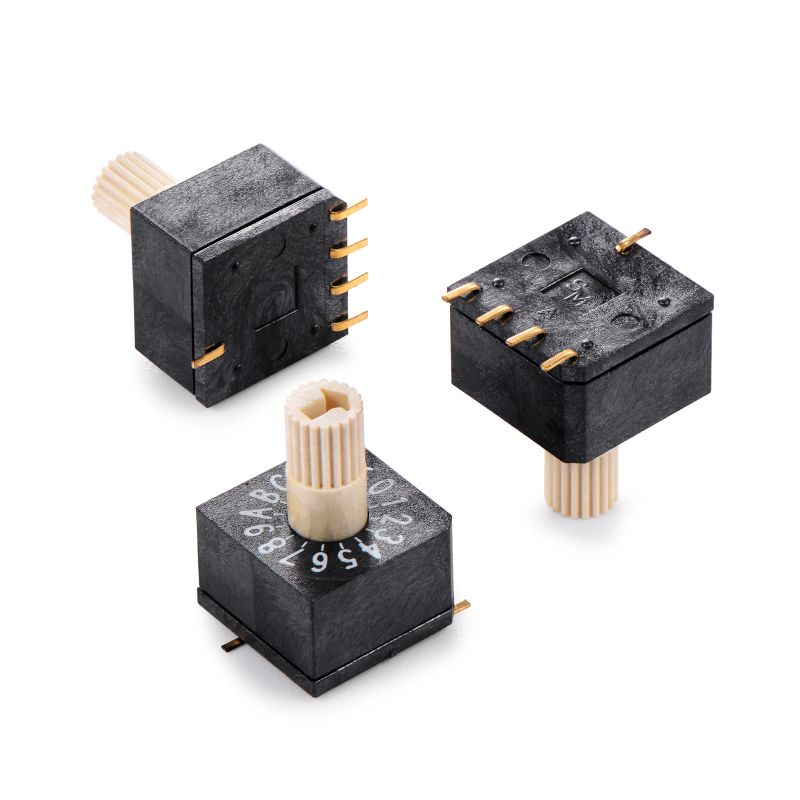

10*10mm Shaft 7.3mm Waterproof IP67, 5P Vertical SMD 16-Position Rotary Encoder Switch
- Available in 4, 6, 8, 10, and 16 positions
- Various pin types: THT, SMD, Angled
- IP67 (waterproof and dustproof)
- RoHS compliant
- High reliability with gold-plated contacts
1. Model: ESR-16S
2. Positions: 0-F, 16 positions
3. Package: Vertical SMD
4. Shaft Height: 7.3mm with shaft

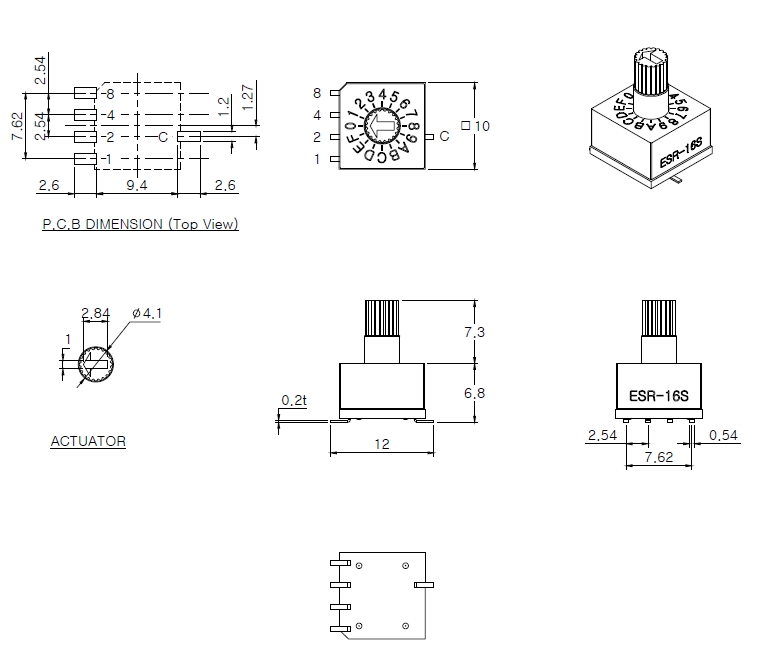

5. Specifications: 10*10*14.1mm, Base Height 6.8mm
6. Origin: Authorized Distributor of Korean SUNGMUN Brand
7. Lifespan: 10,000 cycles
8. Usage: Users rotate the shaft handle to the desired position, providing BCD code output values
9. Application: Mainly used in automation equipment, control devices, home appliances, security equipment, audio devices, and most industrial equipment
10. Sealing: IP67 (dustproof and waterproof)
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10mm*10mm*14.1mm |  |
25mA, DC 12V-25mA, DC 24V | 100mΩ Max | 10,000 steps | 700gf Max |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
