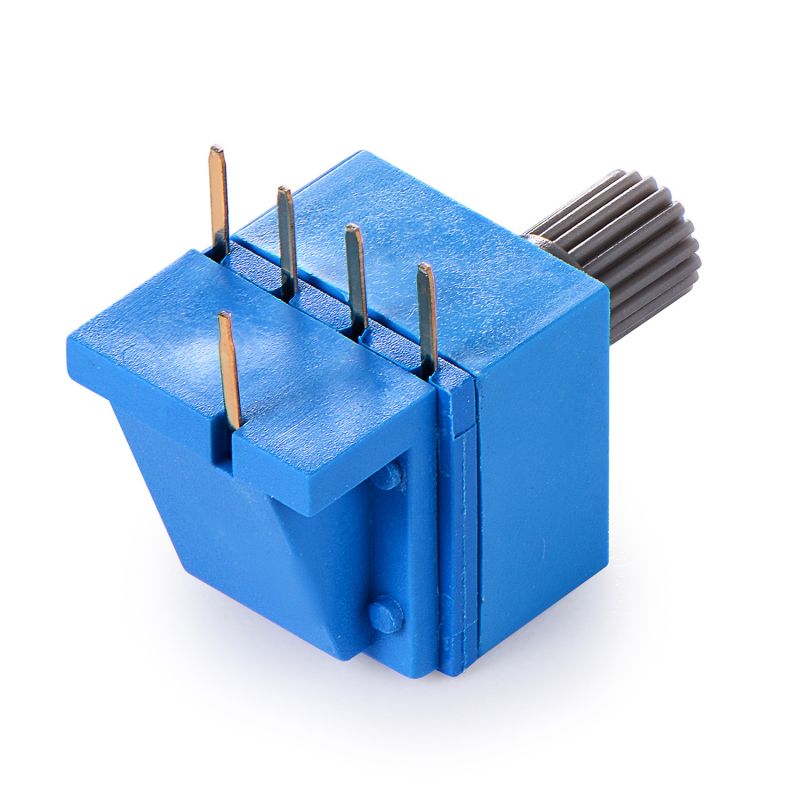

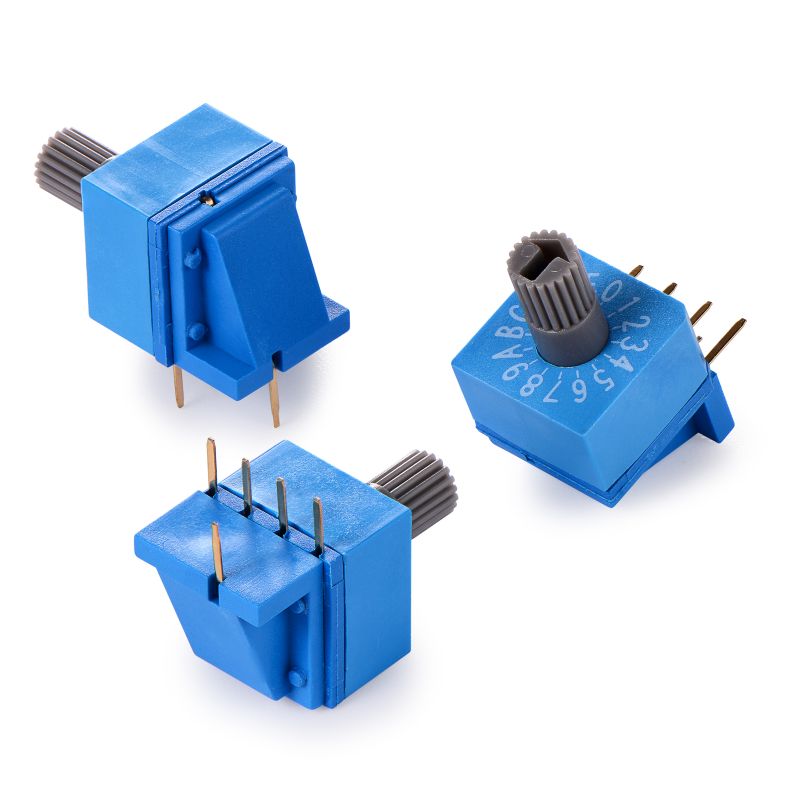

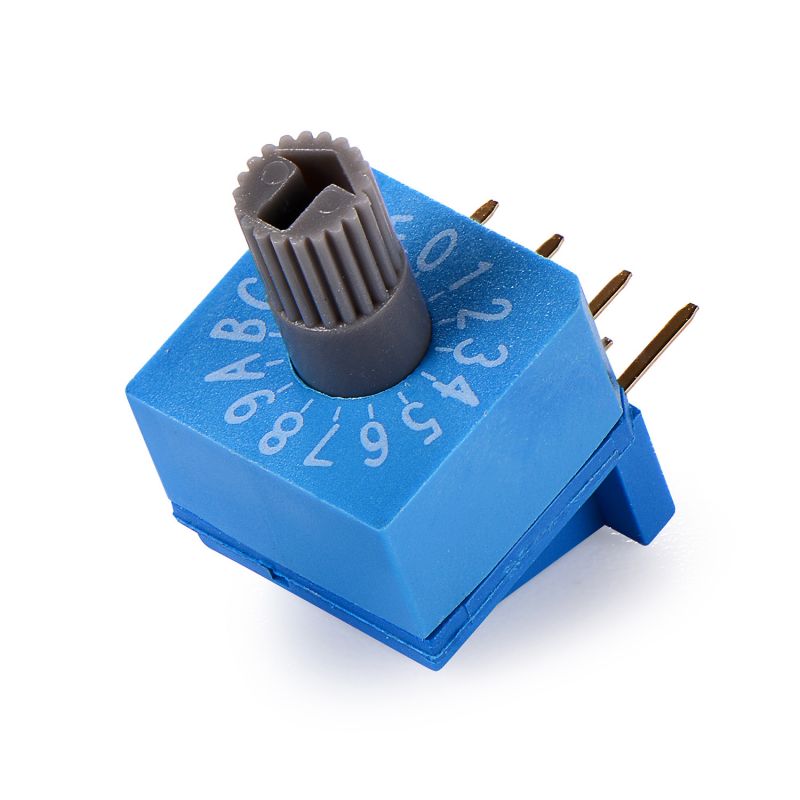

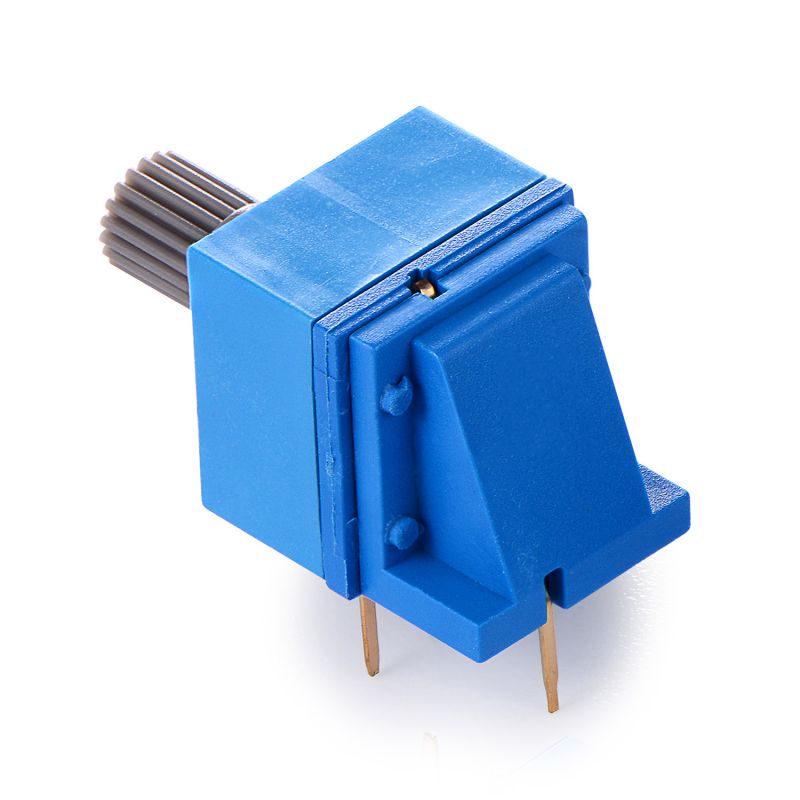

Rotary Encoder Switch with 5.08mm Pitch, 16 Positions, Horizontal Plug-in
- Various positions: 4, 6, 8, 10, 16
- Various pin types: THT, SMD, Angled
- IP67 (waterproof and dustproof)
- RoHS compliant
- High reliability with gold-plated contacts
1. Model: ESR-16H
2. Positions: 16 positions (0-F)
3. Package: Horizontal plug-in (DIP)
4. Pin Pitch: 5.08mm
5. Shaft Height: 7.3mm with shaft

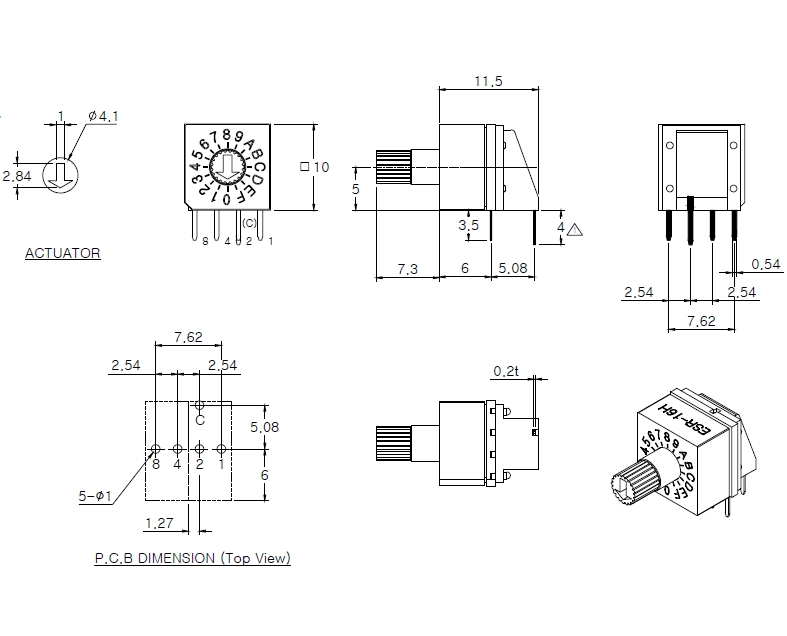

6. Dimensions: 10*18.8*5.08mm, Base height 11.5mm
7. Origin: Authorized distributor of Korean brand SUNGMUN
8. Lifespan: 10,000 cycles
9. Function: The rotary switch allows users to rotate the shaft handle to the desired position, providing a BCD Code output.
10. Applications: Mainly used in automation equipment, control devices, household appliances, safety equipment, audio equipment, and most industrial equipment.
11. Sealing: IP67 (dustproof and waterproof)
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10mm*18.8mm*5.08mm |  |
150mA, DC 42V-200mA, DC 42V | 80mΩ Max | 10,000 steps | 700gf Max |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
