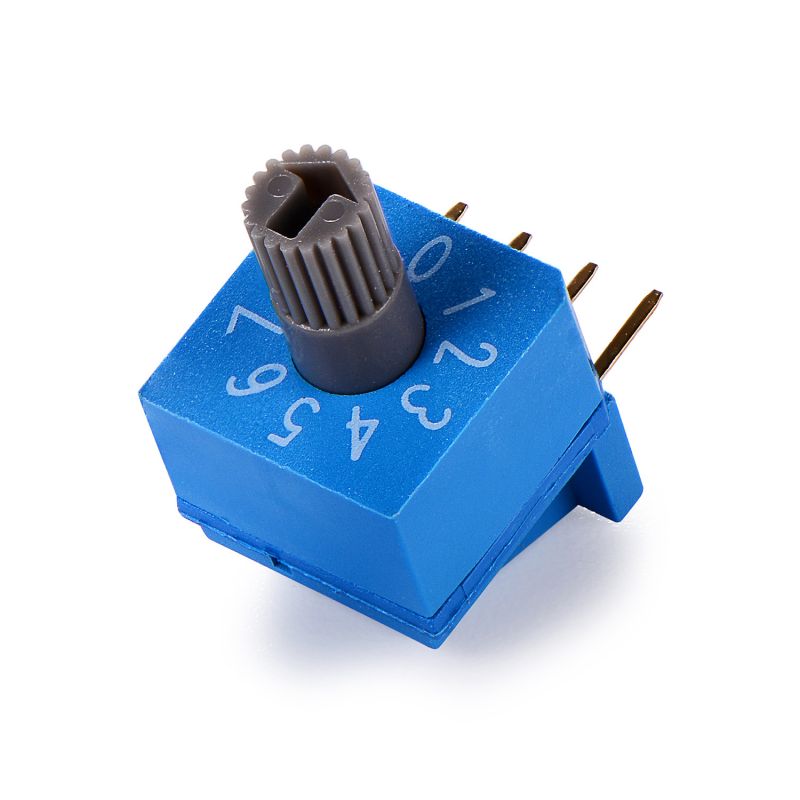

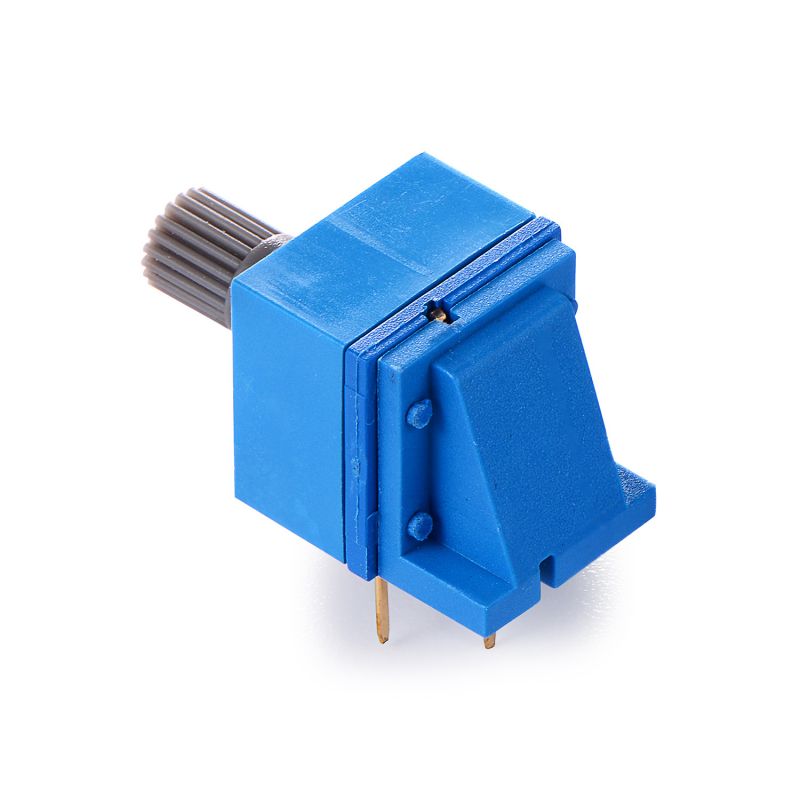

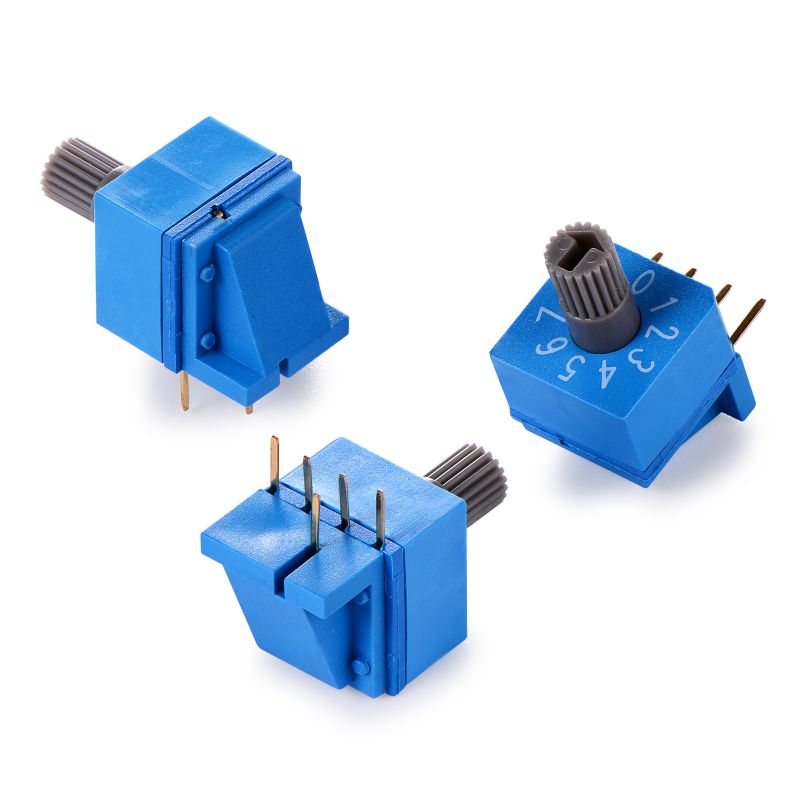

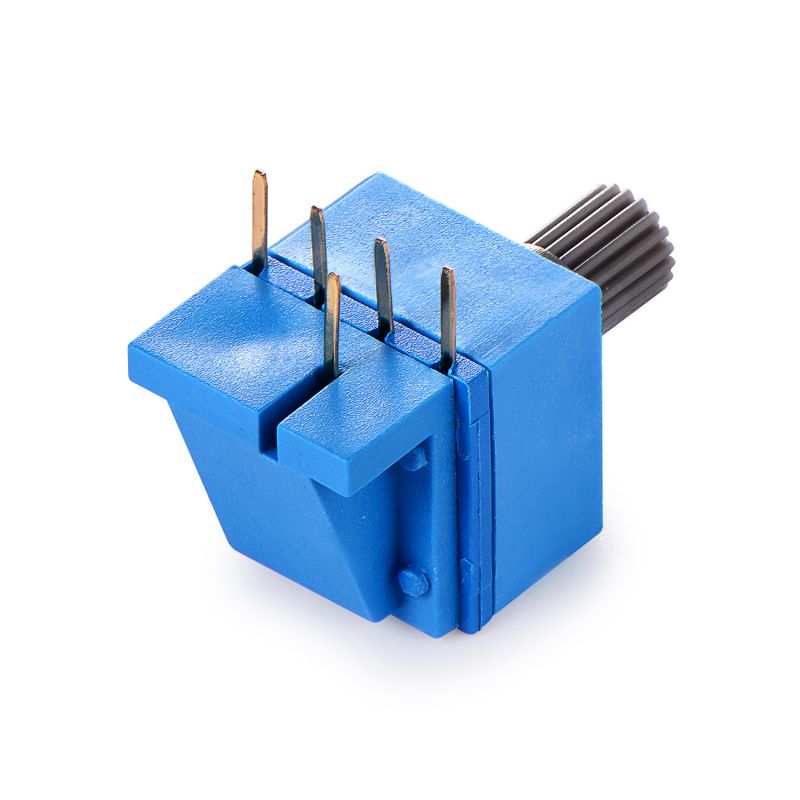

Rotary Dip Switch 10mm*11.5mm, 2.54mm Pitch, 7.3mm Shaft, Horizontal, 5-pin DIP, Waterproof, 8421 Code Switch
- Available in various positions: 4, 6, 8, 10, 16
- Available in various pin configurations: THT, SMD, Angled
- IP67 (waterproof and dustproof)
- RoHS compliant
- High reliability with gold-plated contacts
1. Model: ESR-10H1
2. Positions: 10 positions (0-9)

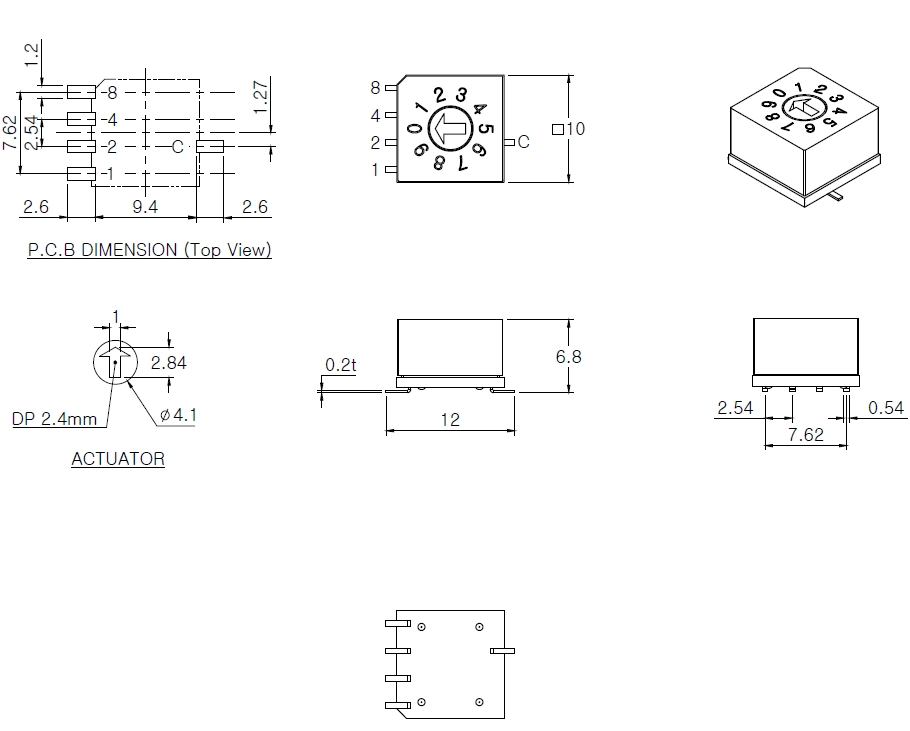

3. Dimensions: 10mm*11.5mm*2.54mm, Base height 11.5mm
4. Shaft: Shaft height 7.3mm
5. Origin: Authorized distributor of Korean brand SUNGMUN
6. Lifespan: 10,000 cycles
7. Function: The rotary switch allows users to rotate the shaft handle to the desired position, providing a BCD Code output
8. Applications: Mainly used in automation equipment, control devices, household appliances, safety equipment, audio equipment, new energy charging stations, and most industrial equipment
9. Sealing: IP67 (dustproof and waterproof)
10. Pin Pitch: 2.54mm
11. Package: 5-pin DIP
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10mm*11.5mm*2.54mm |  |
150mA, DC 42V-200mA, DC 42V | 80mΩ Max | 10,000 steps | 700gf Max |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
