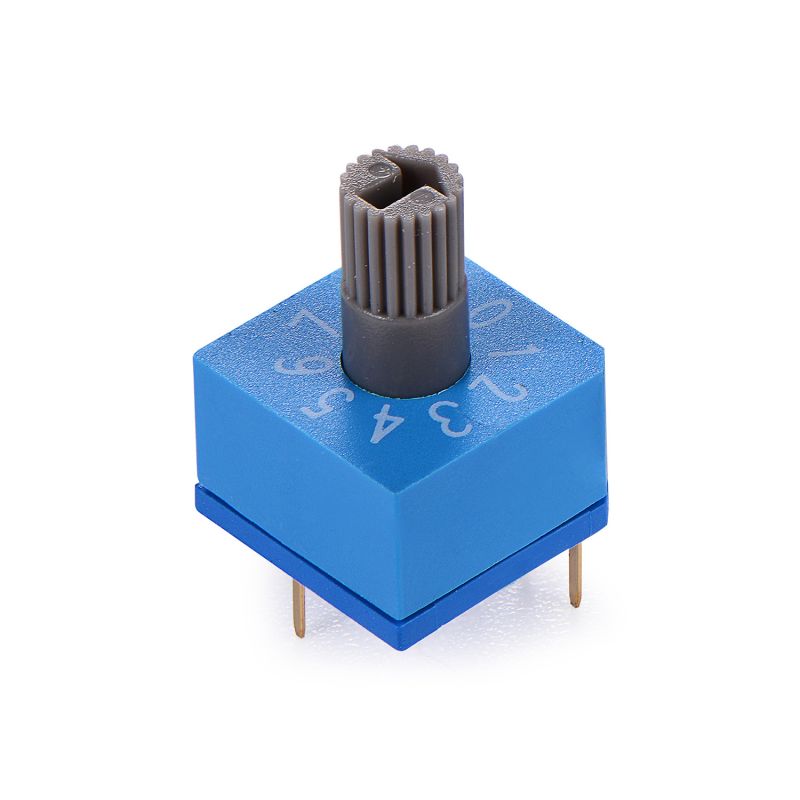

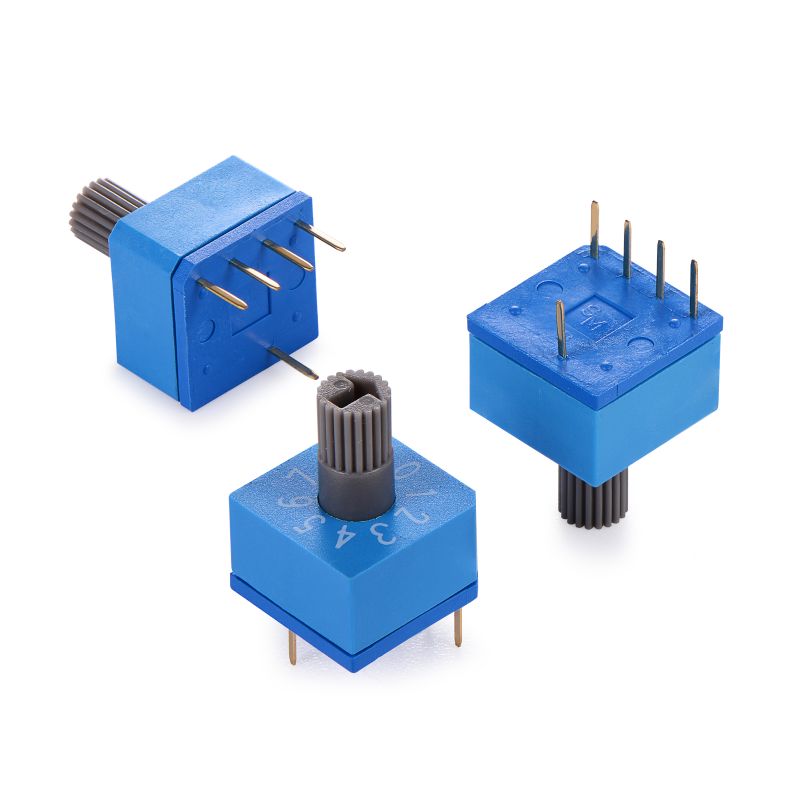

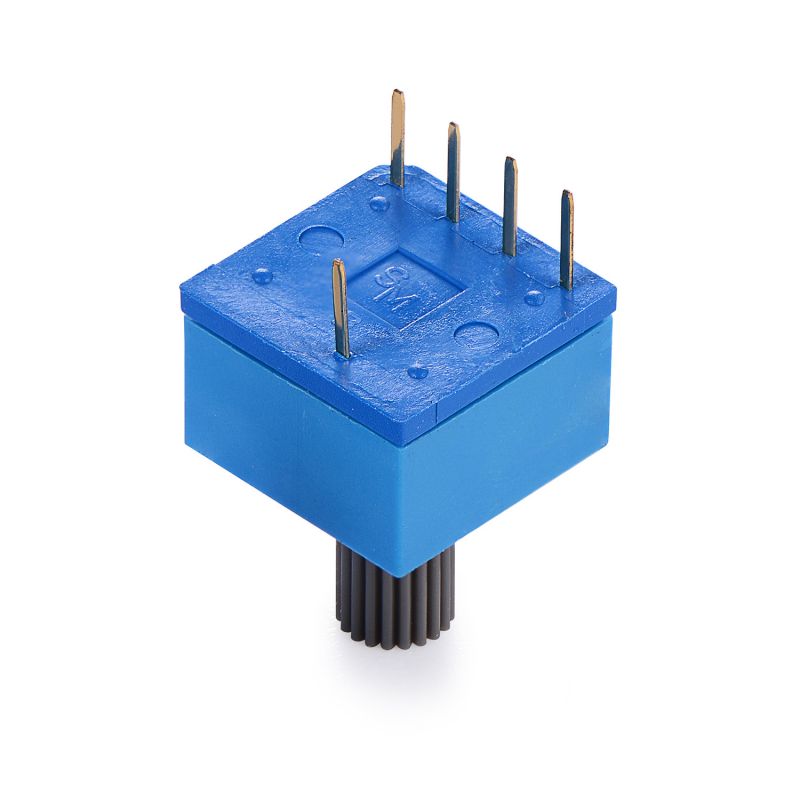

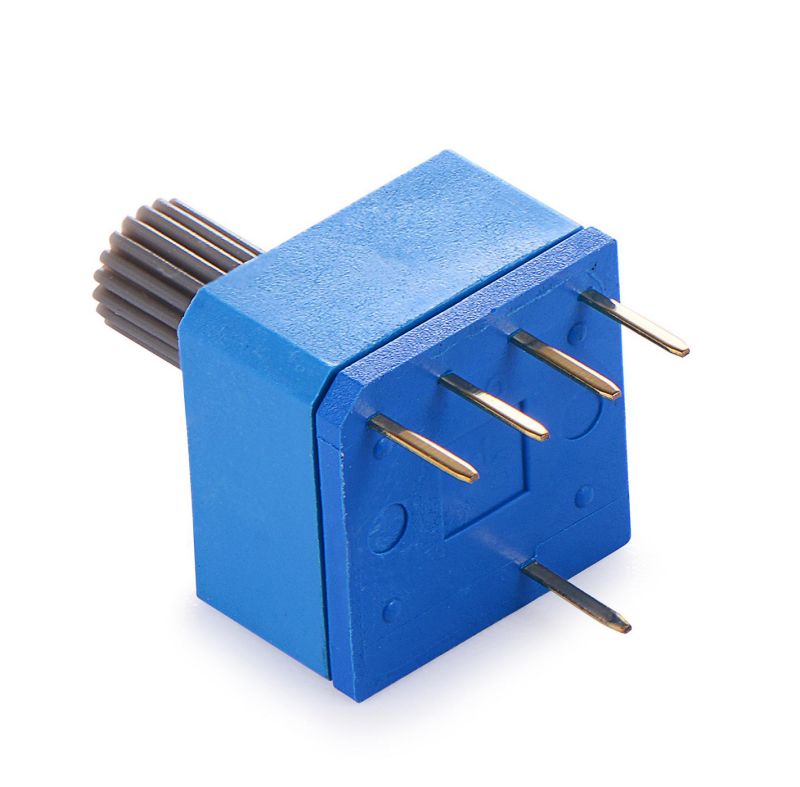

Rotary Dip Switch, 10mm*10mm Vertical 5-Pin DIP, 10-Position Rotary Encoder Switch, IP67 Rated, 8421 Encoder Switch
- Various positions available: 4, 6, 8, 10, 16
- Various pin types: THT, SMD, Angled
- IP67 rated (Waterproof, Dustproof)
- RoHS compliant
- High reliability with gold-plated contacts
1. Model: ESR-10
2. Positions: 0-9-10
3. Package: Vertical 5-Pin DIP

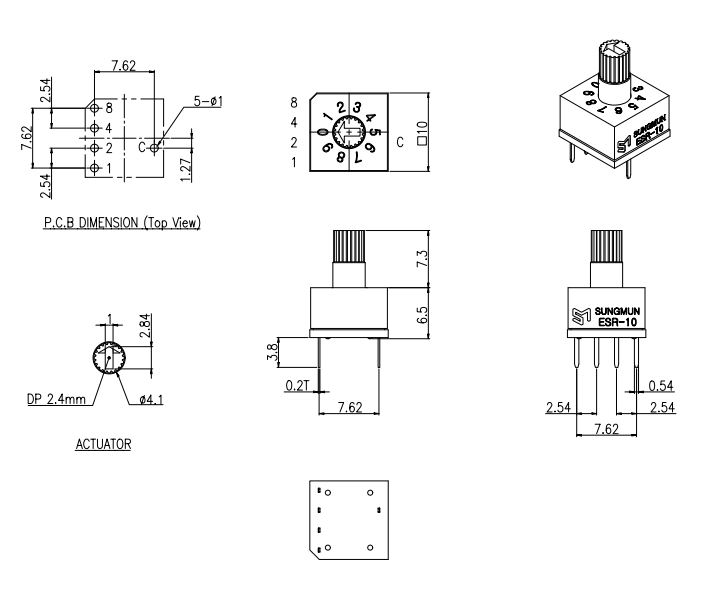

4. Dimensions: 10*10*13.8mm, Base Height 6.5mm
5. Shaft: With Shaft, Height 7.3mm
6. Origin: Authorized distributor of SUNGMUN brand from South Korea
7. Lifespan: 10,000 cycles
8. Function: Users rotate the shaft handle to desired positions, reflecting BCD Coded output values
9. Applications: Mainly used in automation equipment, control devices, household appliances, safety equipment, audio equipment, video recording and playback equipment, automotive audio equipment, smart vehicle-mounted equipment, electronic measuring instruments, communication equipment, calculator equipment manufacturing, and other industrial equipment
10. Sealing: IP67 (Dustproof and Waterproof)
11. Pin Configuration: 8421 with common C pin
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10mm*10mm*13.8mm |  |
150mA, DC 42V- 200mA, DC 42V | 80mΩ Max | 10,000 steps | 700gf Max |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
