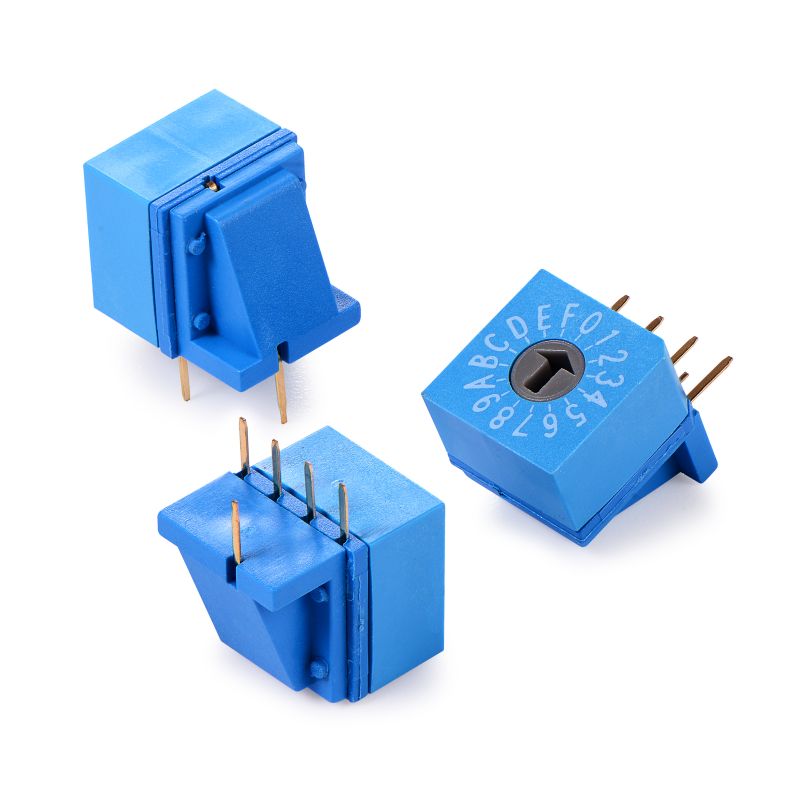

Rotary Dip Switch, 10mm*11.5mm Horizontal DIP, Dual Row 5-Pin Spacing 5.08mm, 16-Position Rotary Encoder Switch
- Various positions available: 4, 6, 8, 10, 16
- Various pin types: THT, SMD, Angled
- IP67 rated (Waterproof, Dustproof)
- RoHS compliant
- High reliability with gold-plated contacts
1. Model: EDR-16H

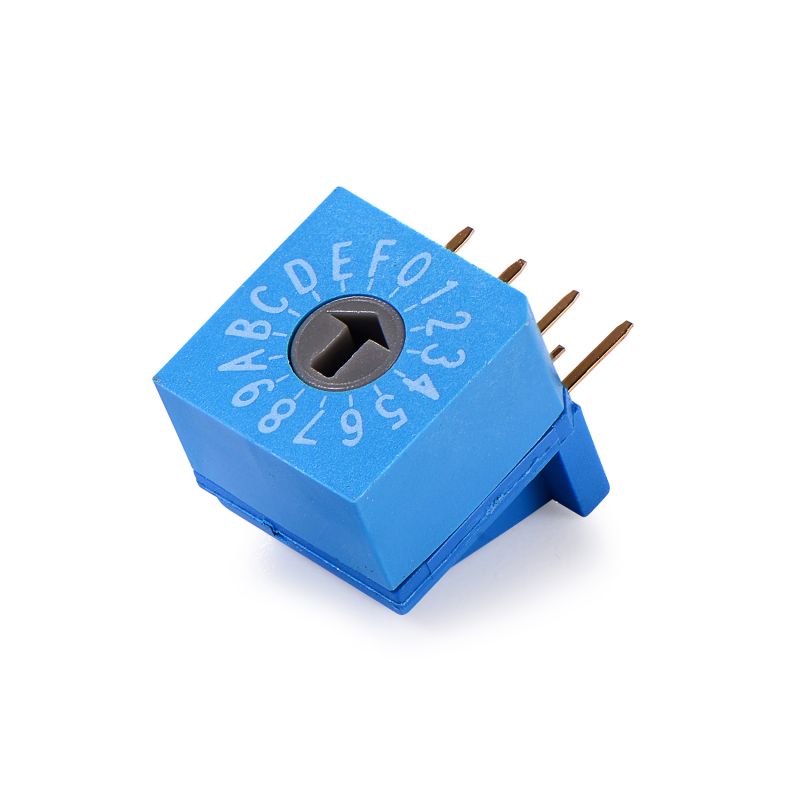

2. Positions: 0-F-16

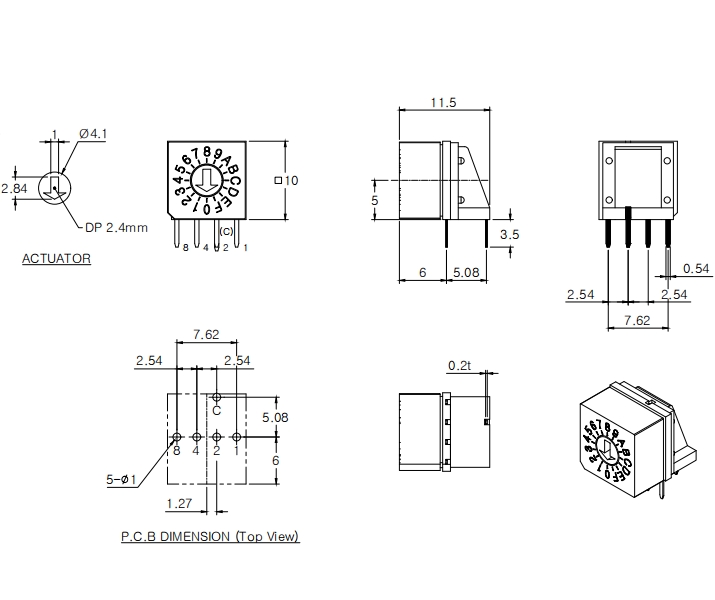

3. Dimensions: 10mm*11.5mm

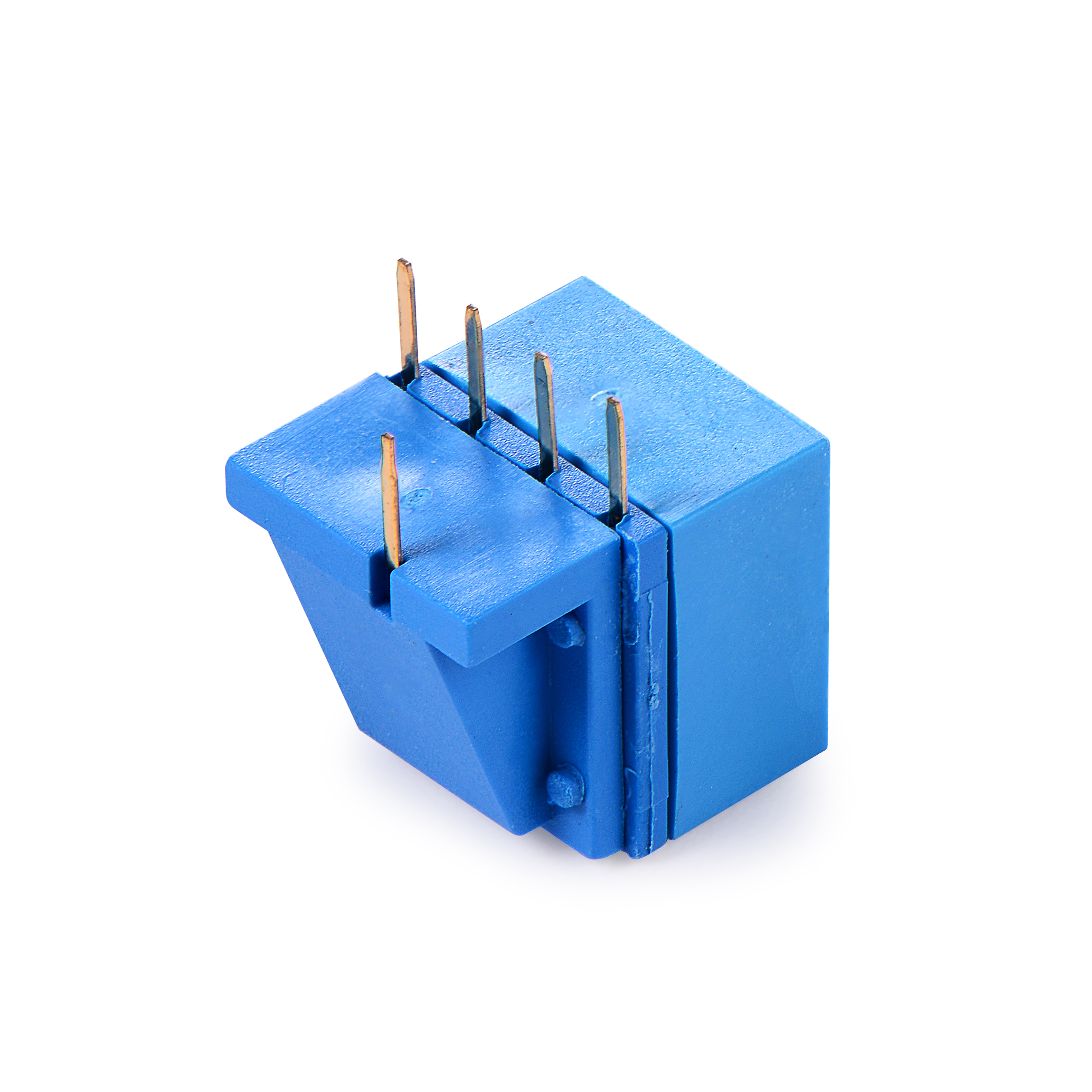

4. Pin Spacing: Dual Row 5-Pin, Spacing 5.08mm

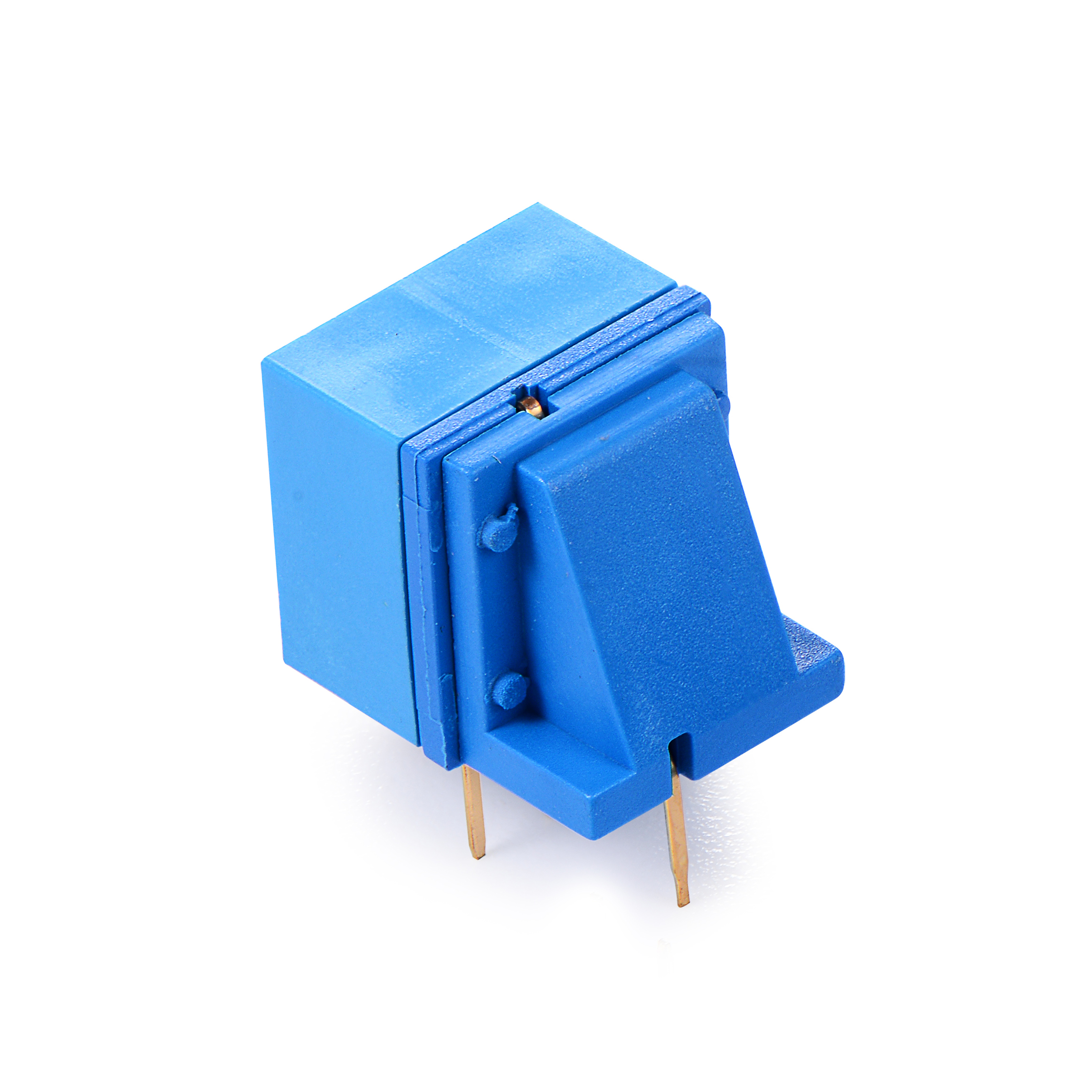

5. Package: Horizontal DIP
6. Shaft: None
7. Pin Configuration: 8421 with common C pin
8. Origin: Authorized distributor of SUNGMUN brand from South Korea
9. Lifespan: 10,000 cycles
10. Function: Users rotate the shaft handle to desired positions, reflecting BCD Coded output values
11. Applications: Mainly used in slot cylinder winding machine, semi-automatic high-speed winding machine, large coil winding machine, fully automatic winding machine, and doubling machine, among other industrial equipment
12. Sealing: IP67 (Dustproof and Waterproof)
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10mm*11.5mm*5.08mm |  |
150mA, DC 42V-200mA, DC 42V | 80mΩ Max | 10,000 steps | 700gf Max |
Request Samples
|
