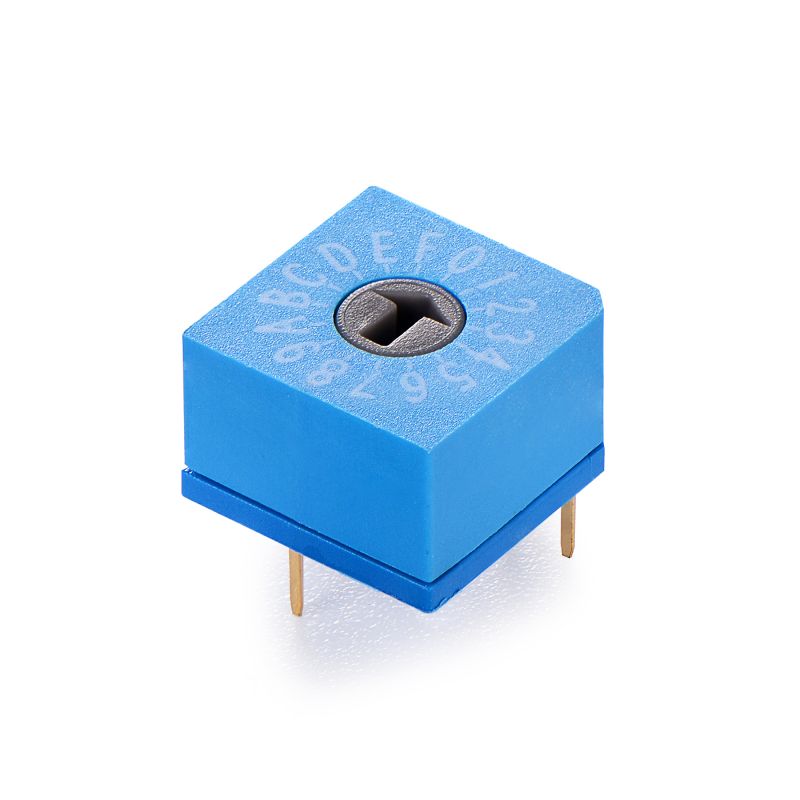

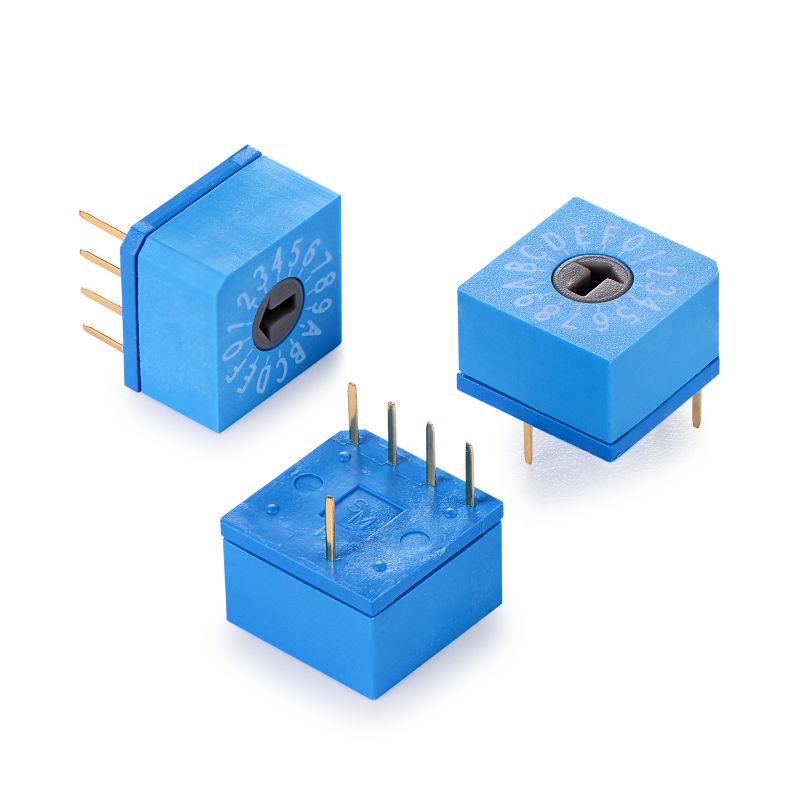

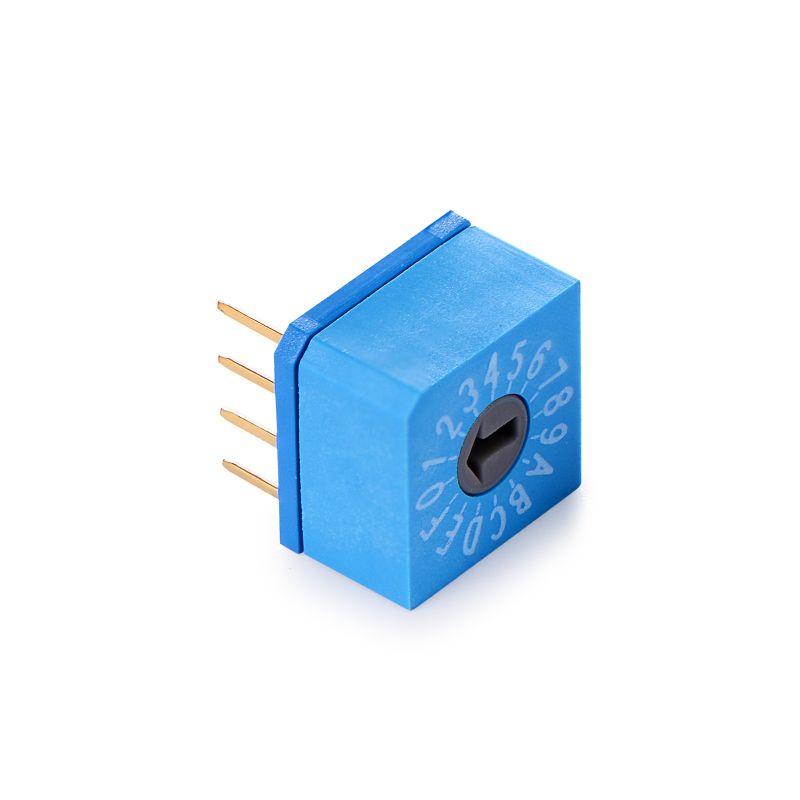

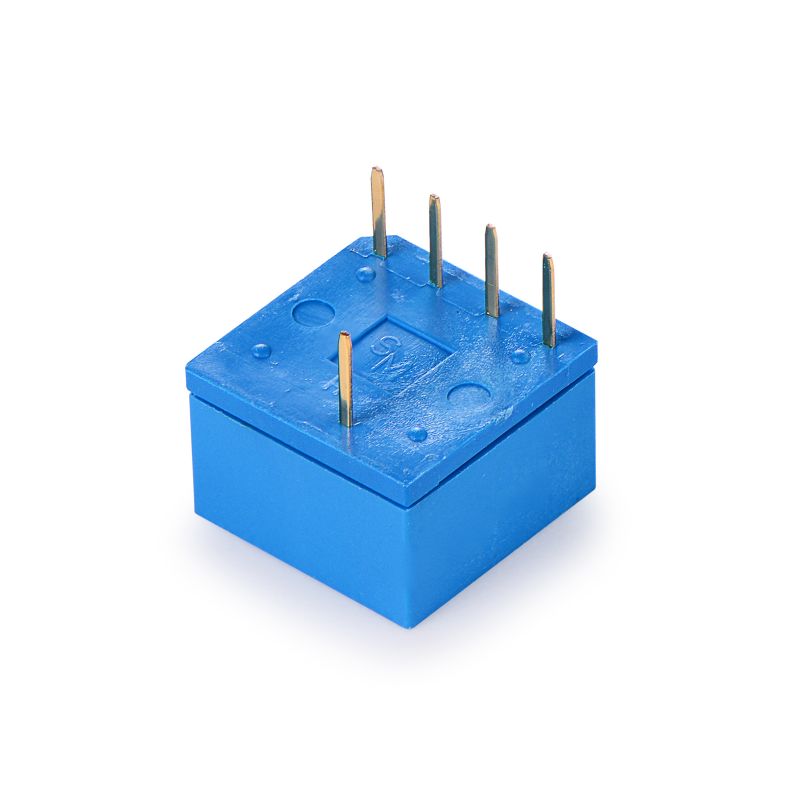

Rotary Encoder Switch, 8421 dual-row 5-pin vertical plug-in 16-position rotary encoder switch.
- Various positions available: 4, 6, 8, 10, 16
- Various pin types available: THT, SMD, Angled
- IP67 rated (waterproof, dustproof)
- Compliant with RoHS standards
- High reliability with gold-plated contacts
1. Model: EDR-16
2. Positions: 0-F-16 (including 16 positions)
3. Package: 5-pin DIP

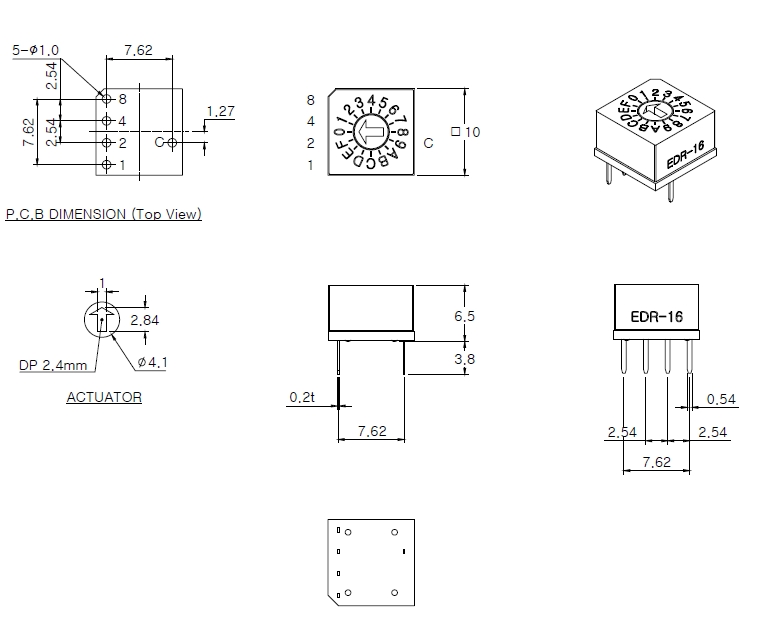

4. Dimensions: 10mm x 10mm x 6.5mm
5. Pin Configuration: 8421 with common C pin
6. Pin Spacing: Dual-row, 2.54mm
7. Origin: Authorized distributor of SUNGMUN brand from South Korea
8. Lifespan: 10,000 cycles
9. Function: Rotary switch allowing users to select desired positions, reflecting BCD coded output values
10. Applications: Primarily used in automation equipment, control devices, household appliances, safety equipment, audio equipment, optoelectronic products, lighting fixtures, and their components, among other industrial equipment
11.Sealing: IP67 (dustproof and waterproof)
12. Operating Force: Maximum 700gf
13. Packaging: 50PCS/tube
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10mm*10mm*6.5mm |  |
150mA, DC 42V-200mA, DC 42V | 80mΩ Max | 10,000 steps | 700gf Max |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
