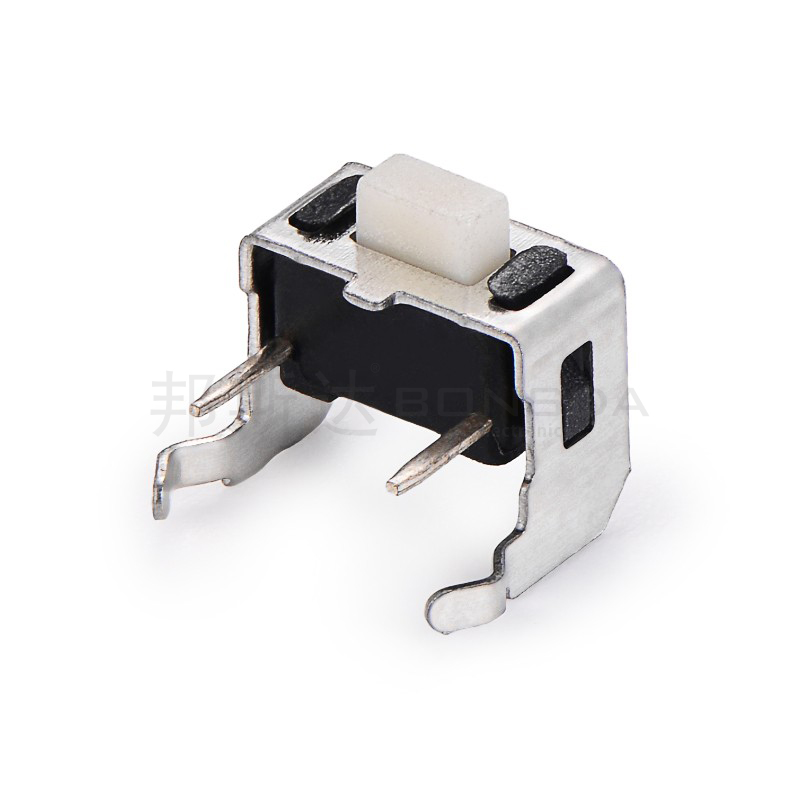

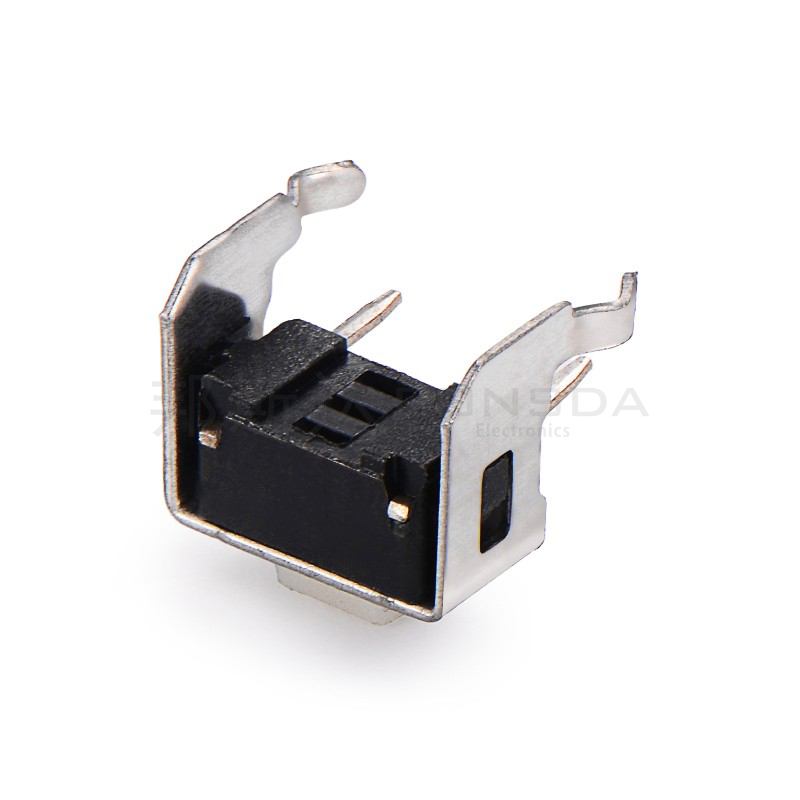

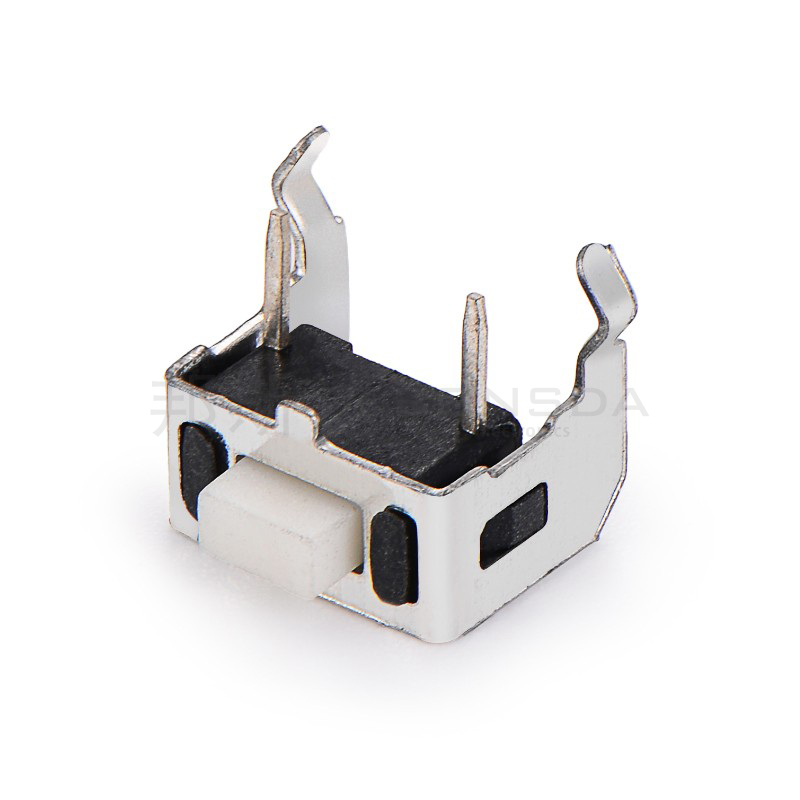

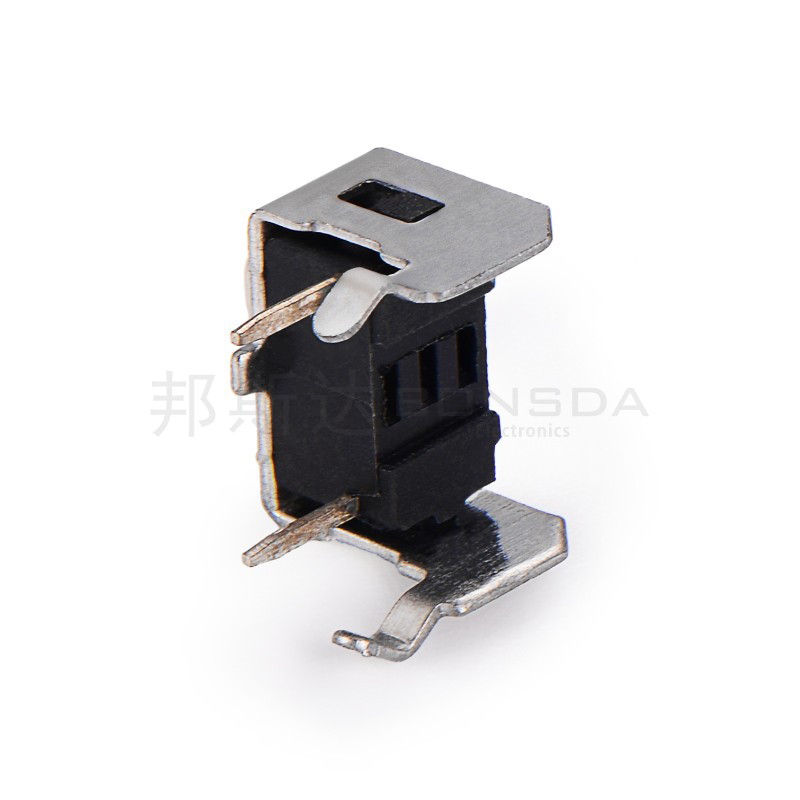

4.3mm * 6.3mm*3.85mm horizontal typel sidetact insertor switch
The touch switch is an ultra small switch that can switch circuits with just a gentle press of a button. Mainly used for audio, computers, communication equipment, etc., it is the most widely used switch.
▲Ultra small size
▲Accurate tactile sensation
▲High reliability and long lifespan
▲Various types of pins such as J, G, crimped, and straight insertion
▲Various operating forces
▲Compliant with RoHS standards
▲4.3mm * 6.3mm*3.85mm horizontal typel sidetact insertor switch
SPECIFICATION
1. RATING : DC 12V / 20mAMax
2. TRAVEL : 0.25±0.1mm
3. CONTACT RESISTANCE : 100mΩ MAX.
4. LIFE CYCLES : 80,000CYCLE
5. OPERATING FORCE : 180±50gf
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 4.3mm * 6.3mm*3.85mm |  |
DC 12V / 20mAMax | 100mΩ MAX. | 80,000 CYCLES | 0.25±0.1mm | 180±50gf |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
