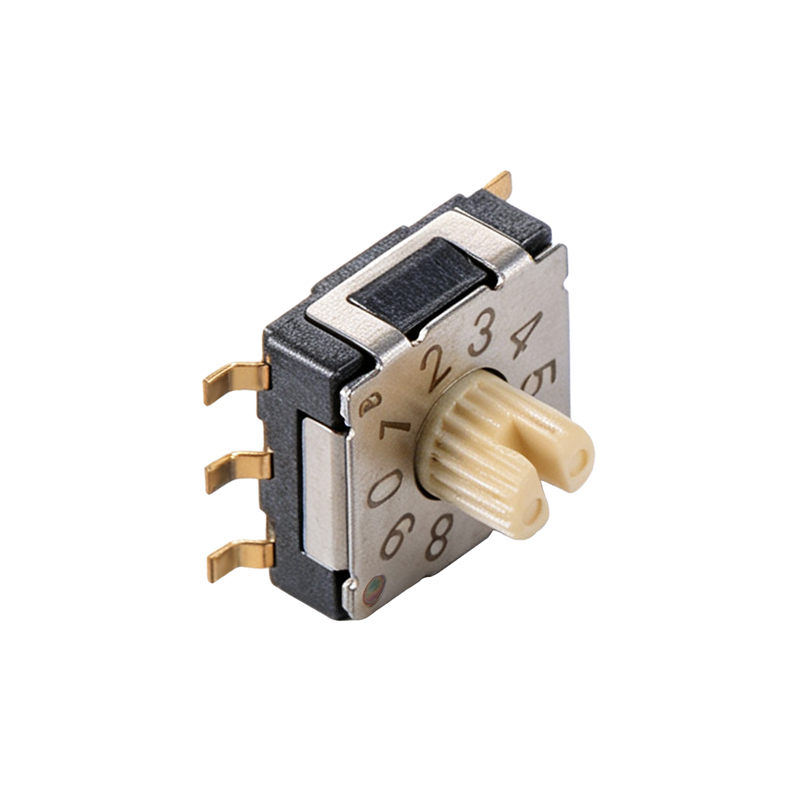

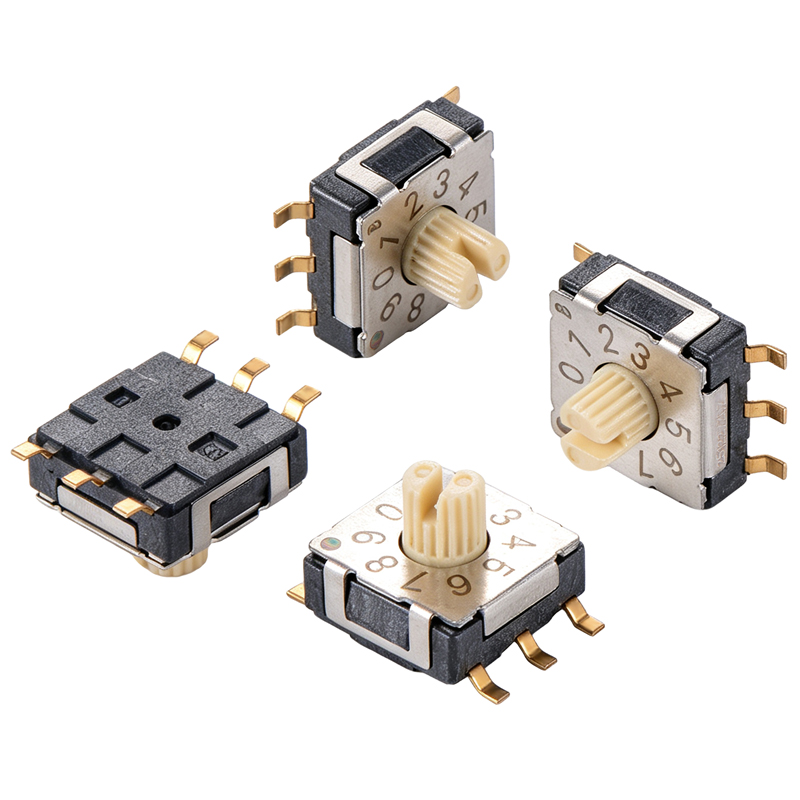

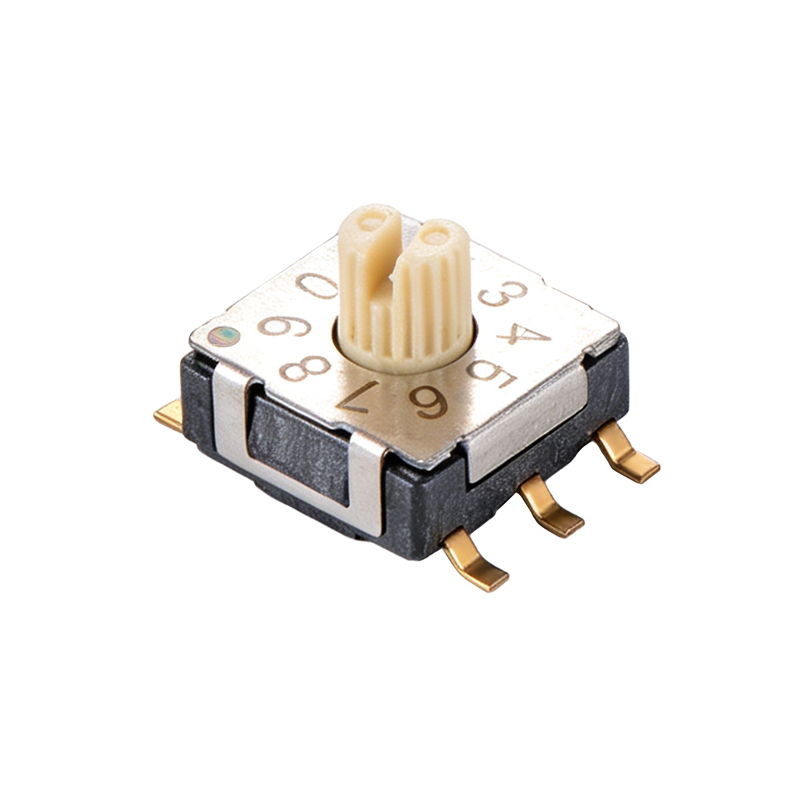

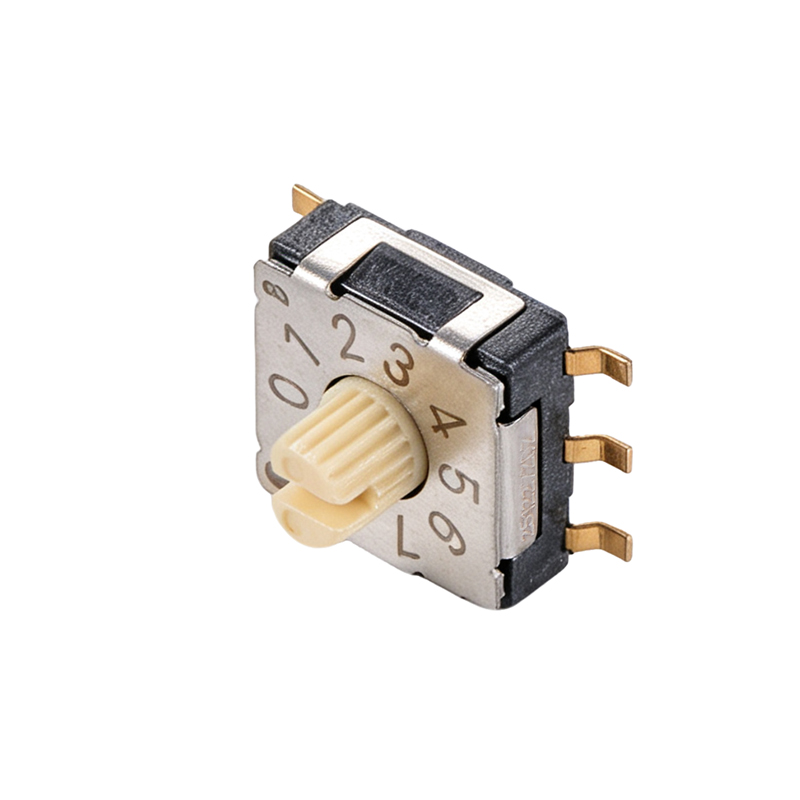

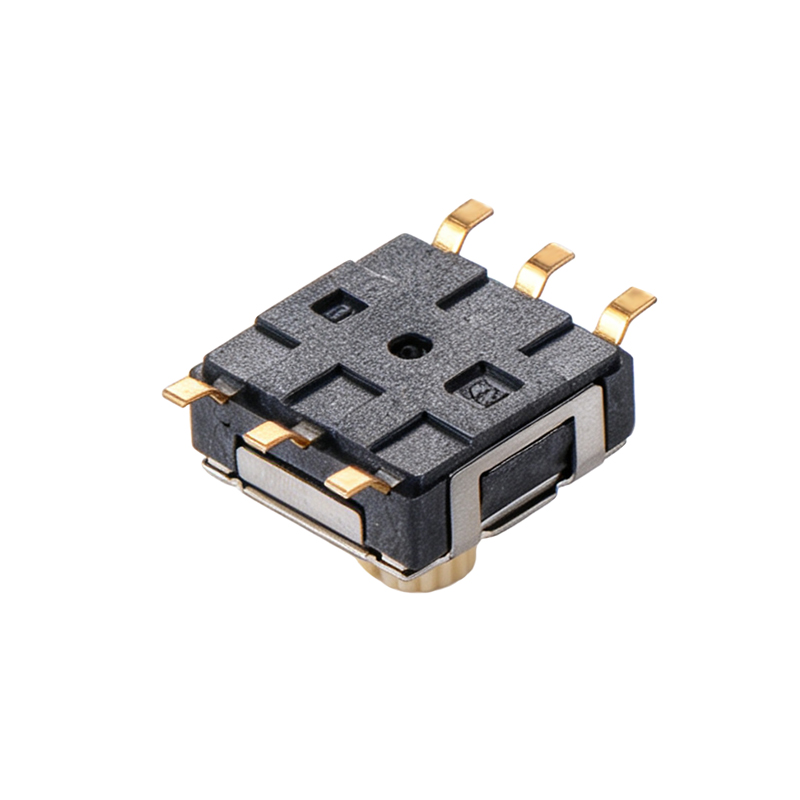

SD-R10C-T01 Rotary Encoder Switch | 10 Position SMD with Shaft | for Access Control / New Energy / Industrial Control

SD-R10C-T01 10-position SMD rotary encoder switch with shaft, for access control, EV charging, PLC, and EMS controller coding setup.

Product Characteristics

Product Model: SD-R10C-T01

Brand: BONSDA

Product Type: Rotary Encoder Switch

Number of Positions: 10 (0-9)

Package Type: 4-Pin SMD

Shaft Structure: Long Handle (with Shaft)

Body Size: 7.2×7.2mm

Environmental Standard: Compliant with EU RoHS Directive

Current Range (Non-conversion): 100mA, 50V DC

Current Range (Conversion): 25mA, 24V DC

Contact Resistance: 60mΩ Max

Insulation Resistance: 100MΩ Min (100V DC)

Dielectric Strength: 250V AC (50/60Hz) for 1 minute

Capacitance: 5pF Max (1MHz±10kHz)

Operating Force: 100-200gf·cm
