SUNGMUN Korea · BCD Positive Code Output · IP67 Sealed · Reliable Position Selection for Industrial Control Boards
Pin Style: 3 Pairs × 3 (6 Pins)
Coding Type: Positive Code / BCD 8421
Protection Rating: IP67 (Dust & Water Proof)
Operating Temperature: -40℃ ~ +85℃
Rated Voltage: 42V DC
Body Size: 10 × 10 mm
Insulation Resistance: 100MΩ Min
Shaft: Shaftless, arrow-slot knob

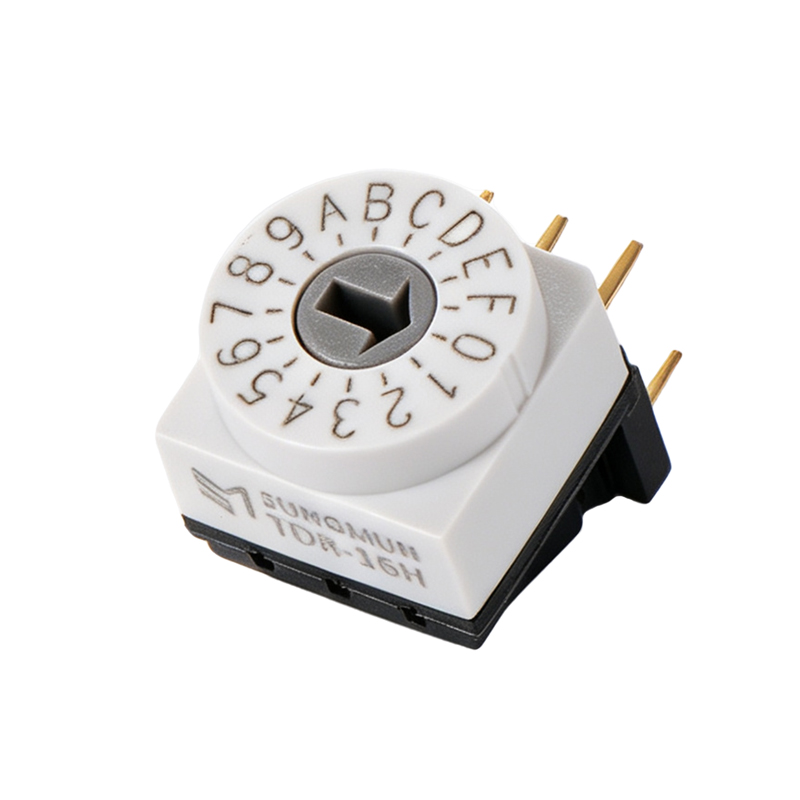

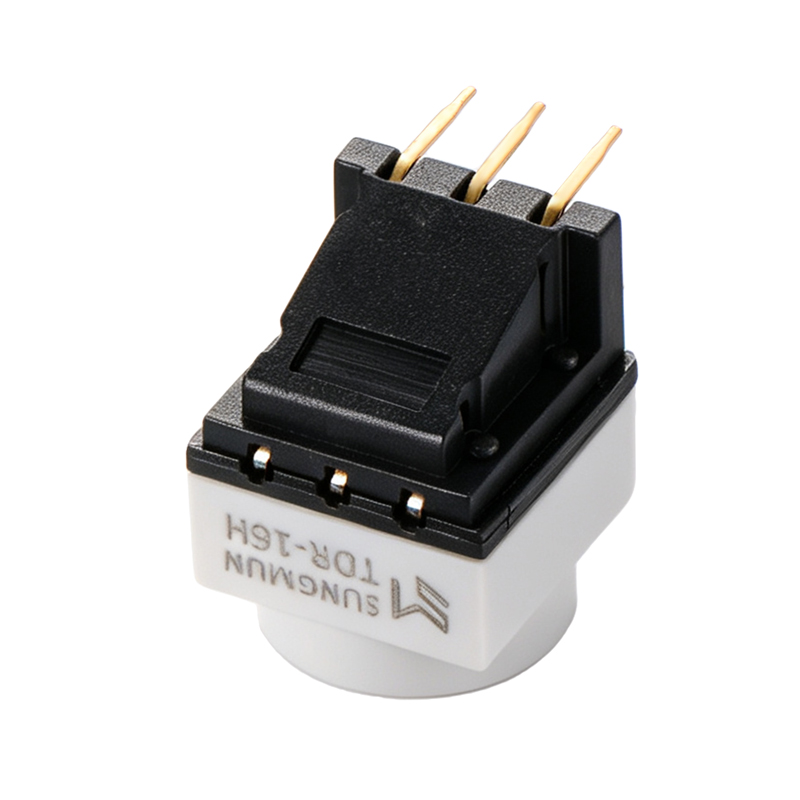

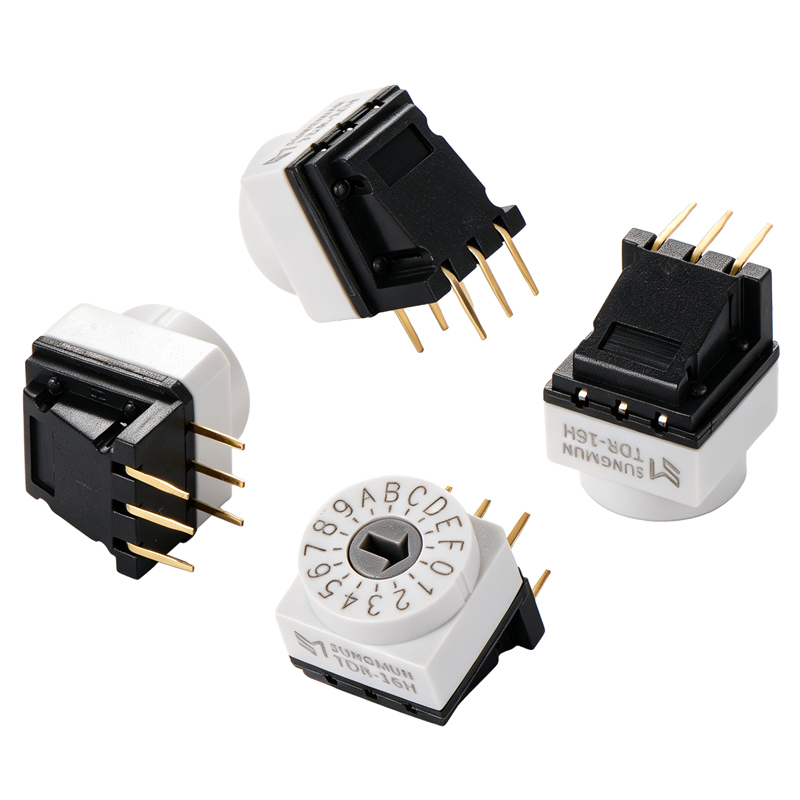

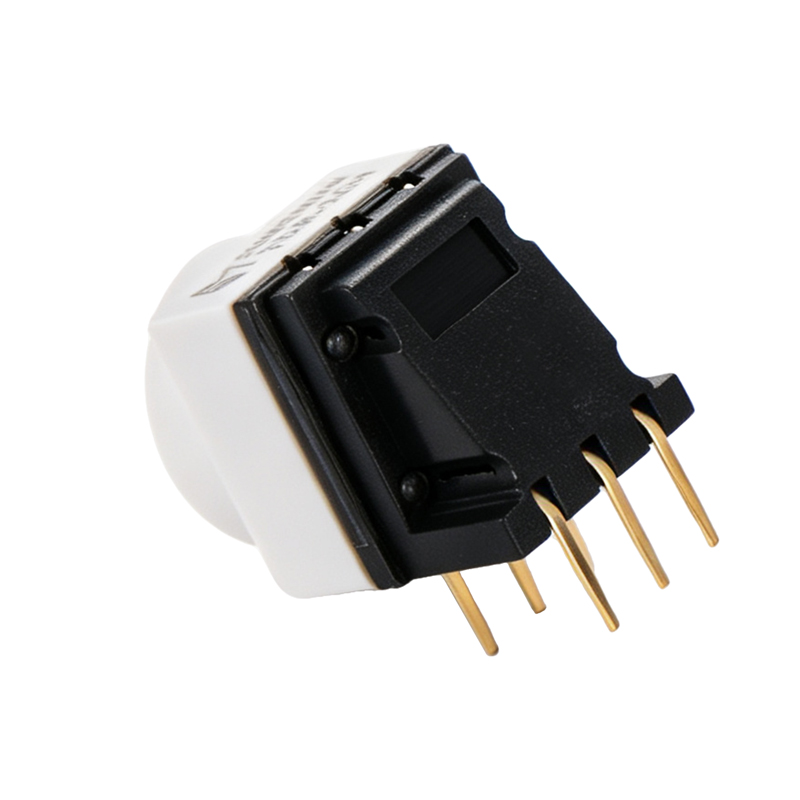

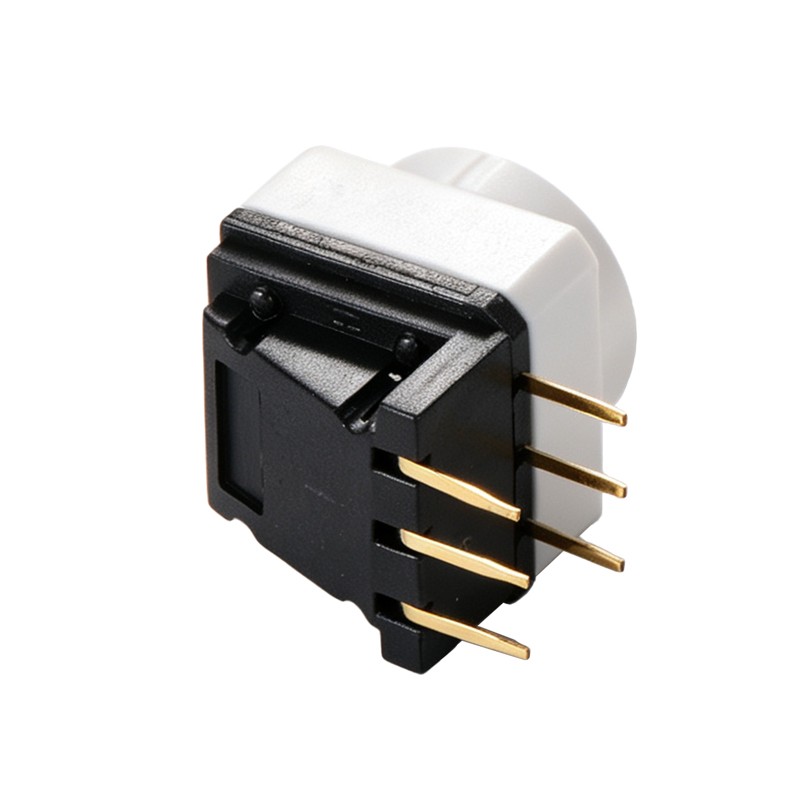

SUNGMUN TDR-16H is a 16-position rotary encoder switch from SUNGMUN (Korean Sungmoon Electronics), belonging to the T-series rotary DIP switch family. The product features a compact 10×10mm body design, right-angle THT mounting, and 5.08mm side-pin pitch, specifically engineered for industrial control equipment requiring reliable position switching.
The switch offers 16 positions (0-F), outputting Positive Code (BCD 8421) encoding signals. Users can set positions by rotating the arrow-slot knob. The product features a shaftless design with a maximum operating force of 700gf and clear, precise position detents. Contacts are gold-plated, with a maximum contact resistance of 80mΩ and a minimum insulation resistance of 100MΩ, ensuring long-term signal transmission stability.
The product carries an IP67 protection rating (dust and water proof), operates within a temperature range of -40℃ to +85℃, and offers a mechanical life of 10,000 rotational cycles. Rated voltage is 42V DC, rated current is 150mA (switching) / 200mA (non-switching), and the pin configuration is 3 pairs × 3 (6 pins). Packaging is 50 pcs/tube, using wave soldering process, and compliant with RoHS environmental standards.
Typical applications include inverters, industrial control boards, PLC and I/O terminal node address settings, automation equipment, and other scenarios requiring multi-position parameter settings or digital inputs. In inverter applications, the TDR-16H can be used for operation mode selection, parameter group switching, or frequency position setting. Its IP67 protection and wide-temperature design adapt to dust, moisture, and temperature fluctuations in industrial environments.
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 10×10mm Right Angle |  |
150mA, DC 42V (Switching)200mA, DC 42V (None-Switching) | 80mO Max | 10,000 steps | 700gf |
Request Samples
|
