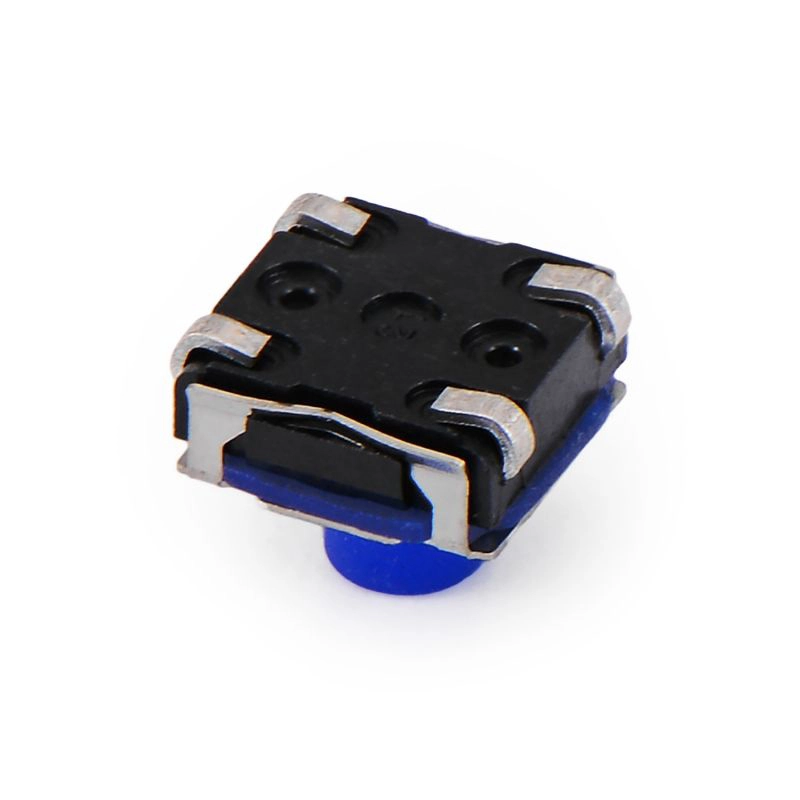

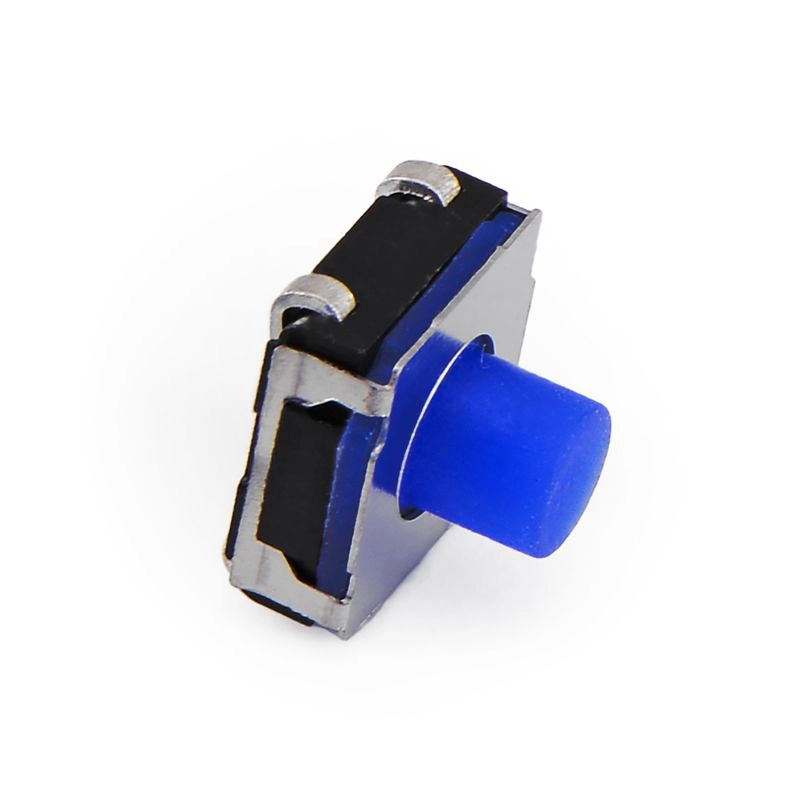

4p inner solder patch for tape packaging
Accurate tactile sensation
High reliability and long lifespan
Various foot types such as J, G, Crimped, and Straight in
Various operating forces
Compliant with RoHS standards
A touch switch is an ultra small switch that can switch circuits by lightly pressing a button. Mainly used in audio, computer, communication equipment, etc., it is the most widely used switch.
1.Rated value of switch operation: DC 12V 50mA (maximum value) DC 1V 1mA (minimum value)
2.Contact
Resistance≤100mΩ
3.Insulation Resistance≥100MΩ
4.Bounce ON-10ms max/OFF-10ms max
5.Operating
Force 350±100 gf
6.Full Travel 0.50±0.3mm
7.life ：100,000 次
fault-free life:100,000 cycles
8.Hand soldering ：≤350℃
Please practice according to below conditions:
(2) Soldering temperature: ≤350℃
(3) Continuous soldering time: ≤3 s
9.Conditions for
reflow
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |
| 6.2*6.2*5.1(mm)/ SD-T1266-05116M1 |  |
DC 12V 50mA (maximum value) DC 1V 1mA (minimum value) | Resistance≤100mΩ | life:100,000 cycles | Full Travel 0.50±0.3mm | Force 350±100 gf |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
