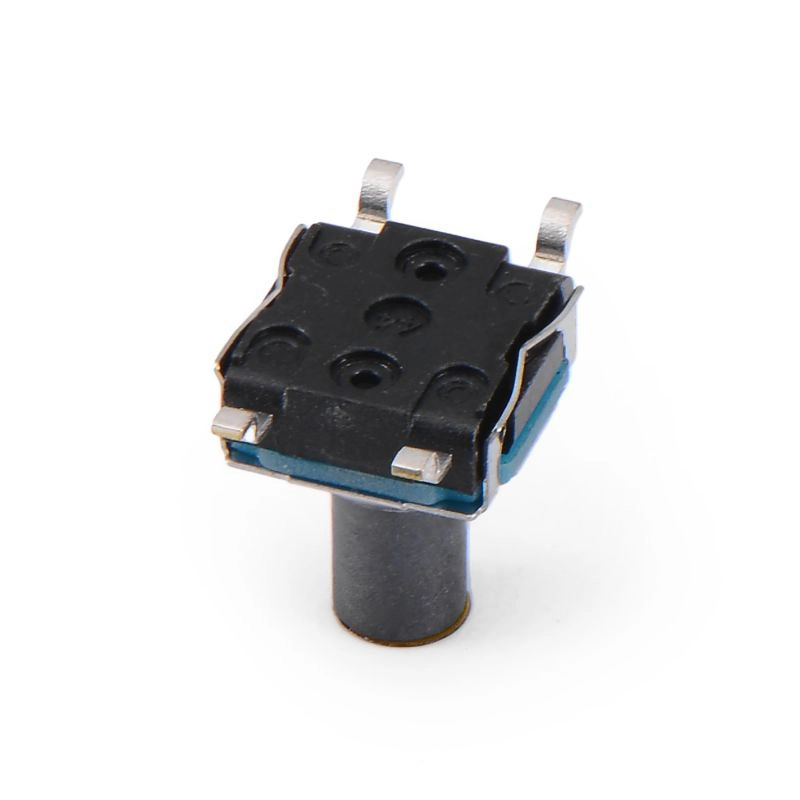

SD-FJ1266-A077 IP67 6.26.27.7Tact Switch Bonsda

4P SMT light touch switch with button handle for automatic SMT machine

Product Characteristics

Accurate tactile sensation

High reliability and long lifespan

Various foot types such as J, G, Crimped, and Straight in

Various operating forces

Compliant with RoHS standards

A touch switch is an ultra small switch that can switch circuits by lightly pressing a button. Mainly used in audio, computer, communication equipment, etc., it is the most widely used switch.

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

Verification code*

Overview

SPECIFICATION

1.Rating:DC 12V 50mA Max

2.Contact resistance: 100mΩ MAX

3.Insulation resistance: 100MΩ Min

4.Dielectric strength: 250VAC/min

5.Operating force: 250gf±80gf

6.Operating life: 300,000 cycles

Parameters

Specifications	Spes	Rated current	Contact resistance	Life cycles	Travel	Trip force	Request Samples
6.26.2 7.7/SD-FJ1266-A077		DC 12V 50mA Max	.Contact resistance: 100mΩ MAX	life:100,000 cycles	0.40 ± 0.20 mm	250±80gf	Request Samples
6.26.2 7.2/SD-FJ1266-A072		DC 12V 50mA Max	.Contact resistance: 100mΩ MAX	life:100,000 cycles	0.40 ± 0.20 mm	250±80gf	Request Samples
