SD-PS2003-34

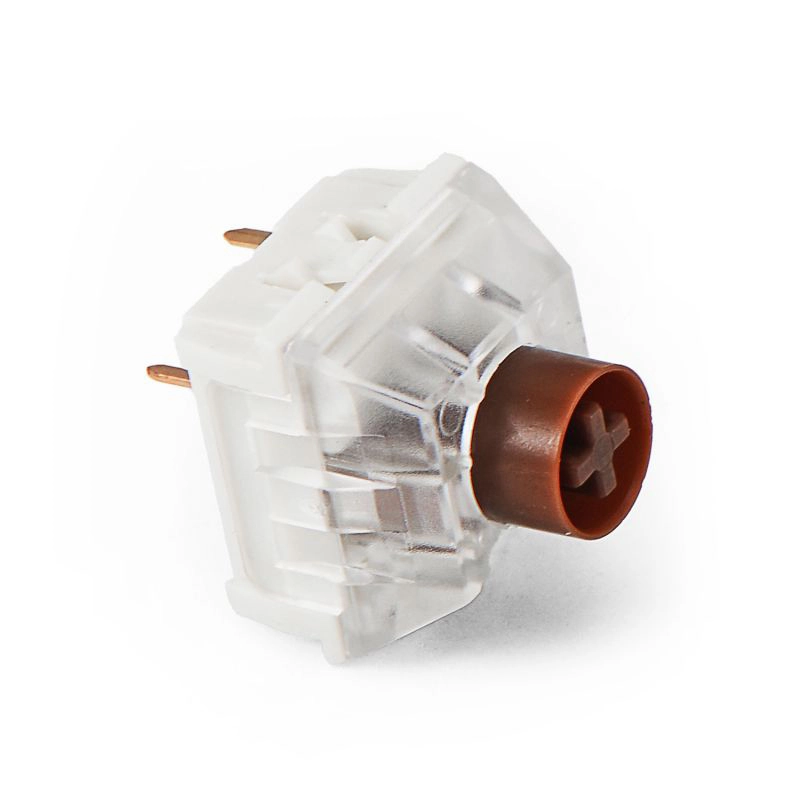

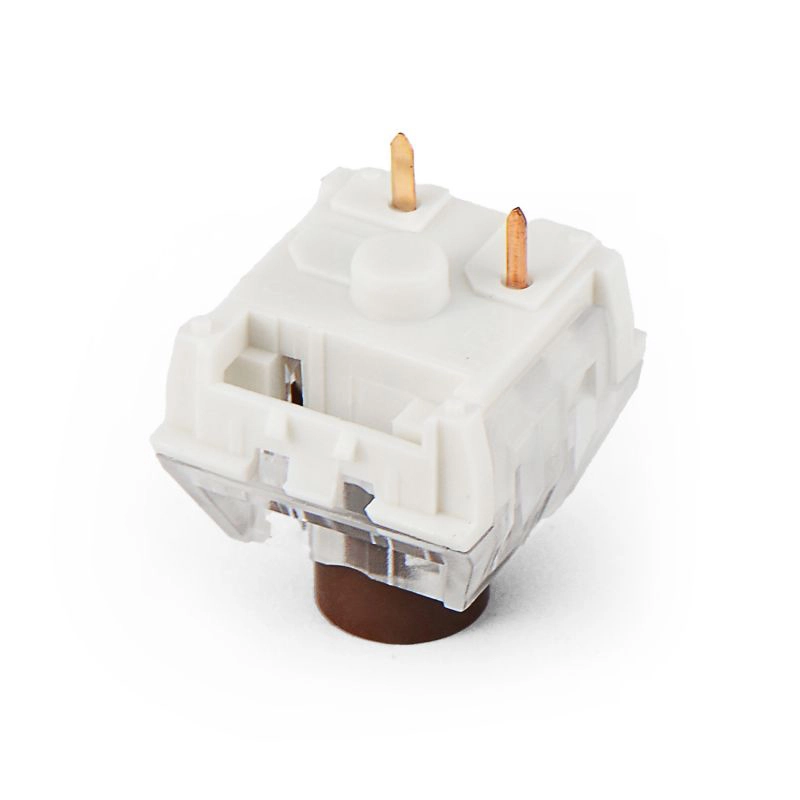

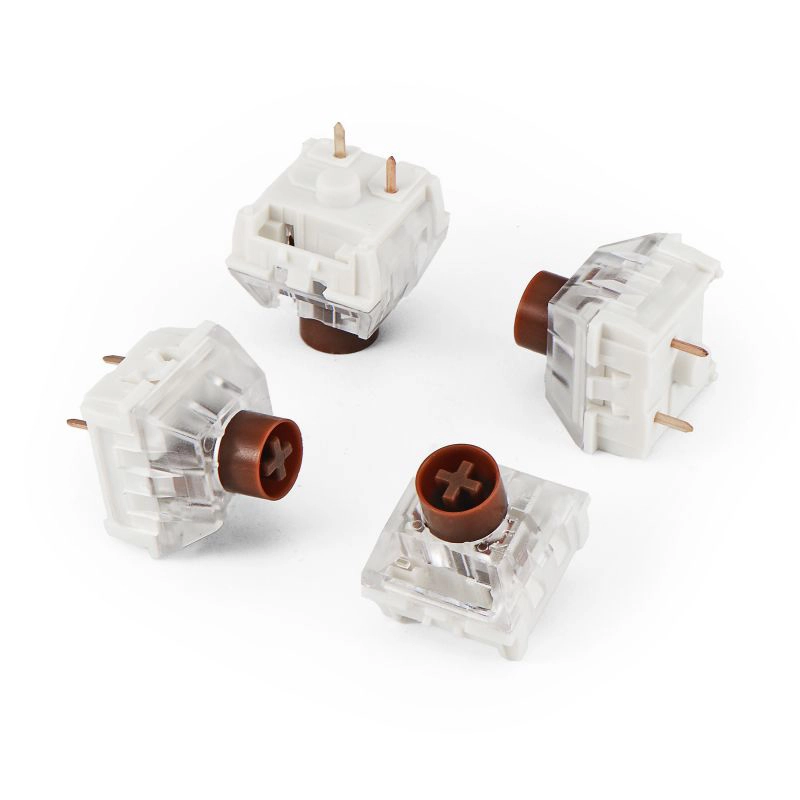

Mechanical Keyswitch (with tactile silent switch)

Product Characteristics

Normal Condition:

Ambient temperature ： 20±2℃

Relative humidity ： 65%±5% R.H.；

Air pressure ： 86~101KPa;

Ratings

Rating ： 12V AC/DC max. 2V DC min.

10mA AC/DC max. 10μA DC min；

Insulation Resistance ： ≥100MΩ/DC 100V;

Withstand Voltage ： 100 AC 1 Minute;

Mechanical Life ： 80,000,000 Cycles.

Online Message

After filling in your contact information, return to unlock the catalog and drawing download function.

Verification code*

Overview

Specification :

1. Rating: 12 VAC/DC max. 2 VDC min.

l0mA AC/DC max. 10 μ A DC min.

• 2. Contact Resistance: 200mQ Max

• 3. Insulation Resistance: 100M Q Min. (DC100V)

• 4.Withstand Voltage: AC100V(50 60Hz) for 1 minute

• 5. Operation Force: 50±10gf

• 6. Cond uction travel:2.0±0. 4mm

• 7. Total travel: 3. 60±0. 4mm

• 8. Electrical Life: 80,000,000 Cycles (min).

• 9. Degree of protection: IP54(excluding吐1e terminals)

, <Feel is allowed to have difference before and after life test>

Mainly applied on computer keyboards, cash registers, industrial equipment and Man-Machine

interface.

Parameters

Specifications	Spes	Rated current	Contact resistance	Life cycles	Travel	Trip force	Request Samples
15.6x15.6		10mA AC/DC max. 10μA DC min	200mΩ Max	80,000,000 Cycles	3.60±0.4	60±10gf	Request Samples
