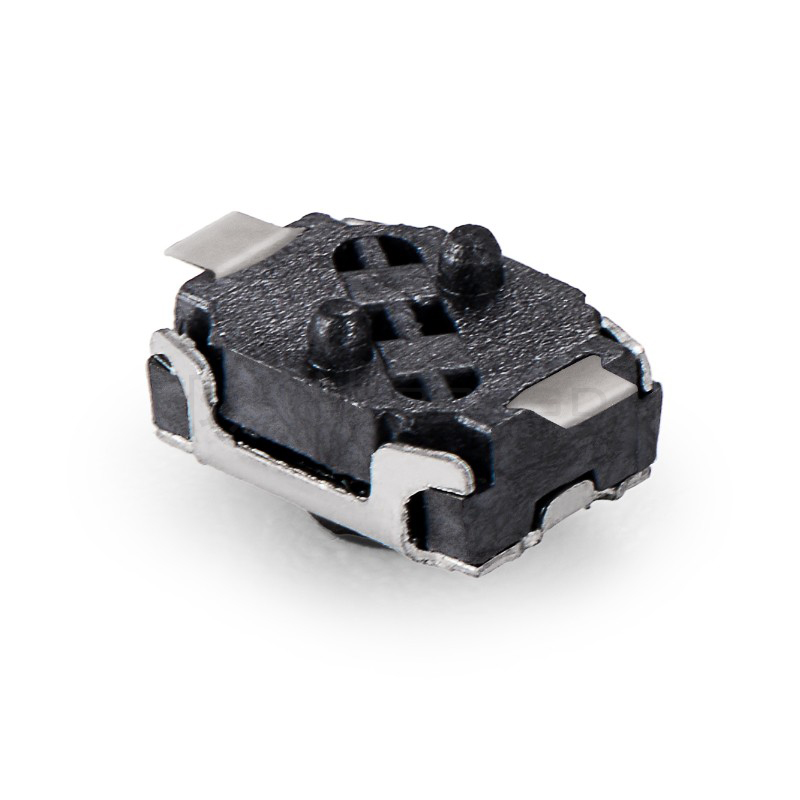

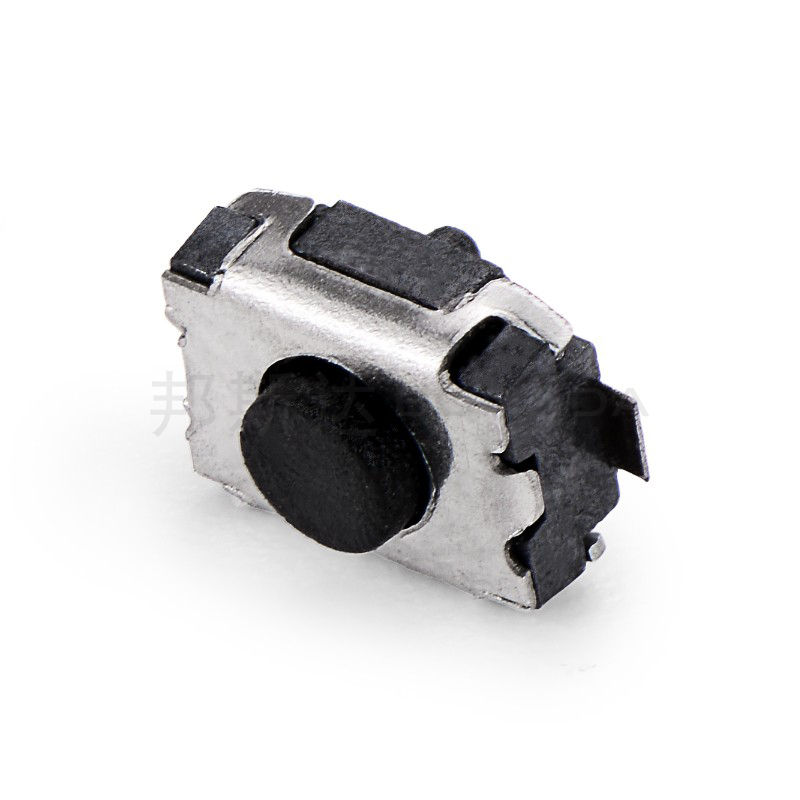

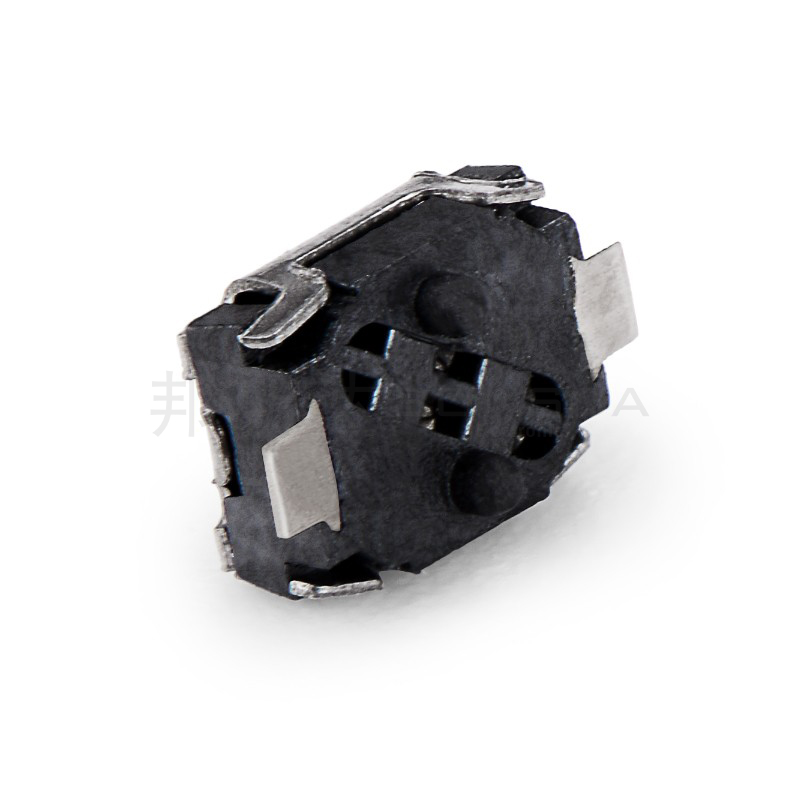

Sungmun 3.9 * 2.9 * 2.0 small turtle button switch with positioning column
3.9 * 2.9 * 2.0 small turtle button switch with positioning column The touch switch is an ultra small switch that can switch circuits with just a gentle press of a button. Mainly used for audio, computers, communication equipment, etc., it is the most widely used switch.
▲ Ultra small size
▲ Accurate tactile sensation
▲ High reliability and long lifespan
▲Various types of pins such as J, G, crimped, and straight insertion
▲ Various operating forces
▲ Compliant with RoHS standards
▲ Two pin SMT Tactouch Switch
SPECIFICATION
1. RATING : DC 12V 50mA
2. TRAVEL : 0.15±0.1mm
3. CONTACT RESISTANCE : 100m MAX.
4. BOUNCE : 10m SEC MAX.
5. OPERATING FORCE : 160±50gf
6. LIFE CYCLES : 100,000 CYCLE
| Specifications | Spes | Rated current | Contact resistance | Life cycles | Travel | Trip force | Request Samples |

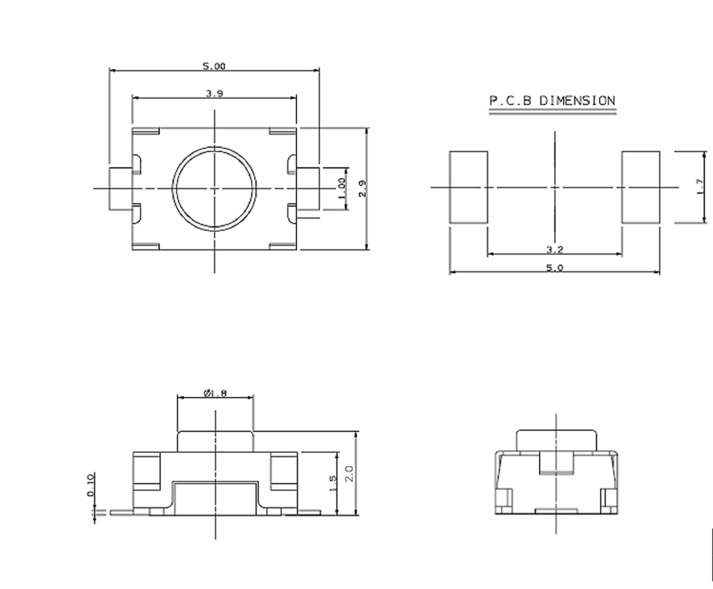

| 3.9mm*2.9mm*2.0mm |  |
DC 12V 50mA | 100m/MAX.10m SEC MAX. | 100,000 CYCLE | 0.15±0.1mm | 160±50gf |
Request Samples
|
Electronic switches are widely used in various fields, including home, business, automotive, electronics and industry.
